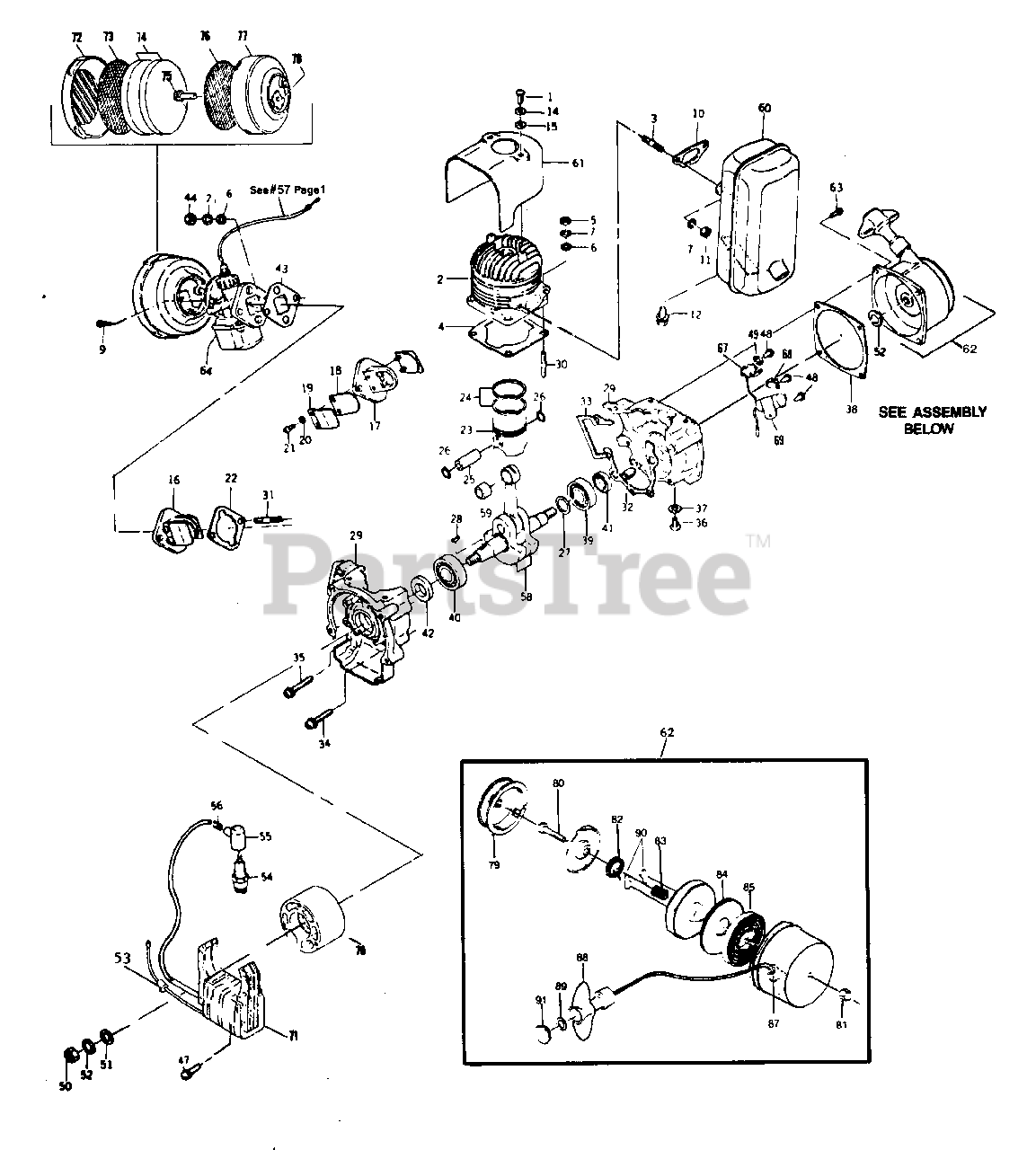

900 - Weed Eater Blower POWER UNIT Parts Diagram

Blower

POWER UNIT Parts Diagram

  • Title

1

Poulan 530089069

Screw, Pan-WS + -

$

$

Not available

2

Poulan 530089058

Cylinder

$

$

Not available

3

Poulan 530089059

Stud-Bolt

$

$

Not available

4

Poulan 530089061

Gasket, Cylinder

$

$

Not available

5

Poulan 530091516

Nut-Hex

$

$

Not available

6

Poulan 530089063

Washer-Plain-Small

$

$

Not available

7

Poulan 530089064

Lock Washer

$

$

Not available

9

Poulan 530089065

Screw, Pan

$

$

Not available

10

Poulan 530089066

Gasket

$

$

Not available

11

Poulan 530089067

Nut

$

$

Not available

12

Poulan 530089068

Bolt-Upset-WSP

$

$

Not available

14

Poulan 530089072

Washer

$

$

Not available

15

Poulan 530089071

Lock Washer

$

$

Not available

16

Poulan 530089073

Reed Valve Assembly

$

$

Not available

17

Poulan 530089074

Reed Valve Block

$

$

Not available

18

Poulan 530089075

Valve, Reed

$

$

Not available

19

Poulan 530089076

Plate

$

$

Not available

20

Poulan 530091623

Lock Washer

$

$

Not available

21

Poulan 530089077

Screw, Pan

$

$

Not available

22

Poulan 530089079

Gasket

$

$

Not available

23

Poulan 530089081

Piston

$

$

Not available

24

Poulan 530089082

Piston Ring Set

$

$

Not available

25

Poulan 530089083

Pin, Piston

$

$

Not available

26

Poulan 530089084

Ring, Snap

$

$

Not available

27

Poulan 530089085

Shim

$

$

Not available

27

Poulan 530089086

Shim

$

$

Not available

27

Poulan 530089087

Shim

$

$

Not available

27

Poulan 530089088

Shim

$

$

Not available

28

Poulan 530089089

Key

$

$

Not available

29

Poulan 530089091

Crankcase Assembly

$

$

Not available

30

Poulan 530089092

Stud

$

$

Not available

31

Poulan 530089093

Stud

$

$

Not available

32

Poulan 530089094

Pin, Dowel

$

$

Not available

33

Poulan 530089095

Gasket

$

$

Not available

34

Poulan 530089096

Screw, Pan-WSP + -

$

$

Not available

35

Poulan 530089097

Screw

$

$

Not available

36

Poulan 530089098

Screw, Pan

$

$

Not available

37

Poulan 530089099

Gasket

$

$

Not available

38

Poulan 530089101

Gasket

$

$

Not available

39

Poulan 530089102

Bearing, Ball

$

$

Not available

40

Poulan 530089103

Bearing, Ball

$

$

Not available

41

Poulan 530089104

Seal, Oil

$

$

Not available

42

Poulan 530089105

Seal, Oil

$

$

Not available

43

Poulan 530089106

Gasket

$

$

Not available

44

Poulan 530091516

Nut

$

$

Not available

47

Poulan 530089107

Screw, Pan-WS + -

$

$

Not available

48

Poulan 530089108

Screw, Pan-WS + - Lock & Plain

$

$

Not available

49

Poulan 530089109

Washer

$

$

Not available

50

Poulan 530089111

Nut

$

$

Not available

51

Poulan 530089112

Washer

$

$

Not available

52

Poulan 530089113

Lock Washer

$

$

Not available

53

Poulan 530089114

Grommet

$

$

Not available

54

Poulan 530089115

Plug, Spark

$

$

Not available

55

Poulan 530089116

Cap, Plug

$

$

Not available

56

Poulan 530089117

Spring, Cap

$

$

Not available

58

Poulan 530089118

Crankshaft Assembly

$

$

Not available

59

Poulan 530093024

Bearing

$

$

Not available

60

Poulan 530089121

Muffler Assembly

$

$

Not available

61

Poulan 530089122

Cover, Cylinder

$

$

Not available

62

Poulan 530093025

Recoil Starter Assembly

$

$

Not available

63

Poulan 530089123

Screw, Pan-WS + -

$

$

Not available

64

Poulan 530089124

Carburetor Assembly

$

$

Not available

67

Poulan 530089149

Breaker

$

$

Not available

68

Poulan 530089151

Felt, Cam

$

$

Not available

69

Poulan 530089148

Condenser

$

$

Not available

70

Poulan 530089147

Rotor

$

$

Not available

71

Poulan 530089146

Coil, Ignition

$

$

Not available

72

Poulan 530089155

Cap, Air Cleaner

$

$

Not available

73

Poulan 530089156

Net (1)

$

$

Not available

74

Poulan 530089153

Element

$

$

Not available

75

Poulan 530089158

Screw - Pan-WS-Lock & Plain Washer

$

$

Not available

76

Poulan 530089157

Net (2)

$

$

Not available

77

Poulan 530089152

Case, Air Cleaner

$

$

Not available

78

Poulan 530089154

Plate

$

$

Not available

79

Poulan 530089172

Pulley

$

$

Not available

80

Poulan 530089165

Screw

$

$

Not available

81

Poulan 530089171

Nut

$

$

Not available

82

Poulan 530089164

Ratchet Spring

$

$

Not available

83

Poulan 530089162

Spring, Return

$

$

Not available

84

Poulan 530089161

Reel

$

$

Not available

85

Poulan 530089159

Spring, Spiral

$

$

Not available

87

Poulan 530089166

Guide, Rope

$

$

Not available

88

Poulan 530089168

Handle

$

$

Not available

89

Poulan 530089173

Washer

$

$

Not available

90

Poulan 530089163

Ratchet

$

$

Not available

91

Poulan 530089169

Cap, Handle

$

$

Not available
