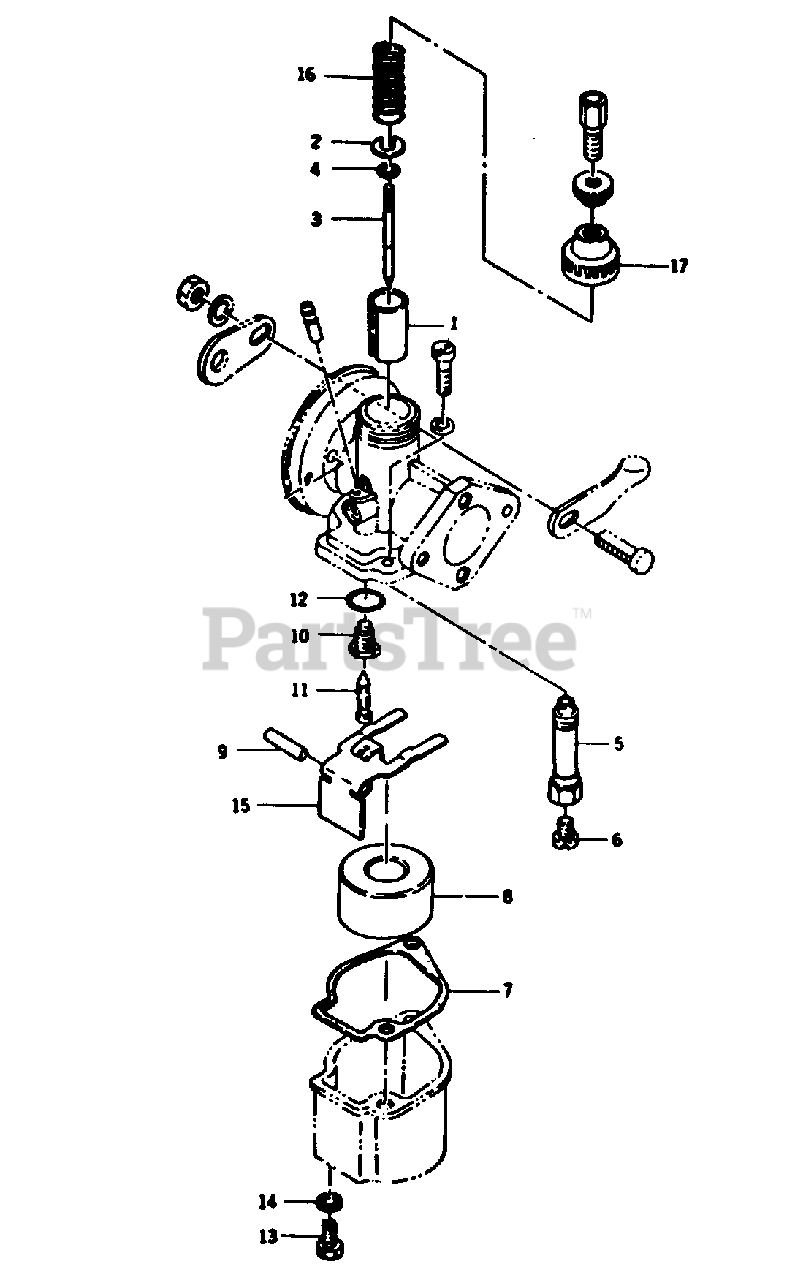

900 - Weed Eater Blower CARBURETOR Parts Diagram

Blower

CARBURETOR Parts Diagram

  • Title

1

Poulan 530089125

Valve, Throttle

$

$

Not available

2

Poulan 530089126

Receive

$

$

Not available

3

Poulan 530089127

Jet, Needle

$

$

Not available

4

Poulan 530089128

Clip, Needle

$

$

Not available

5

Poulan 530089129

Jet, Needle

$

$

Not available

6

Poulan 530089131

Jet, Main 80

$

$

Not available

7

Poulan 530089132

Gasket

$6.49

$

Usually ships in 3-10 days

0

8

Poulan 530089133

Float

$

$

Not available

9

Poulan 530089134

Pin, Float

$

$

Not available

10

Poulan 530089135

Seat, Needle

$10.99

$

Usually ships in 3-10 days

0

11

Poulan 530089136

Valve, Needle

$

$

Not available

12

Poulan 530089137

Gasket

$

$

Not available

13

Poulan 530089138

Screw, Drain

$

$

Not available

14

Poulan 530089139

Gasket

$

$

Not available

15

Poulan 530089141

Hinge, Float

$

$

Not available

16

Poulan 530093027

Spring, Throttle

$

$

Not available

17

Poulan 530089143

Cap, Body

$

$

Not available
