900 - Weed Eater Blower BLOWER ASSEMBLY Parts Diagram

Blower

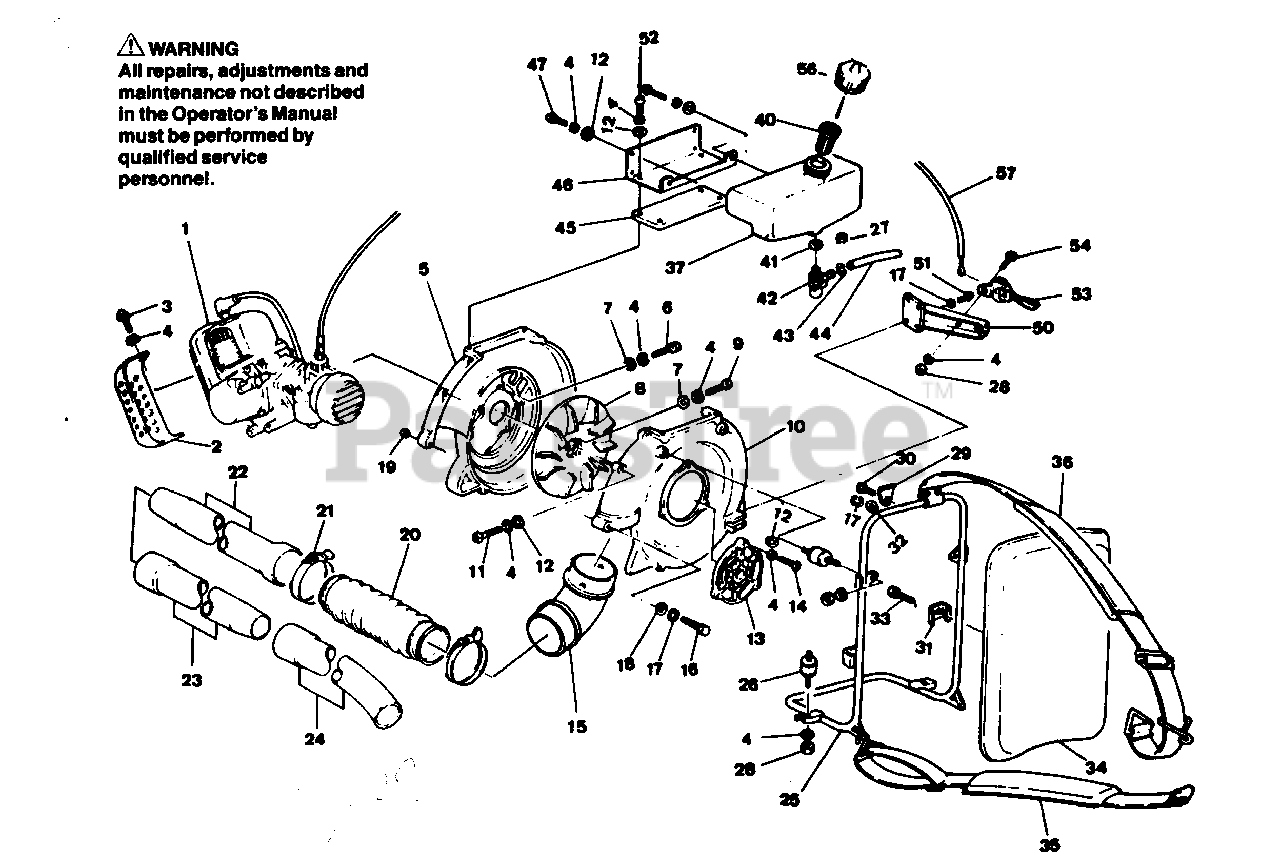

BLOWER ASSEMBLY Parts Diagram

  • Title
1

Model KT28 Engine

$

$

Not available

2

Poulan 530089001

Muffler Cover

$

$

Not available

$

$

Not available

4

Poulan 530089003

Lock Washer

$

$

Not available

5

Poulan 530089004

Fan Case (Rear)

$

$

Not available

$

$

Not available

7

$

$

Not available

$

$

Not available

$

$

Not available

10

Poulan 530089009

Fan Case (Front)

$

$

Not available

11

$

$

Not available

12

$

$

Not available

13

$

$

Not available

14

$

$

Not available

15

Poulan 530089015

Spray Bent Pipe

$

$

Not available

$

$

Not available

17

Poulan 530091623

Lock Washer

$

$

Not available

18

$

$

Not available

$

$

Not available

20

Poulan 530089021

Flexible Pipe

$

$

Not available

21

Poulan 530089022

Wire Clamp

$

$

Not available

22

Poulan 530089023

Base Pipe

$

$

Not available

23

Poulan 530094301

Duster Middle Pipe

$

$

Not available

24

Poulan 530089025

Duster Base Pipe

$

$

Not available

25

Poulan 530089026

Knapsack Frame

$

$

Not available

26

Poulan 530089027

Isolator

$

$

Not available

27

Poulan 530089028

Washer Based Nut

$

$

Not available

$

$

Not available

29

Poulan 530089031

Back Plate Fitting (A)

$

$

Not available

$

$

Not available

31

Poulan 530089033

Back Plate Fitting (B)

$

$

Not available

32

$

$

Not available

$

$

Not available

34

Poulan 530089036

Back Plate

$

$

Not available

35

Poulan 530089037

Knapsack Belt (Right)

$

$

Not available

36

Poulan 530089038

Knapsack Belt (Left)

$

$

Not available

37

Poulan 530089039

Fuel Tank

$

$

Not available

40

Poulan 530089041

Strainer

$

$

Not available

41

Poulan 530089042

Seal Washer

$

$

Not available

42

Poulan 530089043

Fuel Cock

$

$

Not available

43

Poulan 530089044

Clamp Ring

$

$

Not available

44

Poulan 530089045

Vinyl Pipe

$

$

Not available

45

Poulan 530089046

Isolator

$

$

Not available

46

$

$

Not available

47

$

$

Not available

50

Poulan 530089048

Supporter, Graduation Plate

$

$

Not available

51

$

$

Not available

52

$

$

Not available

53

Poulan 530089052

Throttle Lever

$

$

Not available

54

$

$

Not available

56

Poulan 530089055

Fuel Cap Assembly

$

$

Not available

57

Poulan 530089056

Throttle Cable

$

$

Not available
