900/27 (1695719) - Murray 27" Snow Thrower, 9hp (2009) Traction Drive Group Parts Diagram

27" Snow Thrower, 9hp

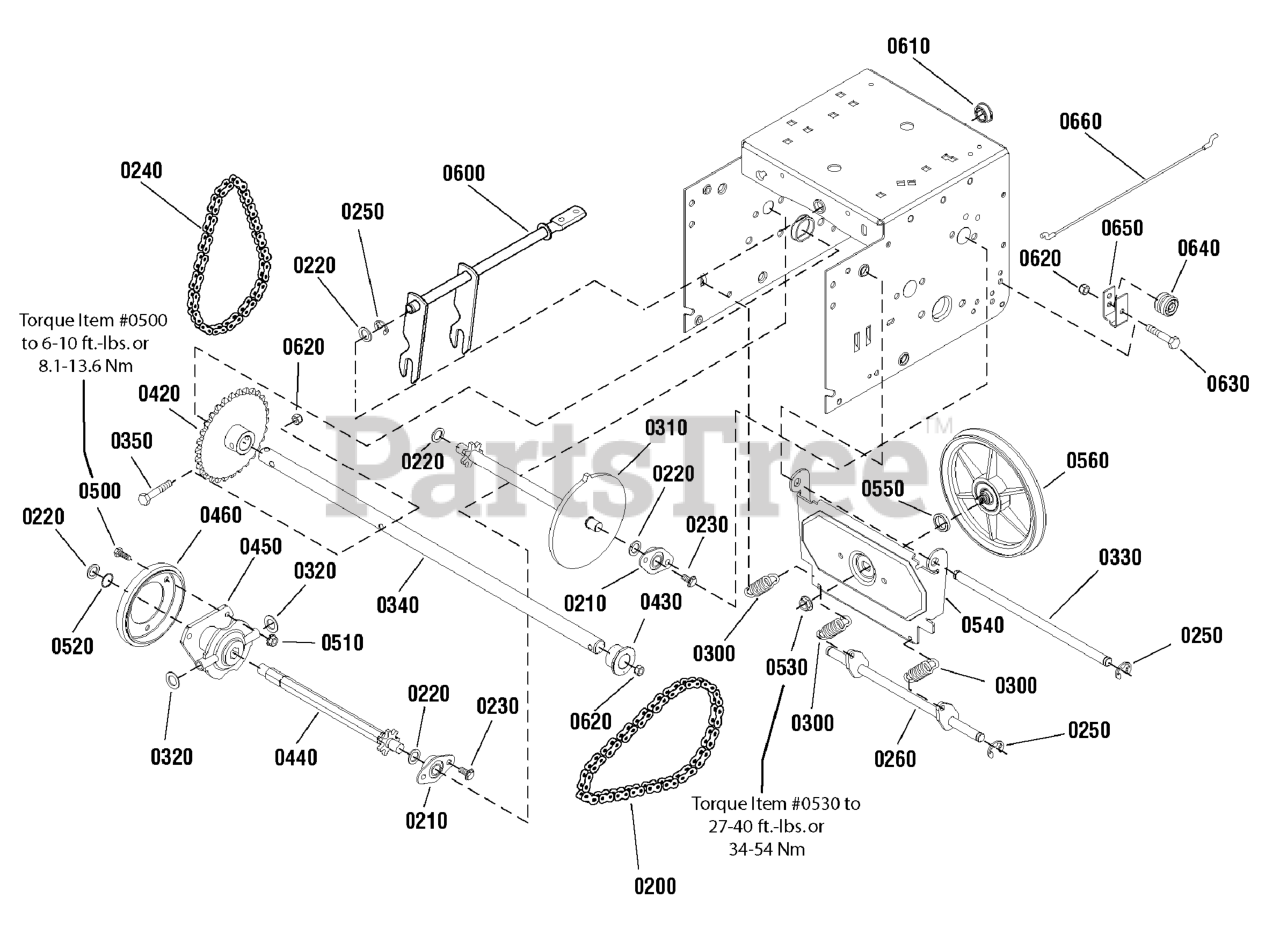

Traction Drive Group Parts Diagram

  • Title

0200

Murray 579851MA

CHAIN, Roller

$21.99

$

In Stock, Qty 15

0

0210

Murray 334163MA

RETAINER & BUSHING ASSEMBLY

$11.99

$

In Stock, only 4 left!

0

0220

Murray 579858MA

WASHER

$4.49

$

In Stock, Qty 20+

0

0230

Murray 1924856SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

0240

Murray 579868MA

CHAIN, Roller

$20.99

$

In Stock, Qty 17

0

0250

Murray 11X30MA

RETAINER, Ring 7/16

$4.49

$

In Stock, Qty 11

0

0260

Murray 1502105YZMA

SPRING LINK ASSEMBLY

$33.99

$

Usually ships in 2-12 days

0

0300

Murray 1736469YP

SPRING, Extension

$6.99

$

In Stock, Qty 20+

0

0310

Murray 1501090MA

SPROCKET, Set
(Superseded to 1501237MA)

$80.99

$

In Stock, only 3 left!

0

0320

Murray 1960027SM

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0330

Murray 1501092YZMA

AXLE, Swing Plate

$12.99

$

Usually ships in 2-12 days

0

0340

Murray 1501563MA

AXLE, Bushing
(Superseded to 1501563YZMA)

$69.99

$

In Stock, only 4 left!

0

0350

Murray 01X193MA

BOLT, Hex, 1/4-20 x 1-3/4, G8
(Superseded to 704212)

$5.49

$

In Stock, Qty 20+

0

0420

Murray 1501089MA

SPROCKET, Axle

$42.99

$

In Stock, Qty 7

0

0430

Murray 1501114MA

BEARING, Axle D-Hole

$11.99

$

In Stock, Qty 20+

0

0440

Murray 1501100MA

HEX SHAFT & SPROCKET ASSEMBLY

$

$

Not available

0450

Murray 337029MA

HUB, Friction Wheel & Bearing
(Superseded to 1739282YP)

$39.99

$

In Stock, Qty 5

0

0460

Murray 1501435MA

WHEEL, Friction

$27.99

$

In Stock, Qty 20+

0

0500

Murray 1921959SM

CAPSCREW, Hex Head 1/4-20 x 5/8, G5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

0510

Murray 1928372SM

NUT, Hex, KEPS, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 14

0

0520

Murray 1733326SM

RING, Retaining Extension

$4.49

$

In Stock, only 1 left!

0

0530

Murray 15X114MA

NUT, Flange Lock, 3/8-24

$4.49

$

Usually ships in 2-12 days

0

0540

Murray 1501057YZMA

PLATE, Swinging

$37.99

$

In Stock, only 1 left!

0

0550

Murray 1501158MA

SPACER, Friction Pulley

$4.99

$

In Stock, Qty 10

0

0560

Murray 1501115MA

FRICTION PULLEY ASSEMBLY

$

$

Not available

0600

Murray 1501085YZMA

SPEED SELECT ASSEMBLY

$40.99

$

Usually ships in 2-12 days

0

0610

Murray 579944MA

BEARING, Flange

$15.99

$

Usually ships in 2-12 days

0

0620

Murray 1920397SM

NUT, Hex Lock, ESNA Light, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0630

Murray 1922837SM

CAPSCREW, Hex Head, 1/4-20 x 1-1/2, G5
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

0640

Murray 579860MA

SPOOL CABLE, Auger Control

$5.99

$

In Stock, Qty 7

0

0650

Murray 1501059YZMA

BRACKET, Cable Spool

$3.49

$

In Stock, only 1 left!

0

0660

Murray 1501122MA

CABLE, Front Drive Lower, All

$8.49

$

In Stock, Qty 9

0
