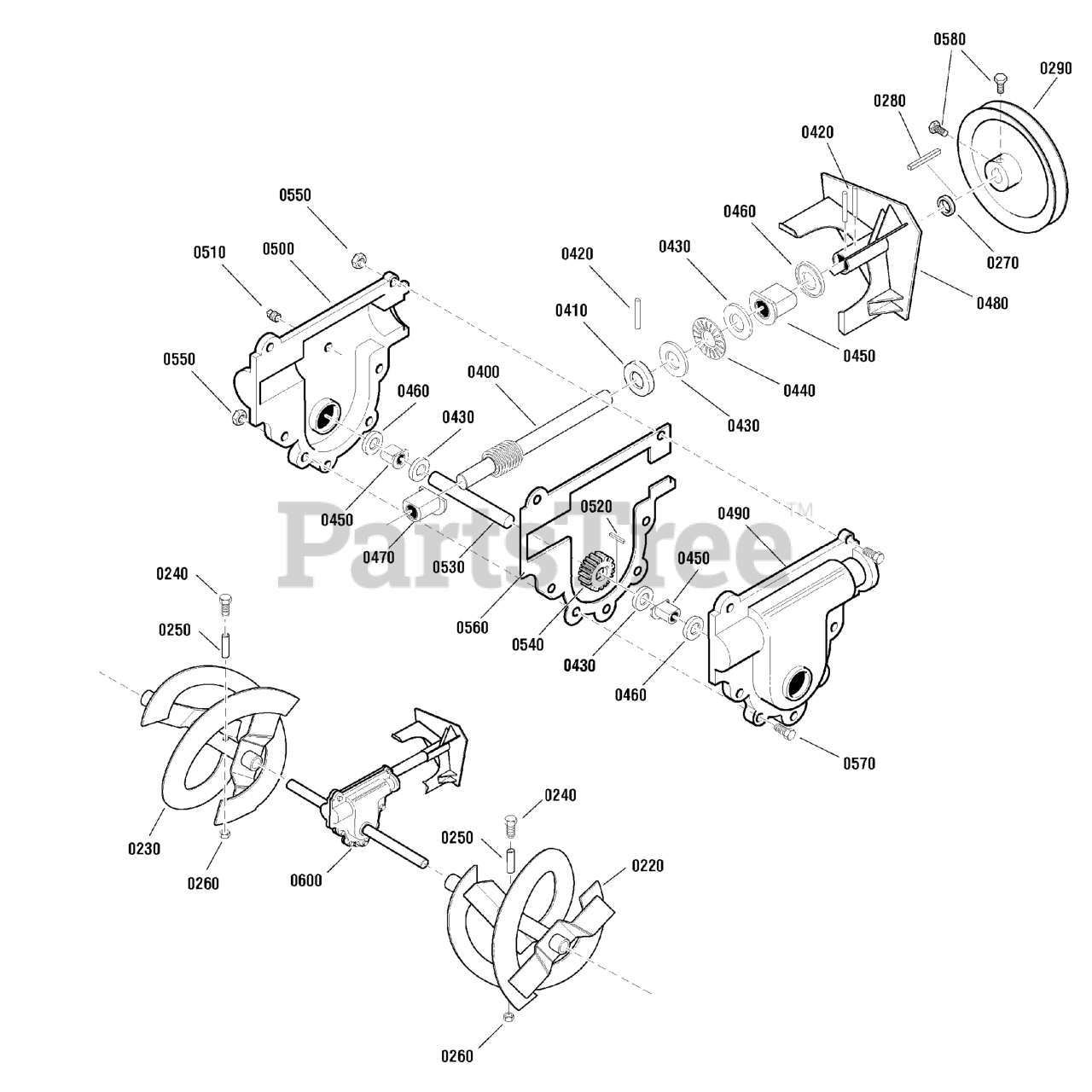

900/27 (1695719) - Murray 27" Snow Thrower, 9hp (2009) Auger Drive Group Parts Diagram

27" Snow Thrower, 9hp

Auger Drive Group Parts Diagram

  • Title
0220

Murray 729053BJYP

ASSEMBLY, Auger, 27, LH

$145.99

$

Usually ships in 2-12 days

0

0230

Murray 729054BJYP

ASSEMBLY, Auger, 27, RH

$

$

Not available

0240

Murray 9524MA

SCREW, 1/4-20 X 1.75
(Superseded to 703057)

$5.99

$

In Stock, only 3 left!

0

0250

Murray 3943MA

SPACER, SLEEVE
(Superseded to 703058)

$7.49

$

In Stock, only 4 left!

0

0260

Murray 73826MA

NUT, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

0270

Murray 1501158MA

SPACER, FRICTION PULLEY

$4.99

$

In Stock, Qty 10

0

0280

Murray 2001022MA

KEY, SQUARE 3/16 X 3/4

$4.49

$

In Stock, Qty 11

0

0290

Murray 1501211MA

PULLEY, 4L 8.4 X .67

$71.99

$

In Stock, only 3 left!

0

0400

Murray 1501191MA

SHAFT, INPUT

$75.99

$

In Stock, only 2 left!

0

0410

Murray 580295MA

COLLAR, Thrust, .3/4 x 1-1/4

$22.99

$

Usually ships in 2-12 days

0

0420

Murray 454565MA

PIN, Spring, 1/4 x 1-1/4

$

$

Not available

0430

Murray 48275MA

WASHER, FLANGE

$6.49

$

In Stock, only 4 left!

0

0440

Murray 50684MA

Bearing, Roll, 3/4ID x 1-1/4OD

$6.49

$

In Stock, only 4 left!

0

0450

Murray 50304MA

Bearing, Flange, 3/4ID x 1OD

$8.49

$

In Stock, Qty 14

0

0460

Murray 9566MA

SEAL, OIL

$12.99

$

In Stock, only 3 left!

0

0470

Murray 50221MA

BEARING, FLANGE

$8.49

$

In Stock, only 4 left!

0

0480

Murray 1740929AYP

IMPELLER ASSEMBLY

$359.99

$

Usually ships in 2-12 days

0

0490

Murray 10576MA

CASE, GEAR, LH

$22.99

$

In Stock, Qty 5

0

0500

Murray 10577MA

CASE, GEAR, RH

$22.99

$

In Stock, only 1 left!

0

0510

Murray 9344MA

SCREW, 3/8-16 X .50
(Superseded to 704213)

$5.49

$

In Stock, only 1 left!

0

0520

Murray 431787MA

KEY, WOODRUFF
(Superseded to 703891)

$4.99

$

In Stock, Qty 18

0

0530

Murray 1501307MA

SHAFT, OUTPUT

$68.99

$

Usually ships in 2-12 days

0

0540

Murray 51405MA

GEAR, WORM

$78.99

$

In Stock, only 1 left!

0

0550

Murray 15X143MA

NUT, CNTRLK 1/4-20

$4.99

$

In Stock, Qty 13

0

0560

Murray 51279MA

GASKET, GEAR BOX

$12.99

$

In Stock, Qty 10

0

0570

Murray 710025MA

SCREW, 1/4 - 20 x 3/4

$4.49

$

Usually ships in 2-12 days

0

0580

Murray 577400MA

SCREW, 5/16-18 x 0.63

$4.99

$

Usually ships in 2-12 days

0

0600

Murray 1738608YP

COMPLETE GEAR CASE ASSEMBLY

$

$

Not available
