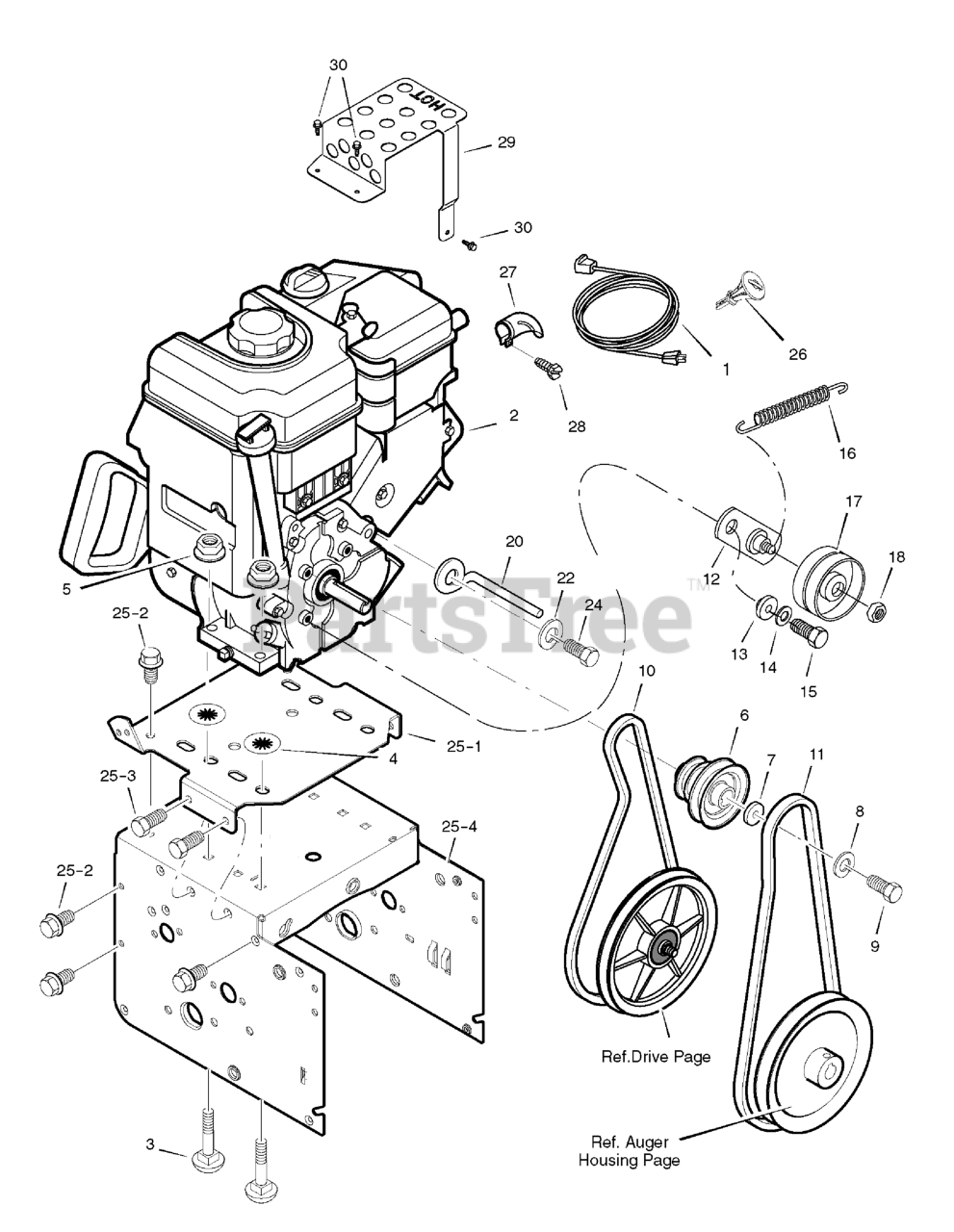

900/26 (1695459) - Murray Ultra 26" Snow Thrower (2007) Engine Parts Diagram

Ultra 26" Snow Thrower

Engine Parts Diagram

  • Title

1

Murray 6219MA

CORD, Electric, 10FT. 110V

$40.99

$

In Stock, only 3 left!

0

2

ENGINE

Note: (Model# 12D1140118E1/E8)

$

$

Not available

3

Murray 002X97MA

BOLT, Carriage
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

4

Murray 028X76MA

RETAINER, Push

$4.49

$

Usually ships in 2-12 days

0

5

Murray 710026MA

NUT
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

6

Murray 1501109MA

PULLEY, Engine

$41.99

$

In Stock, Qty 7

0

7

Murray 17X170MA

WASHER

$

$

Not available

8

Murray 17X146MA

WASHER, Flat

$5.49

$

Usually ships in 2-12 days

0

9

Murray 910828MA

BOLT, Hex 5/16-24 x 1
(Superseded to 703301)

$3.99

$

Usually ships in 2-12 days

0

10

Murray 579932MA

V-BELT, Drive, 4L
(Superseded to 1733324SM)

$19.99

$

In Stock, Qty 20+

0

11

Murray 37X120MA

V-BELT, Auger, 3L

$22.99

$

In Stock, Qty 15

0

12

Murray 1501112YZMA

BRACKET ASSEMBLY, Idler
(Superseded to 1687797YP)

$8.49

$

In Stock, Qty 8

0

13

Murray 1501065MA

BUSHING, Idler Bracket

$5.49

$

In Stock, Qty 6

0

14

Murray 71060MA

WASHER, Split
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

Murray 710097MA

SCREW, 5/16-24 x 3/4

$4.49

$

Usually ships in 2-12 days

0

16

Murray 53704MA

SPRING, Idler Traction Drive

$8.49

$

In Stock, only 4 left!

0

17

Murray 1502120MA

PULLEY, Idler

$21.99

$

In Stock, Qty 16

0

18

Murray 590MA

NUT, Jam, 3/8 - 16
(Superseded to 703996)

$4.99

$

In Stock, Qty 11

0

20

Murray 1501201MA

GUIDE, Rod Belt
(Superseded to 1739070YP)

$7.99

$

In Stock, Qty 5

0

22

Murray 71060MA

WASHER
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

24

Murray 710097MA

SCREW

$4.49

$

Usually ships in 2-12 days

0

25

FRAME ASSEMBLY

$

$

Not available

25-1

Murray 1501062E511MA

PLATE, Engine

$61.99

$

Usually ships in 2-12 days

0

25-2

Murray 310169MA

SCREW
(Superseded to 703054)

$4.49

$

In Stock, Qty 9

0

25-3

Murray 25X020MA

SCREW

$4.99

$

In Stock, Qty 6

0

25-4

Murray 1501050E511MA

MOTOR BOX

$222.99

$

Usually ships in 2-12 days

0

26

Murray 794696

KEY, Briggs Engine

$7.49

$

In Stock, Qty 20+

0

27

Murray 697816

DEFLECTOR, Muffler

$16.99

$

Usually ships in 2-12 days

0

28

Murray 810140MA

SCREW

$3.49

$

Usually ships in 2-12 days

0

29

Murray 1734732SM

HEAT SHIELD, Muffler

$20.99

$

Usually ships in 2-12 days

0

30

Murray 1929477SM

SCREW

$4.49

$

Usually ships in 2-12 days

0

--

Murray 1735763

OWNER'S MANUAL

$

$

Currently unavailable
