9-26 - Husqvarna 26" Snow Blower (1997-10) CONTROL PANEL & DISCHARGE CHUTE 2 Parts Diagram

26" Snow Blower

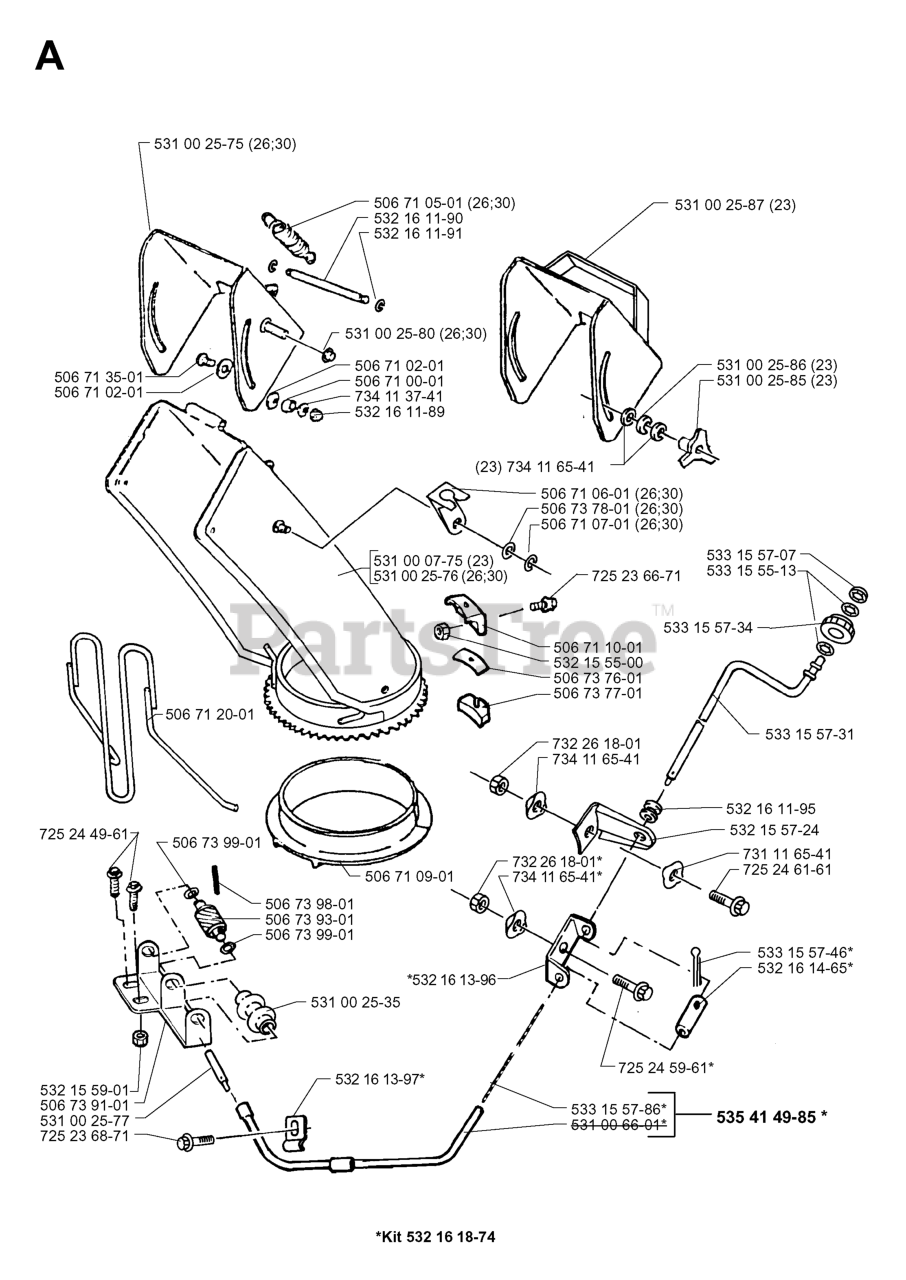

CONTROL PANEL & DISCHARGE CHUTE 2 Parts Diagram

  • Title
506 71 09-01

Husqvarna 506710901

FLANGE PLASTIC - CHUTE ROTATE

$

$

Not available

533 15 55-13

$

$

Not available

506 71 07-01

Husqvarna 506710701

SNAP RING E

Note: 26

$

$

Not available

506 71 02-01

Husqvarna 506710201

WASHER NYLON

$

$

Not available

506 71 06-01

Husqvarna 506710601

BRACKET

Note: 26

$

$

Not available

732 26 18-01

Husqvarna 732261801

NUT

Note: KIT 532 16 18-74

$

$

Not available

725 23 68-71

Husqvarna 725236871

BOLT FLANGE - M6X20

$4.99

$

In Stock, only 4 left!

0

734 11 65-41

Husqvarna 734116541

WASHER - 25X8.5X2.3

Note: KIT 532 16 18-74

$5.99

$

Usually ships in 3-10 days

0

506 71 00-01

$

$

Not available

531 00 25-35

Husqvarna 531002535

COVER WORM CRAND - RUBBER

$

$

Not available

532 16 11-91

$

$

Not available

533 15 57-07

Husqvarna 533155707

AXLE CAP, 1/2" ID

$

$

Not available

506 73 99-01

Husqvarna 506739901

WASHER - WAVE SPRING M14

$

$

Not available

506 73 98-01

Husqvarna 506739801

ROLL PIN - M3X20

$

$

Not available

531 00 25-87

Husqvarna 531002587

CHUTE DEFLECTOR W/ HNDL 23"
(Superseded to 506709801)

Note: 23

$

$

Not available

506 71 20-01

Husqvarna 506712001

HAND GUARD ASSY

$

$

Not available

506 73 93-01

Husqvarna 506739301

GEAR - WORM, CHUTE CRANK

$

$

Not available

725 24 59-61

Husqvarna 725245961

BOLT FLANGE - M8X40\

Note: KIT 532 16 18-74

$

$

Not available

734 11 65-41

Husqvarna 734116541

WASHER - 25X8.5X2.3

$5.99

$

Usually ships in 3-10 days

0

533 15 57-46

Husqvarna 533155746

COTTER PIN
(Superseded to 721618701)

Note: KIT 532 16 18-74

$4.99

$

In Stock, only 3 left!

0

731 11 65-41

Husqvarna 731116541

NEEDS DESCRIPTION

$

$

Currently unavailable

725 24 61-61

Husqvarna 725246161

BOLT FLANGE - M8X50

$

$

Not available

531 00 25-77

$

$

Not available

531 00 07-75

Husqvarna 531000775

SNOW CHUTE STD ASSY 23"

Note: 23

$

$

Not available

533 15 57-86

Husqvarna 533155786

CABLE
(Superseded to 531002545)

Note: KIT 532 16 18-74

$

$

Not available

734 11 37-41

$4.99

$

Usually ships in 3-10 days

0

532 16 11-95

Husqvarna 532161195

GROMMET
(Superseded to 532173860)

$

$

Not available

506 73 78-01

Husqvarna 506737801

WASHER

Note: 26

$

$

Not available

506 71 05-01

Husqvarna 506710501

SPRING

Note: 26

$

$

Not available

725 24 49-61

Husqvarna 725244961

BOLT FLANGE - M8X16

$1.49

$

Usually ships in 3-10 days

0

532 16 11-90

Husqvarna 532161190

PIN
(Superseded to 506710301)

$

$

Not available

506 73 76-01

Husqvarna 506737601

PLATE SPRING

$

$

Not available

531 00 25-85

Husqvarna 531002585

WING NUT - PLASTIC 5/16-18

Note: 23

$

$

Not available

535 41 49-85

Husqvarna 535414985

SHAFT

Note: KIT 532 16 18-74

$

$

Not available

532 16 13-96

Husqvarna 532161396

BRACKET
(Superseded to 506739001)

Note: KIT 532 16 18-74

$

$

Not available

531 00 25-80

Husqvarna 531002580

PUSH NUT 5/16"

Note: 26

$

$

Not available

533 15 57-34

Husqvarna 533155734

GRIP HANDLE - CHUTE CRANK

$

$

Not available

532 15 55-00

$

$

Not available

532 16 11-89

Husqvarna 532161189

CAP
(Superseded to 506710101)

$

$

Not available

532 15 57-24

Husqvarna 532155724

BRACKET..
(Superseded to 532173860)

$

$

Not available

506 73 91-01

Husqvarna 506739101

CHUTE WORM SUPPORT BRKT ASSY

$

$

Not available

725 23 66-71

$0.99

$

In Stock, only 2 left!

0

531 00 25-86

Husqvarna 531002586

WASHER SPLIT LOCK - 5/16

Note: 23

$

$

Not available

506 71 10-01

Husqvarna 506711001

FLANGE CHUTE ROTATE RETAINER

$

$

Not available

532 15 59-01

$

$

Not available

532 16 13-97

Husqvarna 532161397

HOLD DOWN CLIP

Note: KIT 532 16 18-74

$

$

Not available

506 73 77-01

Husqvarna 506737701

GLIDE PLASTIC - CHUTE FLANGE

$

$

Not available

506 71 35-01

$

$

Not available

734 11 65-41

Husqvarna 734116541

WASHER - 25X8.5X2.3

Note: 23

$5.99

$

Usually ships in 3-10 days

0

531 00 25-76

Husqvarna 531002576

SNOW CHUTE REMOTE ASSY 26"

Note: 26

$

$

Not available

532 16 14-65

Husqvarna 532161465

COUPLING..
(Superseded to 506739601)

Note: KIT 532 16 18-74

$

$

Not available

732 26 18-01

$

$

Not available

531 00 25-75

Husqvarna 531002575

REMOTE CHUTE DEFLECTOR ASSY
(Superseded to 506709701)

Note: 26

$

$

Not available

533 15 57-31

Husqvarna 533155731

CHUTE CRANK ASSY - SHORT

$

$

Not available
