9-26 - Husqvarna 26" Snow Blower (1995-12) HANDLE Parts Diagram

26" Snow Blower

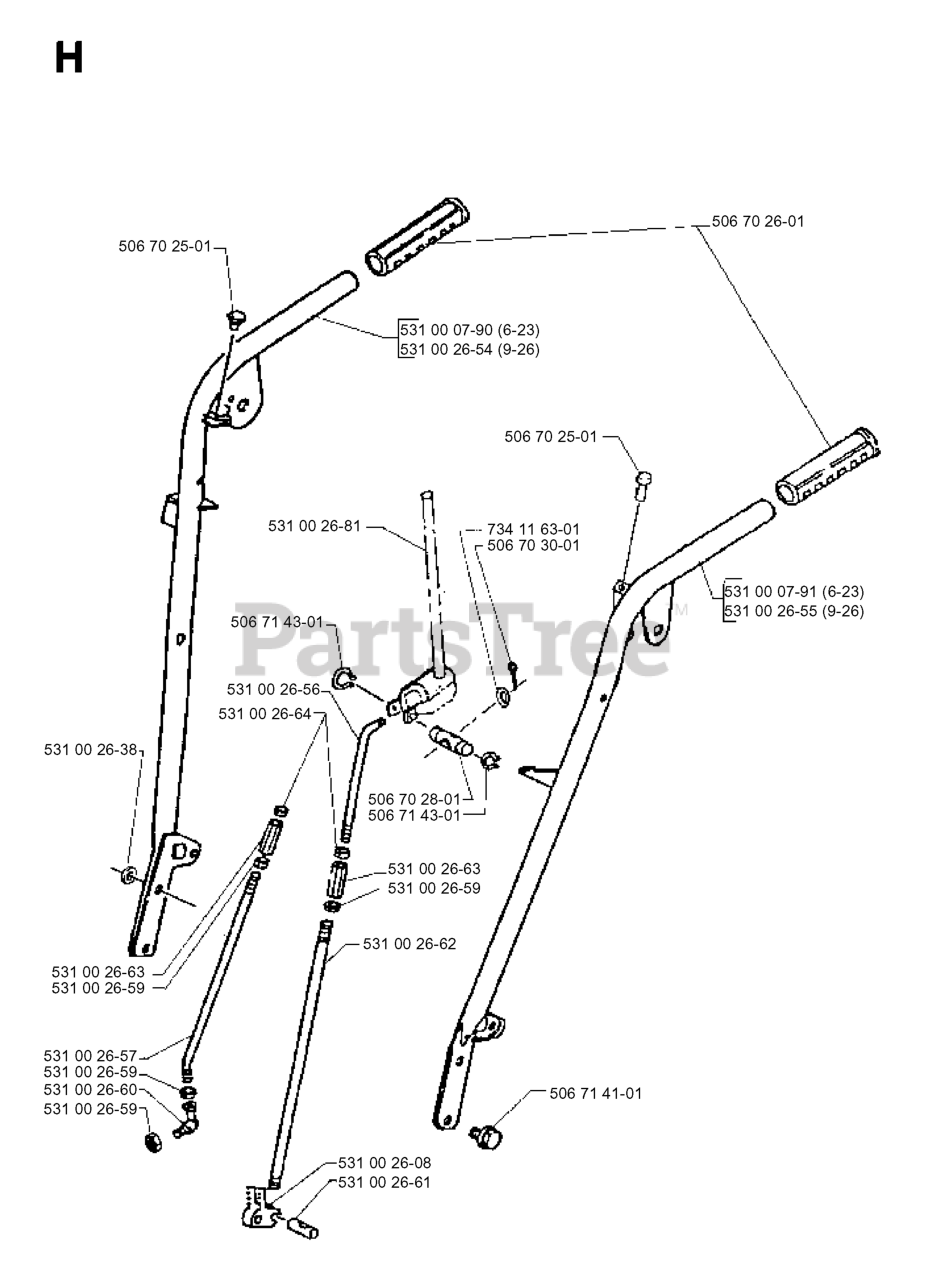

HANDLE Parts Diagram

  • Title

531 00 26-81

Husqvarna 531002681

GEAR SHIFT LEVER ASSY
(Superseded to 531002550)

$

$

Not available

531 00 26-64

Husqvarna 531002664

NUT LH - 5/16-24

$

$

Not available

506 71 41-01

Husqvarna 506714101

BOLT FLANGE - M10X25

$

$

Not available

531 00 26-56

Husqvarna 531002656

ROD - CLUTCH UPR 5/16-24

$

$

Not available

531 00 07-91

Husqvarna 531000791

HANDLE ASSY 23" LH

Note: 6-23

$

$

Not available

531 00 26-63

Husqvarna 531002663

NUT - COUPLER 5/16-24

$

$

Not available

531 00 26-59

Husqvarna 531002659

NUT - 5/16-24

$

$

Not available

506 70 28-01

Husqvarna 506702801

PIVOT - UPR CLUTCH ROD

$

$

Not available

531 00 26-60

Husqvarna 531002660

BALL JOINT - 5/16-24

$

$

Not available

531 00 26-54

Husqvarna 531002654

HANDLE ASSY 26" RH
(Superseded to 533155690)

Note: 9-26

$

$

Not available

531 00 26-61

Husqvarna 531002661

PIVOT LWR CLUTCH ROD - 5/16X24

$

$

Not available

531 00 26-57

Husqvarna 531002657

NEEDS DESCRIPTION

$

$

Not available

531 00 26-62

Husqvarna 531002662

NEEDS DESCRIPTION

$

$

Not available

531 00 26-38

Husqvarna 531002638

WASHER - ENG BOLT

$

$

Not available

734 11 63-01

Husqvarna 734116301

WASHER - 15X7.3X1.6
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

506 71 43-01

Husqvarna 506714301

RETAINING RING - M12 - C

$

$

Not available

531 00 26-08

Husqvarna 531002608

TRACTION ENGAGE CAM
(Superseded to 506695501)

$

$

Not available

506 70 30-01

Husqvarna 506703001

COTTER PIN - M2X20

$

$

Not available

506 70 26-01

Husqvarna 506702601

GRIP - HANDLE

$

$

Not available

506 70 25-01

Husqvarna 506702501

BUMPER - RUBBER

$

$

Not available

531 00 07-90

Husqvarna 531000790

HANDLE ASSY 23" RH NLA

Note: 6-23

$

$

Not available

531 00 26-55

Husqvarna 531002655

HANDLE ASSY 26" LH
(Superseded to 506702301)

Note: 9-26

$

$

Not available
