9-26 - Husqvarna 26" Snow Blower (1995-12) CONTROLS Parts Diagram

26" Snow Blower

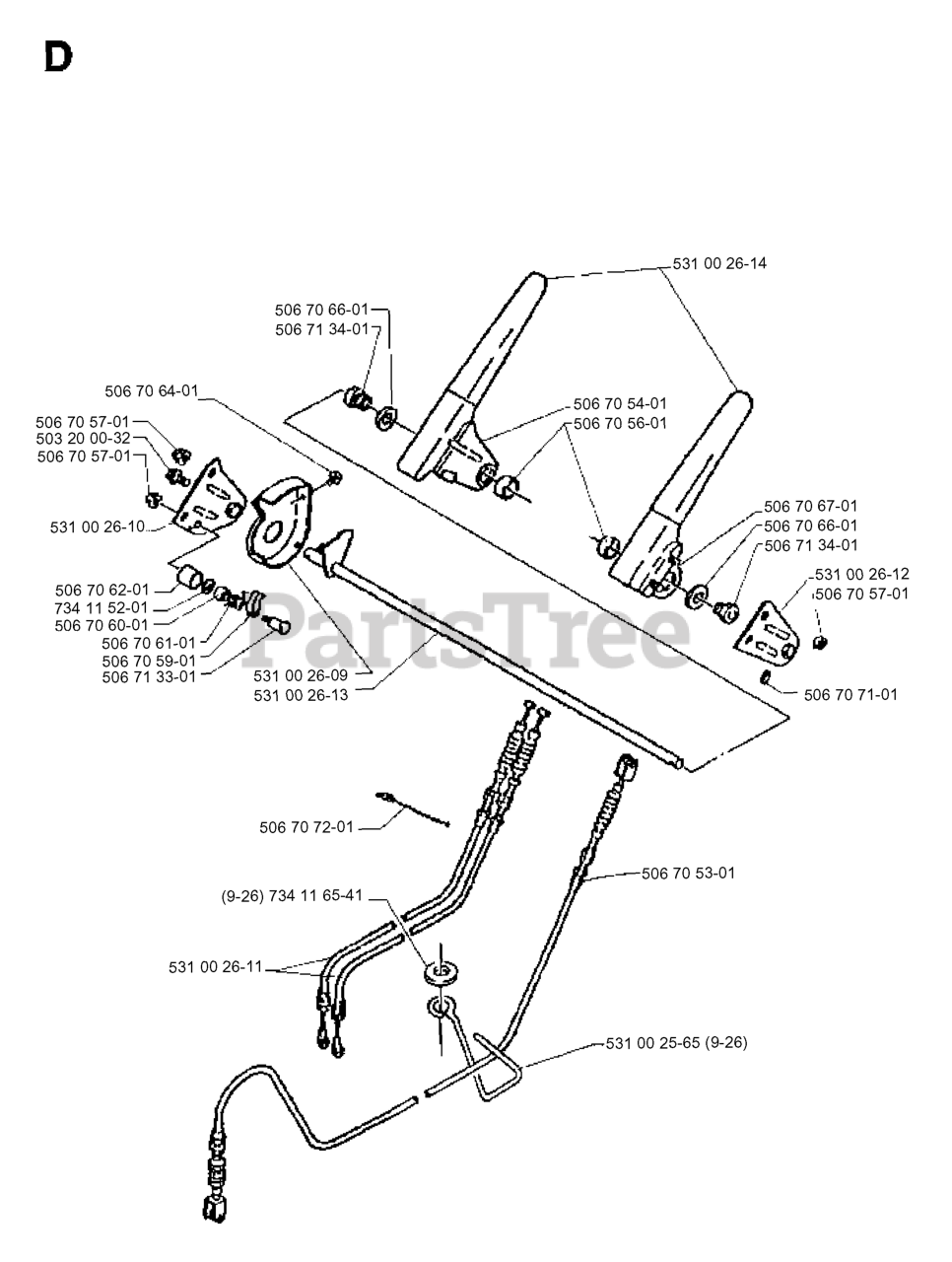

CONTROLS Parts Diagram

  • Title
506 71 34-01

Husqvarna 506713401

NUT SHOULDER - CONTROL SYSTEM

$

$

Not available

506 70 54-01

Husqvarna 506705401

BLOWER CLUTCH LEVER RH ASSY

$

$

Not available

506 70 72-01

Husqvarna 506707201

PLASTIC TIE, RE-USABLE
(Superseded to 539976966)

$4.99

$

Usually ships in 3-10 days

0

531 00 25-65

Husqvarna 531002565

NEEDS DESCRIPTION

Note: 9-26

$

$

Not available

506 70 59-01

$

$

Not available

506 70 66-01

Husqvarna 506706601

WASHER - CONICAL SPRING, M12

$

$

Not available

506 70 71-01

Husqvarna 506707101

ROLL PIN - M4X16

$

$

Not available

506 70 57-01

Husqvarna 506705701

NUT FLANGE - CAP/ACORN, M6

$

$

Not available

531 00 26-11

Husqvarna 531002611

CABLE CLUTCH - TRACTION/BLOWER
(Superseded to 532160791)

$

$

Not available

506 70 60-01

Husqvarna 506706001

SPACER - RACHET

$

$

Not available

531 00 26-14

Husqvarna 531002614

SLEEVE - CLUTCH LEVER, ORANGE

$

$

Not available

506 70 67-01

Husqvarna 506706701

TRACTION CLUTCH LEVER LH ASSY

$

$

Not available

506 71 33-01

Husqvarna 506713301

BOLT - RATCHET

$

$

Not available

503 20 00-32

Husqvarna 503200032

BOLT FLANGE - M8X16

$

$

Not available

531 00 26-13

Husqvarna 531002613

CLUTCH LEVER ACTUATOR SHFT ASY

$

$

Not available

506 70 56-01

Husqvarna 506705601

COLLAR - CLUTCH LEVER, RUBBER

$

$

Not available

506 70 53-01

Husqvarna 506705301

CABLE - REMOTE DEFLECTOR

$

$

Not available

734 11 52-01

Husqvarna 734115201

WASHER - M6

$4.99

$

In Stock, only 1 left!

0

506 70 62-01

Husqvarna 506706201

SLEEVE - RACHET SPRING

$

$

Not available

734 11 65-41

Husqvarna 734116541

WASHER - 25X8.5X2.3

Note: 9-26

$5.99

$

Usually ships in 3-10 days

0

531 00 26-12

Husqvarna 531002612

CLUTCH LEVER SUPP ARM ASSY LH
(Superseded to 506706801)

$

$

Not available

506 70 64-01

Husqvarna 506706401

SCREW SELF TAP - M4X8

$

$

Not available

506 70 61-01

Husqvarna 506706101

SPRING TORSION - RACHET

$

$

Not available

531 00 26-10

Husqvarna 531002610

CLUTCH LEVER SUPP PLATE RH
(Superseded to 506705501)

$

$

Not available

531 00 26-09

Husqvarna 531002609

CAM LOCK COVER
(Superseded to 506706301)

$

$

Not available
