9-26 - Husqvarna 26" Snow Blower (1995-12) CONTROL PANEL & DISCHARGE CHUTE Parts Diagram

26" Snow Blower

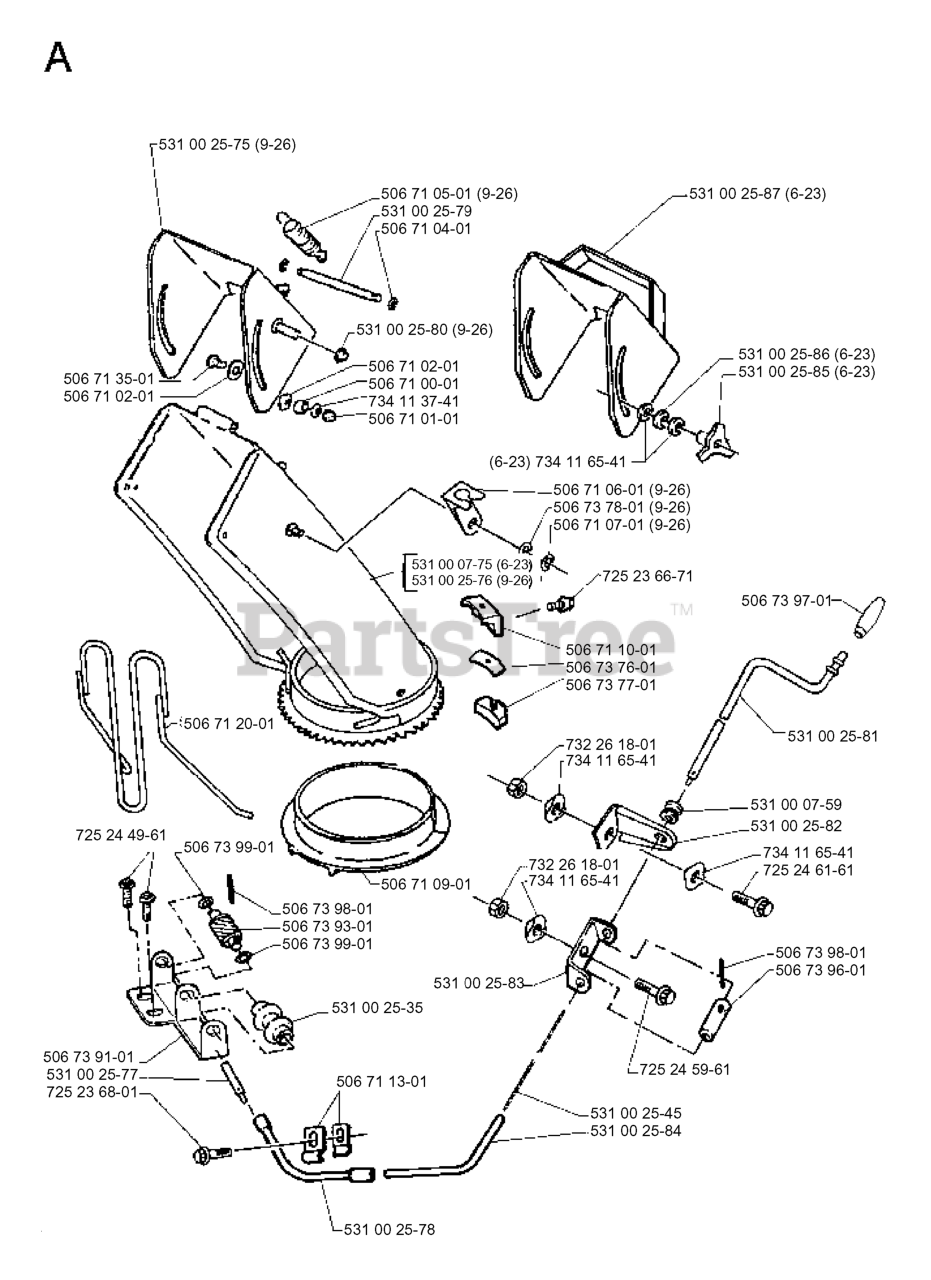

CONTROL PANEL & DISCHARGE CHUTE Parts Diagram

  • Title

506 71 06-01

Husqvarna 506710601

BRACKET

Note: 9-26

$

$

Not available

506 73 97-01

Husqvarna 506739701

NEEDS DESCRIPTION

$

$

Not available

506 71 07-01

Husqvarna 506710701

SNAP RING E

Note: 9-26

$

$

Not available

734 11 37-41

Husqvarna 734113741

WASHER

$4.99

$

Usually ships in 3-10 days

0

531 00 25-83

Husqvarna 531002583

CHUTE CRANK COUPLER SUPPORT
(Superseded to 506739001)

$

$

Not available

506 73 91-01

Husqvarna 506739101

CHUTE WORM SUPPORT BRKT ASSY

$

$

Not available

506 73 93-01

Husqvarna 506739301

GEAR - WORM, CHUTE CRANK

$

$

Not available

506 71 10-01

Husqvarna 506711001

FLANGE CHUTE ROTATE RETAINER

$

$

Not available

506 71 35-01

Husqvarna 506713501

SCREW

$

$

Not available

732 26 18-01

Husqvarna 732261801

NUT

$

$

Not available

531 00 25-86

Husqvarna 531002586

WASHER SPLIT LOCK - 5/16

Note: 6-23

$

$

Not available

734 11 65-41

Husqvarna 734116541

WASHER - 25X8.5X2.3

$5.99

$

Usually ships in 3-10 days

0

506 73 98-01

Husqvarna 506739801

ROLL PIN - M3X20

$

$

Not available

725 23 66-71

Husqvarna 725236671

Screw

$0.99

$

In Stock, only 2 left!

0

531 00 25-85

Husqvarna 531002585

WING NUT - PLASTIC 5/16-18

Note: 6-23

$

$

Not available

531 00 25-75

Husqvarna 531002575

REMOTE CHUTE DEFLECTOR ASSY
(Superseded to 506709701)

Note: 9-26

$

$

Not available

506 73 99-01

Husqvarna 506739901

WASHER - WAVE SPRING M14

$

$

Not available

506 73 77-01

Husqvarna 506737701

GLIDE PLASTIC - CHUTE FLANGE

$

$

Not available

734 11 65-41

Husqvarna 734116541

WASHER - 25X8.5X2.3

Note: 6-23

$5.99

$

Usually ships in 3-10 days

0

531 00 25-76

Husqvarna 531002576

SNOW CHUTE REMOTE ASSY 26"

Note: 9-26

$

$

Not available

531 00 25-82

Husqvarna 531002582

CHUTE CRANK SUPPORT BRKT ASSY
(Superseded to 532173860)

$

$

Not available

506 71 01-01

Husqvarna 506710101

NUT

$

$

Not available

506 71 02-01

Husqvarna 506710201

WASHER NYLON

$

$

Not available

531 00 25-81

Husqvarna 531002581

CHUTE CRANK ASSY

$

$

Not available

531 00 07-59

Husqvarna 531000759

GROMMET - RUBBER
(Superseded to 532173860)

$

$

Not available

725 23 68-01

Husqvarna 725236801

BOLT FLANGE M6X16
(Superseded to 725236871)

$4.99

$

In Stock, only 4 left!

0

725 24 61-61

Husqvarna 725246161

BOLT FLANGE - M8X50

$

$

Not available

531 00 25-45

Husqvarna 531002545

SHAFT FLEXIBLE - CHUTE CONTROL

$

$

Not available

506 73 78-01

Husqvarna 506737801

WASHER

Note: 9-26

$

$

Not available

531 00 25-80

Husqvarna 531002580

PUSH NUT 5/16"

Note: 9-26

$

$

Not available

531 00 07-75

Husqvarna 531000775

SNOW CHUTE STD ASSY 23"

Note: 6-23

$

$

Not available

506 71 13-01

Husqvarna 506711301

CLAMP, FLEX SHAFT HSNG

$

$

Not available

506 71 20-01

Husqvarna 506712001

HAND GUARD ASSY

$

$

Not available

531 00 25-77

Husqvarna 531002577

SHAFT

$

$

Not available

531 00 25-35

Husqvarna 531002535

COVER WORM CRAND - RUBBER

$

$

Not available

506 71 00-01

Husqvarna 506710001

SLEEVE

$

$

Not available

506 71 04-01

Husqvarna 506710401

SNAP RING C
(Superseded to 532173856)

$

$

Not available

506 71 09-01

Husqvarna 506710901

FLANGE PLASTIC - CHUTE ROTATE

$

$

Not available

531 00 25-79

Husqvarna 531002579

PIN HINGE - CHUTE DEFLECTOR
(Superseded to 506710301)

$

$

Not available

725 24 49-61

Husqvarna 725244961

BOLT FLANGE - M8X16

$1.49

$

Usually ships in 3-10 days

0

531 00 25-78

Husqvarna 531002578

LOWR FLEX SHAFT HSNG ASSY
(Superseded to 532161874)

$

$

Not available

531 00 25-84

Husqvarna 531002584

UPPER FLEX SHAFT HSNG ASSY
(Superseded to 532161398)

$

$

Not available

506 73 76-01

Husqvarna 506737601

PLATE SPRING

$

$

Not available

506 71 05-01

Husqvarna 506710501

SPRING

Note: 9-26

$

$

Not available

531 00 25-87

Husqvarna 531002587

CHUTE DEFLECTOR W/ HNDL 23"
(Superseded to 506709801)

Note: 6-23

$

$

Not available

725 24 59-61

Husqvarna 725245961

BOLT FLANGE - M8X40\

$

$

Not available

506 73 96-01

Husqvarna 506739601

COUPLER - CRANK, PLASTIC

$

$

Not available
