8X90KUC - MTD 547cc Engine 8X90KUC General Assembly Parts Diagram

547cc Engine

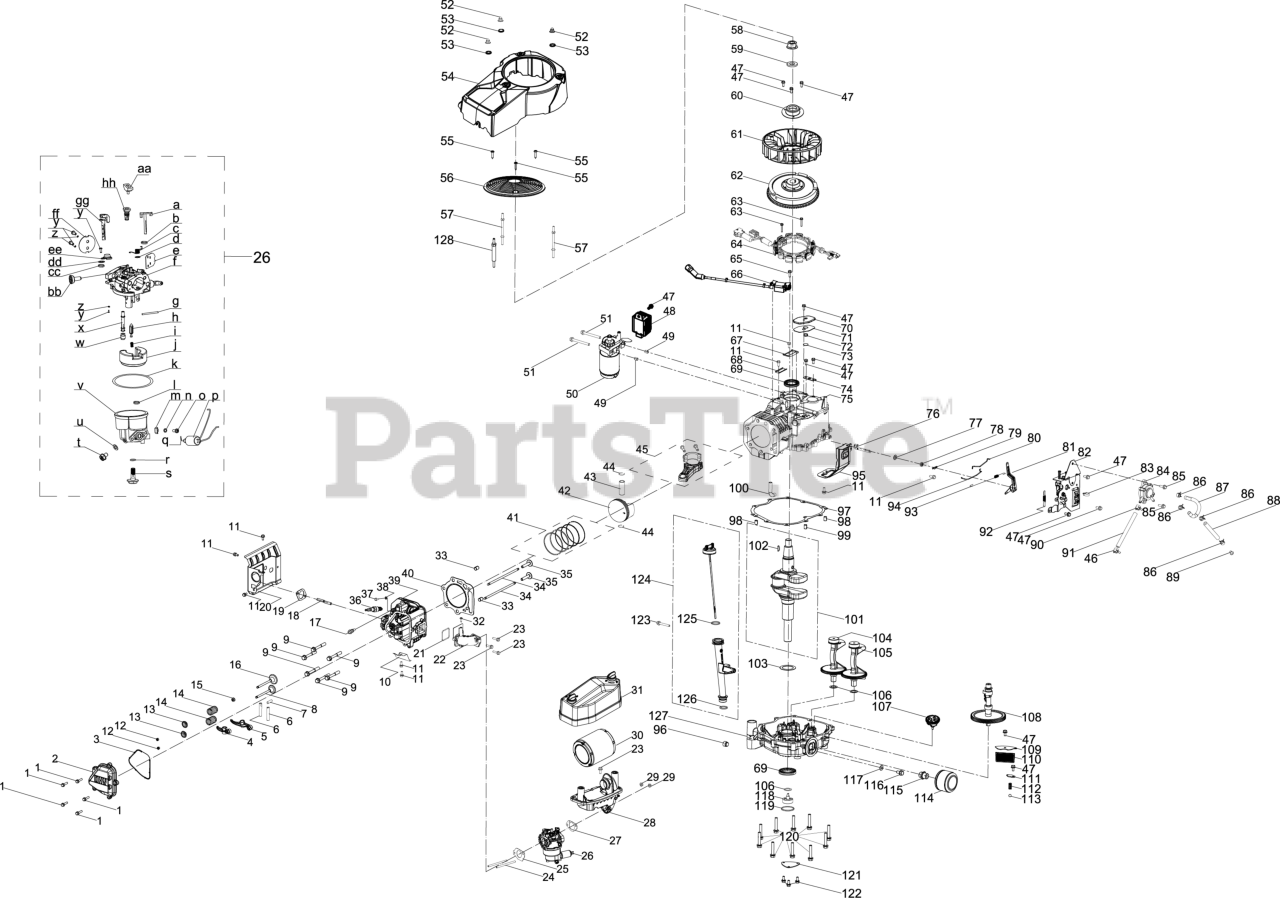

8X90KUC General Assembly Parts Diagram

  • Title

1

MTD 710-04919

BOLT M6-1 x 25 GR8.8

$4.49

$

Usually ships in 3-6 days

0

2

MTD 951-14914

VALVE COVER

$28.99

$

Usually ships in 3-6 days

0

3

MTD 951-14913

VALVE COVER GASKET

$13.99

$

Usually ships in 3-6 days

0

4

MTD 651P05491

ROCKER ARM (EXHAUST)

$13.99

$

Usually ships in 3-6 days

0

5

MTD 651P05490

ROCKER ARM (INTAKE)

$13.99

$

Usually ships in 3-6 days

0

6

MTD 911-06414

ROCKER ARM SHAFT

$5.99

$

Usually ships in 3-6 days

0

7

MTD 915-05035

CAMSHAFT PIN

$7.99

$

Usually ships in 3-6 days

0

8

MTD 951-14909

EXHAUST VALVE

$26.99

$

Usually ships in 3-6 days

0

9

MTD 710-06291

BOLT M10-1.25 x 70

$4.99

$

Usually ships in 3-6 days

0

10

MTD 931-10868

SHROUD

$7.99

$

Usually ships in 3-6 days

0

11

MTD 710-04915

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, Qty 20+

0

12

MTD 951-14912A

VALVE CAP

$3.49

$

In Stock, only 2 left!

0

13

MTD 951-14911A

VALVE SPRING SEAT

$5.49

$

Usually ships in 3-6 days

0

14

MTD 951-14910

VALVE SPRING

$10.99

$

Usually ships in 3-6 days

0

15

MTD 951-11964A

INTAKE VALVE SEAL

$11.99

$

In Stock, only 2 left!

0

16

MTD 951-14908

INTAKE VALVE

$26.99

$

Usually ships in 3-6 days

0

17

MTD 710-05305

HOOK BOLT

$4.49

$

In Stock, only 2 left!

0

18

MTD 910-06299

STUD

$4.99

$

Usually ships in 3-6 days

0

19

MTD 921-04744

EXHAUST GASKET

$6.99

$

Usually ships in 3-6 days

0

20

MTD 751P22449

BAFFLE BRACKET

$8.49

$

Usually ships in 3-6 days

0

21

MTD 951-14915

INTAKE PIPE RING

$4.99

$

In Stock, only 1 left!

0

22

MTD 931-10879

INTAKE PIPE

$24.99

$

In Stock, only 1 left!

0

23

MTD 710-06292

BOLT M6 x 22

$5.49

$

Usually ships in 3-6 days

0

24

MTD 710-06319

STUD M6-1.00 x 92

$6.49

$

Usually ships in 3-6 days

0

25

MTD 951-14947

INTAKE GASKET

$8.49

$

In Stock, Qty 20+

0

26

MTD 951-05560

CARBURETOR ASSEMBLY HY-8X90

Note: 1

$185.99

$

Usually ships in 3-6 days

0

27

MTD 921-04745

AIR FLTER GASKET

$6.99

$

In Stock, only 1 left!

0

28

MTD 931-05262

INTAKE MANIFOLD

$20.99

$

Usually ships in 3-6 days

0

29

MTD 712-05015

HEX NUT

$6.99

$

In Stock, Qty 20+

0

30

MTD 937-05066

AIR FILTER W/PREFILTER

$22.99

$

In Stock, Qty 15

0

31

MTD 651P06315

AIR FILTER COVER

$17.99

$

Usually ships in 3-6 days

0

32

MTD 710-06447

SELF TAPPING SCREW 4.8 x 16

$5.49

$

Usually ships in 3-6 days

0

33

MTD 750-06168

PIN 12X16

$5.49

$

Usually ships in 3-6 days

0

34

MTD 951-14898

SINGLE PUSH ROD

$22.99

$

Usually ships in 3-6 days

0

35

MTD 951-15614

TAPPET

$6.99

$

Usually ships in 3-6 days

0

36

MTD 951-10292A

SPARK PLUG (F6RTC/RN11YC/BPR6ES)

$6.99

$

In Stock, Qty 20+

0

37

MTD 710-06290

BOLT M5-.8 x 10

$4.99

$

Usually ships in 3-6 days

0

38

MTD 936-05113

FLAT WASHER: 5.3 x 10 x 1

$5.99

$

Usually ships in 3-6 days

0

39

MTD 918-07090

CYLINDER HEAD

$291.99

$

Usually ships in 3-6 days

0

40

MTD 921-04743

CYLINDER HEAD GASKET

$16.99

$

Usually ships in 3-6 days

0

41

MTD 951-05248

PISTON RING SET

$28.99

$

Usually ships in 3-6 days

0

42

MTD 951-14905

PISTON

$55.99

$

Usually ships in 3-6 days

0

43

MTD 911-06415

PISTON PIN

$10.99

$

Usually ships in 3-6 days

0

44

MTD 951-11953A

PISTON PIN SNAP RING

$3.99

$

In Stock, Qty 5

0

45

MTD 951-14902

CONNECTING ROD ASSEMBLY

$76.99

$

In Stock, only 2 left!

0

46

MTD 751P22450

CLAMP

$1.99

$

Usually ships in 3-6 days

0

47

MTD 710-04916

BOLT M6-1 x 14 GR8.8

$4.49

$

In Stock, Qty 12

0

48

MTD 951-15920

REGULATOR ASSEMBLY

$137.99

$

In Stock, only 2 left!

0

49

MTD 915-05026

DOWEL PIN

$5.49

$

Usually ships in 3-6 days

0

50

MTD 725P14645

ELECTRIC STARTER

$266.99

$

Usually ships in 3-6 days

0

51

MTD 710-06286

BOLT M8-1.25 x 80

$5.49

$

Usually ships in 3-6 days

0

52

MTD 712-04276A

ACORN NUT M6-1

$6.49

$

In Stock, Qty 12

0

53

MTD 736-05109

WASHER

$6.49

$

Usually ships in 3-6 days

0

54

MTD 751-22451

Shroud

$

$

Currently unavailable

55

MTD 710-05303

BOLT 5.5 x 25

$3.99

$

In Stock, only 2 left!

0

56

MTD 951-12205

DEBRIS SHIELD

$9.99

$

In Stock, Qty 7

0

57

MTD 910-06310

STUD

$7.49

$

In Stock, only 1 left!

0

58

MTD 912-05102

NUT M20 x 1.5

$8.49

$

Usually ships in 3-6 days

0

59

MTD 936-05110

WASHER 20.5 x 5 x 40

$6.49

$

Usually ships in 3-6 days

0

60

MTD 751P22232

COOLING FAN PLATE

$9.49

$

Usually ships in 3-6 days

0

61

MTD 931-10866

COOLING FAN

$49.99

$

Usually ships in 3-6 days

0

62

MTD 951-15766

Flywheel

$225.99

$

Usually ships in 3-6 days

0

63

MTD 710-06448

BOLT M5 x 28

$3.99

$

Usually ships in 3-6 days

0

64

MTD 951-15859

CHARGING COIL

$107.99

$

Usually ships in 3-6 days

0

65

MTD 710-04943

BOLT-M6-1 x 28 GR8.8

$4.49

$

Usually ships in 3-6 days

0

66

MTD 751P22452

IGNITION MODULE

$20.99

$

Usually ships in 3-6 days

0

67

MTD 951-14921

WIRE PLATE

$4.99

$

Usually ships in 3-6 days

0

68

MTD 951-14922

BREATHER SCREEN

$4.99

$

Usually ships in 3-6 days

0

69

MTD 937-05067

OIL SEAL 38 x 58 x 8

$15.99

$

In Stock, only 3 left!

0

70

MTD 907-06254

BREATHER COVER

$8.49

$

Usually ships in 3-6 days

0

71

MTD 921-04738

BREATHER COVER GASKET

$5.99

$

Usually ships in 3-6 days

0

72

MTD 732-04718A

BREATHER VALVE SPRING

$3.99

$

Usually ships in 3-6 days

0

73

MTD 951-11614A

BREATHER VALVE

$3.99

$

Usually ships in 3-6 days

0

74

MTD 907-06255

BRACKET

$4.99

$

Usually ships in 3-6 days

0

75

MTD 751P16626

CRANKCASE

$240.99

$

Usually ships in 3-6 days

0

76

MTD 911-06416

GOVERNOR GEAR SHAFT

$4.99

$

Usually ships in 3-6 days

0

77

MTD 936-05114

WASHER 8 x 0.8 x 16

$5.49

$

Usually ships in 3-6 days

0

78

MTD 951-12388

GOVERNOR SEAL

$4.49

$

Usually ships in 3-6 days

0

79

MTD 714-04077

GOVERNOR SHAFT CLIP

$6.49

$

In Stock, only 1 left!

0

80

MTD 951-14918A

CHOKE LINKAGE

$6.99

$

In Stock, only 2 left!

0

81

MTD 951-14919A

GOVERNOR LEVER

$5.99

$

Usually ships in 3-6 days

0

82

MTD 651P08704

GOV GEAR BRACKET

$19.99

$

Usually ships in 3-6 days

0

83

MTD 723-04071A

FUEL LINE SUPPORT CLAMP

$3.49

$

Usually ships in 3-6 days

0

84

MTD 751P22453

FUEL PUMP

$32.99

$

Usually ships in 3-6 days

0

85

MTD 710-05003

BOLT M6-1 x 18 GR8.8

$4.49

$

In Stock, only 4 left!

0

86

MTD 951-11700A

CARBURETOR HOSE CLAMP

$4.49

$

Usually ships in 3-6 days

0

87

MTD 951-16488

BREATHER HOSE

$8.49

$

Usually ships in 3-6 days

0

88

MTD 751-22457

Fuel Hose, 6.3X12.5X100

$

$

Currently unavailable

89

MTD 951-14091A

PLUG

$3.49

$

Usually ships in 3-6 days

0

90

MTD 951-14073

CLAMP

$4.49

$

In Stock, Qty 7

0

91

MTD 751P22458

FUEL HOSE 6.3x12.5x180

$4.99

$

Usually ships in 3-6 days

0

92

MTD 932-05291

GOVERNOR SPRING

$6.99

$

Usually ships in 3-6 days

0

93

MTD 951-12231

THROTTLE LINKAGE SPRING

$4.49

$

In Stock, only 1 left!

0

94

MTD 951-14917

THROTTLE LINKAGE

$7.49

$

In Stock, only 2 left!

0

95

MTD 907-06280

SHROUD - RIGHT

$11.99

$

Usually ships in 3-6 days

0

96

MTD 951-11644

ENGINE PLUG 3/8 NPT

$10.99

$

In Stock, Qty 5

0

97

MTD 921-04741

CRANKCASE COVER GASKET

$16.99

$

In Stock, Qty 8

0

98

MTD 715-04096A

DOWEL PIN 9 X 14

$4.49

$

Usually ships in 3-6 days

0

99

MTD 715-04092A

DOWEL PIN 7 X 14

$3.49

$

Usually ships in 3-6 days

0

100

MTD 951-14916

VENTING HOSE

$4.99

$

Usually ships in 3-6 days

0

101

MTD 951-05245

CRANKSHAFT ASSEMBLY

$288.99

$

Usually ships in 3-6 days

0

102

MTD 751P10307A

WOODRUFF KEY

$2.49

$

In Stock, Qty 10

0

103

MTD 936-05111

WASHER 38.3 x 54 x 1

$5.49

$

Usually ships in 3-6 days

0

104

MTD 917-05292A

BALANCE SHAFT (LH)

$80.99

$

Usually ships in 3-6 days

0

105

MTD 917-05293A

BALANCE SHAFT (RH)

$80.99

$

Usually ships in 3-6 days

0

106

MTD 936-05112

WASHER 17.2 x 26 x 1

$5.49

$

In Stock, only 2 left!

0

107

MTD 951-05246

GOVERNOR GEAR ASSEMBLY

$34.99

$

Usually ships in 3-6 days

0

108

MTD 919-05216

CAMSHAFT

$79.99

$

Usually ships in 3-6 days

0

109

MTD 931-10867

FILTER COVER

$4.99

$

Usually ships in 3-6 days

0

110

MTD 937-05069

FILTER SCREEN

$4.99

$

Usually ships in 3-6 days

0

111

MTD 951-14895

PRESSURE RELEASE COVER

$5.49

$

Usually ships in 3-6 days

0

112

MTD 932-05290

PRESSURE RELEASE SPRING

$5.49

$

Usually ships in 3-6 days

0

113

MTD 951-15588

OIL PUMP STEEL BALL

$3.99

$

Usually ships in 3-6 days

0

114

MTD 951-12690

ENGINE OIL FILTER

$17.99

$

In Stock, Qty 20+

0

115

MTD 951-12253

SCREW JOINT OIL FILTER ADAPTER

$7.99

$

Usually ships in 3-6 days

0

116

MTD 710-05313

BOLT M8 x 15

$3.99

$

Usually ships in 3-6 days

0

117

MTD 736-04560

OIL DRAIN PLUG WASHER

$4.49

$

Usually ships in 3-6 days

0

118

MTD 951-05247

OIL PUMP ASSEMBLY

$58.99

$

Usually ships in 3-6 days

0

119

MTD 921-04742

GASKET

$6.99

$

Usually ships in 3-6 days

0

120

MTD 710-06289

BOLT M8 x 45

$4.49

$

Usually ships in 3-6 days

0

121

MTD 951-14896

OIL SEPARATOR

$5.49

$

Usually ships in 3-6 days

0

122

MTD 710-05293

SCREW M6-1 x 16

$4.99

$

Usually ships in 3-6 days

0

123

MTD 710-06287

BOLT M6-1 x 45 CL5.8

$5.49

$

Usually ships in 3-6 days

0

124

MTD 924-05033A

DIPSTICK ASSEMBLY

$26.99

$

Usually ships in 3-6 days

0

125

MTD 921-04739

O-RING

$4.99

$

Usually ships in 3-6 days

0

126

MTD 921-04740

O-RING

$4.99

$

Usually ships in 3-6 days

0

127

MTD 951-14894A

CRANKCASE COVER

$181.99

$

Usually ships in 3-6 days

0

128

MTD 710-11659

STUD M6 X 113

$3.49

$

Usually ships in 3-6 days

0

26

MTD 951-05560

CARBURETOR ASSEMBLY HY-8X90

$185.99

$

Usually ships in 3-6 days

0

a

Choke Shaft

$

$

Not available

b

Choke Shaft Fiber O-Ring

$

$

Not available

c

Choke Return Spring

$

$

Not available

d

Flat Steel Washer

$

$

Not available

e

Choke Plate

$

$

Not available

f

Carburetor Body

$

$

Not available

g

MTD 711-06036

HINGE FLOAT PIN

$0.99

$

Usually ships in 3-6 days

0

h

MTD 751P14036A

NEEDLE VALVE

$5.99

$

Usually ships in 3-6 days

0

i

MTD 732P05251A

NEEDLE VALVE SPRING

$1.99

$

Usually ships in 3-6 days

0

j

MTD 731P09131

CARBURETOR FLOAT

$3.49

$

Usually ships in 3-6 days

0

k

MTD 951-11970

FUEL BOWL GASKET

$6.99

$

In Stock, Qty 16

0

l

MTD 721P04699

SEAL

$2.49

$

Usually ships in 3-6 days

0

m

Idle Mixture Screw

$

$

Not available

n

MTD 736-04629

WASHER

$3.99

$

Usually ships in 3-6 days

0

o

Screw M3×5

$

$

Not available

p

MTD 951-14972

CARBURETOR SOLENOID VALVE ASM

$45.99

$

In Stock, only 2 left!

0

q

MTD 736-05077

WASHER 12x8.2x.8

$2.49

$

In Stock, only 1 left!

0

r

O-Ring, Solenoid Valve Seat

$

$

Not available

s

MTD 710-06198

FUEL BOWL BOLT

$2.49

$

Usually ships in 3-6 days

0

t

Drain Bolt

$

$

Not available

u

MTD 951-11349A

FUEL DRAIN PLUG GASKET

$4.49

$

In Stock, Qty 20+

0

v

MTD 619P05093

FLOAT BOWL

$10.99

$

Usually ships in 3-6 days

0

w

Main Jet

$

$

Not available

x

Nozzle Tube

$

$

Not available

y

Screw M3×5

$

$

Not available

z

Washer

$

$

Not available

aa

Idle Jet Rivet

$

$

Not available

bb

MTD 710P06038A

SPEED IDLE SCREW

$2.99

$

Usually ships in 3-6 days

0

cc

Gasket

$

$

Not available

dd

Gasket, Throttle Shaft

$

$

Not available

ee

Throttle Shaft Sleeve

$

$

Not available

ff

Throttle Plate

$

$

Not available

gg

Throttle Shaft

$

$

Not available

hh

Idle Jet Assembly

$

$

Not available

MTD 752Z8X90KUC

COMPLETE ENGINE

$

$

Currently unavailable
