8X65MUA - MTD 159cc Engine 8X65MUA General Assembly Parts Diagram

159cc Engine

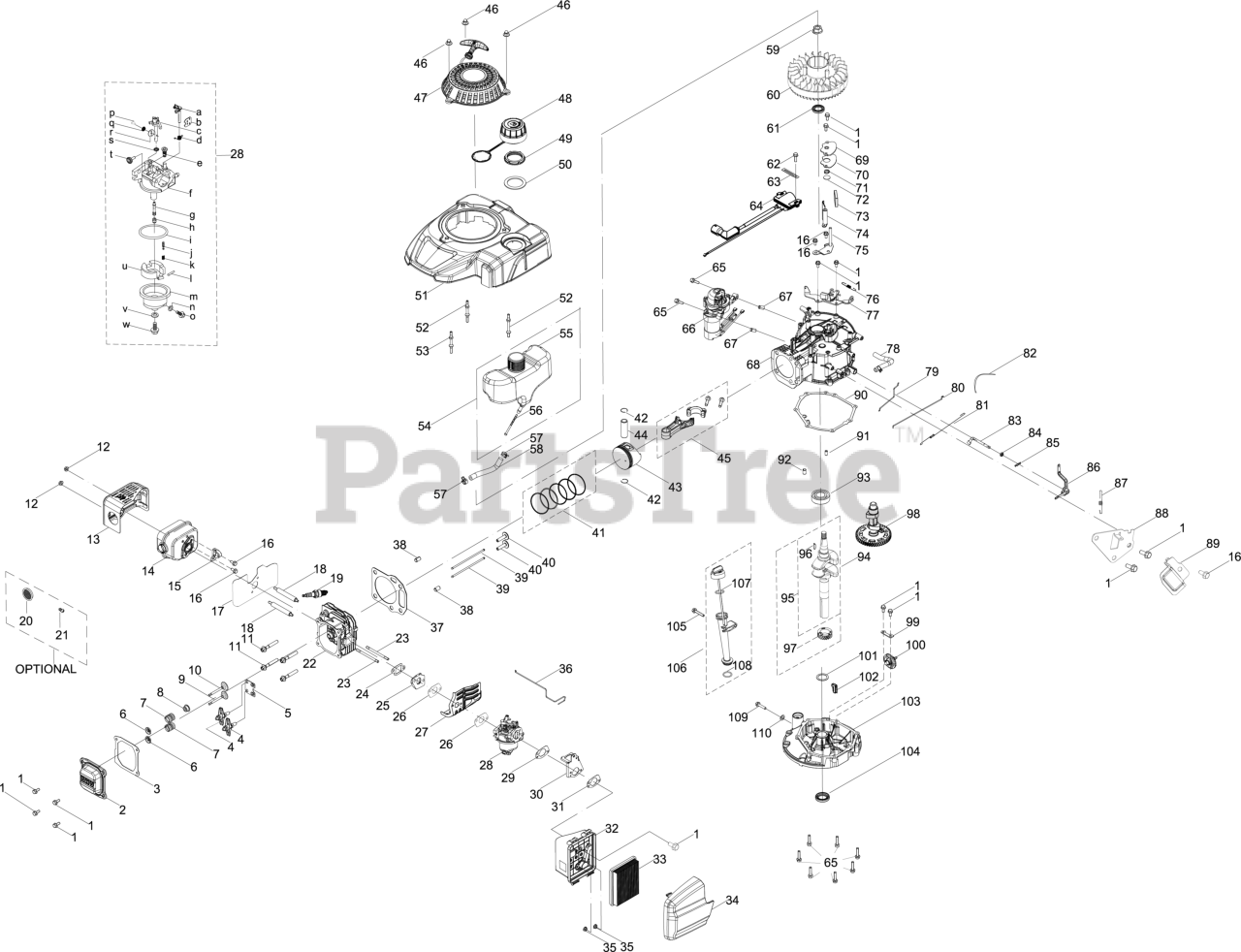

8X65MUA General Assembly Parts Diagram

  • Title

1

MTD 710-04916

BOLT M6-1 x 14 GR8.8

$4.49

$

In Stock, Qty 12

0

2

MTD 951-14609A

VALVE COVER

$16.99

$

Usually ships in 3-6 days

0

3

MTD 751P18586A

VALVE COVER GASKET

$4.49

$

In Stock, Qty 11

0

4

MTD 951-11606A

ROCKER ARM

$33.99

$

Usually ships in 3-6 days

0

5

MTD 951-11687

PUSH ROD GUIDE

$7.49

$

Usually ships in 3-6 days

0

6

MTD 908-04094A

VALVE RETURN SPRING

$3.99

$

Usually ships in 3-6 days

0

7

MTD 751P12004A

VALVE SPRING

$1.99

$

In Stock, Qty 5

0

8

MTD 921-04237A

INTAKE VALVE SEAL

$8.49

$

Usually ships in 3-6 days

0

9

MTD 951-14641A

EXHAUST VALVE

$9.99

$

Usually ships in 3-6 days

0

10

MTD 951-14640A

INTAKE VALVE

$9.99

$

Usually ships in 3-6 days

0

11

MTD 910-06185

BOLT-M8 x 54

$6.99

$

Usually ships in 3-6 days

0

12

MTD 712-05015

HEX NUT

$6.99

$

In Stock, Qty 20+

0

13

MTD 951-15566

MUFFLER SHIELD

$27.99

$

In Stock, only 1 left!

0

14

MTD 951-14429

MUFFLER ASSEMBLY
(Superseded to 951-14429A)

$63.99

$

In Stock, only 3 left!

0

15

MTD 951-14428A

CHOKE TEMP CONTROL THERMOSTAT

$41.99

$

Usually ships in 3-6 days

0

16

MTD 710-04915

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, Qty 20+

0

17

MTD 751P18909A

MUFFLER GASKET

$6.49

$

In Stock, only 2 left!

0

18

MTD 710-05094

STUD M6-1 x 95

$4.49

$

In Stock, Qty 20+

0

19

MTD 951-14437A

SPARK PLUG (F5RTC/RN11YC4/BPR5ES)

$6.99

$

In Stock, Qty 20+

0

19

MTD 490-250-C014

Cub Cadet SPARK PLUG-F5RTC

Note: Retail Packaged Part

$8.49

$

In Stock, only 3 left!

0

19

MTD 490-250-M014

Genuine Factory Parts SPARK PLUG (14437)
(Superseded to 490-250-Y014)

Note: Retail Packaged Part

$8.49

$

Usually ships in 3-6 days

0

20

MTD 951-10351A

SPARK ARRESTOR

$55.99

$

Usually ships in 3-6 days

0

21

MTD 710-04983

SCREW M3.5 x 9.5

$3.99

$

Usually ships in 3-6 days

0

22

MTD 951-14639

CYLINDER HEAD

$123.99

$

Usually ships in 3-6 days

0

23

MTD 951-15580

STUD M6 x 90

$5.99

$

Usually ships in 3-6 days

0

24

MTD 751P18606

CARBURETOR INSULATOR GASKET

$

$

Not available

25

MTD 951-11738

CARBURETOR INSULATOR
(Superseded to 951-11738A)

$5.49

$

In Stock, only 1 left!

0

26

MTD 721P05941A

CARBURETOR GASKET

$3.49

$

In Stock, Qty 20+

0

27

MTD 751P18991

CARBURETOR HEAT SHIELD

$6.49

$

Usually ships in 3-6 days

0

28

MTD 651P08667

CARBURETOR

$49.99

$

In Stock, Qty 20+

0

29

MTD 721P05942A

AIR FILTER BRACKET GASKET

$5.99

$

In Stock, Qty 6

0

30

MTD 908-05265

AIR FILTER BRACKET

$9.49

$

Usually ships in 3-6 days

0

31

MTD 951-14419A

AIR FILTER BASE GASKET

$8.49

$

Usually ships in 3-6 days

0

32

MTD 931-12769

AIR FILTER BASE

$13.99

$

In Stock, Qty 9

0

33

MTD 951-15245

AIR FILTER

$14.99

$

In Stock, Qty 20+

0

34

MTD 931-12768

AIR FILTER COVER
(Superseded to 931-12768A)

$11.99

$

In Stock, only 1 left!

0

35

MTD 712-05015

HEX NUT

$6.99

$

In Stock, Qty 20+

0

36

MTD 951-14421

CHOKE TEMP CONTROL LINKAGE

$

$

Not available

37

MTD 751P18607

CYLINDER HEAD GASKET
(Superseded to 751P18607A)

$4.99

$

In Stock, only 4 left!

0

38

MTD 715P04090A

PIN (10MMx16MM)

$3.49

$

Usually ships in 3-6 days

0

39

MTD 747-04862

PUSH ROD

$6.49

$

In Stock, Qty 6

0

40

MTD 951-14432A

TAPPET

$8.99

$

Usually ships in 3-6 days

0

41

MTD 951-14433A

PISTON RING SET

$39.99

$

In Stock, only 1 left!

0

42

MTD 951-11603A

WRIST PIN CLIP

$3.49

$

Usually ships in 3-6 days

0

43

MTD 951-14434A

PISTION

$64.99

$

Usually ships in 3-6 days

0

44

MTD 951-14435A

PISTON PIN

$10.99

$

Usually ships in 3-6 days

0

45

MTD 951-14436

CONNECTING ROD ASSEMBLY

$

$

Not available

46

MTD 712-04276A

ACORN NUT M6-1

$6.49

$

In Stock, Qty 12

0

47

MTD 951-05360A

RECOIL STARTER ASSEMBLY

$57.99

$

In Stock, only 1 left!

0

48

MTD 951-15255A

FUEL CAP W/TETHER

$26.99

$

In Stock, only 1 left!

0

49

MTD 931-10290A

FUEL TANK NUT

$5.99

$

Usually ships in 3-6 days

0

50

MTD 951-14406A

FUEL TANK GROMMET

$11.99

$

Usually ships in 3-6 days

0

51

MTD 631-05436

ENGINE SHROUD W/O IGNITION SWITCH

Note: 1

$36.99

$

Usually ships in 3-6 days

0

52

MTD 951-14397

STARTER/SHROUD REAR STUD

$9.99

$

In Stock, only 1 left!

0

53

MTD 951-14398

STARTER/SHROUD FRONT STUD

$9.99

$

In Stock, only 1 left!

0

55

MTD 931-12771A

FUEL TANK

$49.99

$

In Stock, only 3 left!

0

56

MTD 951-12296A

FUEL FILTER

$9.99

$

In Stock, Qty 20+

0

57

MTD 951-11700A

CARBURETOR HOSE CLAMP

$4.49

$

Usually ships in 3-6 days

0

58

MTD 935-05215

FUEL HOSE
(Superseded to 935-05215A)

$13.99

$

Usually ships in 3-6 days

0

59

MTD 712-04287A

FLYWHEEL NUT M14-1.5

$6.49

$

Usually ships in 3-6 days

0

60

MTD 751P19014

FLYWHEEL

$84.99

$

Usually ships in 3-6 days

0

61

MTD 951-11596A

UPPER CRANKSHAFT SEAL

$6.49

$

Usually ships in 3-6 days

0

62

MTD 710-04918

BOLT M6-1 x 20 GR8.8

$4.49

$

Usually ships in 3-6 days

0

63

MTD 951-11622A

FLEXIBLE CLAMP

$3.99

$

Usually ships in 3-6 days

0

64

MTD 925-07167

IGNITION COIL ASSEMBLY

$81.99

$

Usually ships in 3-6 days

0

65

MTD 710-04943

BOLT-M6-1 x 28 GR8.8

$4.49

$

Usually ships in 3-6 days

0

66

MTD 651P06936

ELECTRIC STARTER ASSEMBLY

$238.99

$

Usually ships in 3-6 days

0

67

MTD 715-04088A

DOWEL PIN

$3.49

$

Usually ships in 3-6 days

0

68

MTD 751P19015

CRANKCASE

$85.99

$

Usually ships in 3-6 days

0

69

MTD 951-14404

BREATHER COVER PLATE

$14.99

$

Usually ships in 3-6 days

0

70

MTD 951-14405A

BREATHER GASKET

$8.49

$

Usually ships in 3-6 days

0

71

MTD 732-04718A

BREATHER VALVE SPRING

$3.99

$

Usually ships in 3-6 days

0

72

MTD 951-11614A

BREATHER VALVE

$3.99

$

Usually ships in 3-6 days

0

73

MTD 951-11730A

BREATHER SCREEN

$4.49

$

Usually ships in 3-6 days

0

74

MTD 951-11529A

AIR VANE

$7.49

$

Usually ships in 3-6 days

0

75

MTD 751P18911

AIR VANE BRACKET

$5.99

$

Usually ships in 3-6 days

0

76

MTD 932-05566A

ENGINE BRAKE SPRING

$4.99

$

Usually ships in 3-6 days

0

77

MTD 951-05533

ENGINE BRAKE ASSEMBLY

$37.99

$

Usually ships in 3-6 days

0

78

MTD 951-15567

BREATHER HOSE ASSEMBLY

$5.99

$

Usually ships in 3-6 days

0

79

MTD 951-15702

CHOKE LINKAGE

$4.99

$

In Stock, only 1 left!

0

80

MTD 951-14721

THROTTLE LINKAGE

$6.99

$

Usually ships in 3-6 days

0

81

MTD 732-05188

THROTTLE LINKAGE SPRING
(Superseded to 732P05188A)

$6.99

$

In Stock, only 2 left!

0

82

MTD 725-06031A

CABLE TIE 3x150

$2.49

$

Usually ships in 3-6 days

0

83

MTD 951-11621

GOVERNOR ARM SHAFT

$9.99

$

Usually ships in 3-6 days

0

84

MTD 951-11902A

OIL SEAL

$3.99

$

In Stock, only 2 left!

0

85

MTD 714-04078A

COTTER PIN

$3.99

$

Usually ships in 3-6 days

0

86

MTD 951-05160A

GOVERNOR ARM ASSEMBLY

$6.49

$

In Stock, only 1 left!

0

87

MTD 951-14718

GOVERNOR SPRING

$

$

Not available

88

MTD 908-05254

COMPONENT BRACKET

$6.99

$

Usually ships in 3-6 days

0

89

MTD 908-05255

GOVERNOR SHIELD

$4.99

$

Usually ships in 3-6 days

0

90

MTD 751P18609

CRANKCASE COVER GASKET
(Superseded to 751P18609A)

$5.99

$

In Stock, only 1 left!

0

91

MTD 715-04092A

DOWEL PIN 7 X 14

$3.49

$

Usually ships in 3-6 days

0

92

MTD 715-04096A

DOWEL PIN 9 X 14

$4.49

$

Usually ships in 3-6 days

0

93

MTD 751P11369A

BEARING

$5.99

$

Usually ships in 3-6 days

0

94

CRANKSHAFT ASSEMBLY

Note: Components Only

$

$

Not available

95

MTD 751P19128

CRANKSHAFT

$85.99

$

Usually ships in 3-6 days

0

96

MTD 751P10307A

WOODRUFF KEY

$2.49

$

In Stock, Qty 10

0

97

MTD 931-10288A

GEAR

$9.49

$

Usually ships in 3-6 days

0

98

MTD 751P18628

CAMSHAFT
(Superseded to 751P18628A)

$20.99

$

Usually ships in 3-6 days

0

99

MTD 951-11609A

GOVERNOR GEAR MOUNTING PLATE

$4.49

$

Usually ships in 3-6 days

0

100

MTD 951-05336A

GEAR GOVERNOR

$8.99

$

Usually ships in 3-6 days

0

101

MTD 736-04491A

THRUST WASHER

$3.99

$

Usually ships in 3-6 days

0

102

MTD 951-11733

OIL RETURN SEAL

$4.99

$

Usually ships in 3-6 days

0

103

MTD 951-14418

CRANKCASE COVER

$

$

Not available

104

MTD 951-11545A

LOWER CRANKSHAFT SEAL

$10.99

$

In Stock, Qty 10

0

105

MTD 710-04980

BOLT M6-1 x 35 GR8.8

$3.99

$

In Stock, only 1 left!

0

106

MTD 951-05438

OIL DIPSTICK ASSEMBLY

$13.99

$

In Stock, only 1 left!

0

107

MTD 921-04795A

O-RING

$3.99

$

Usually ships in 3-6 days

0

108

MTD 921-04697A

O-RING

$2.99

$

Usually ships in 3-6 days

0

109

MTD 710-04906

OIL DRAIN PLUG

$6.99

$

In Stock, Qty 12

0

110

MTD 736-04440A

FLAT WASHER

$6.99

$

In Stock, only 1 left!

0

28

MTD 651P08667

CARBURETOR

$49.99

$

In Stock, Qty 20+

0

a

Choke Shaft

$

$

Not available

b

Choke Plate

$

$

Not available

c

Throttle Shaft

$

$

Not available

d

Choke Return Spring

$

$

Not available

e

Idle Jet Assembly

$

$

Not available

f

Carburetor Body

$

$

Not available

g

Emulsion Tube

$

$

Not available

h

Main Jet

$

$

Not available

i

MTD 721-04710A

FLOAT BOWL O-RING

$2.49

$

In Stock, Qty 10

0

j

MTD 793P00165

NEEDLE VALVE
(Superseded to 793P00165A)

$4.99

$

In Stock, Qty 11

0

k

MTD 732P05251

NEEDLE VALVE SPRING
(Superseded to 732P05251A)

$1.99

$

Usually ships in 3-6 days

0

l

MTD 711-06043

HINGE FLOAT PIN

$0.99

$

Usually ships in 3-6 days

0

m

MTD 908-05001

FLOAT BOWL

$8.49

$

In Stock, only 1 left!

0

n

MTD 721P04711A

FUEL DRAIN PLUG GASKET

$1.99

$

Usually ships in 3-6 days

0

o

MTD 710-06227

FUEL DRAIN PLUG

$3.49

$

Usually ships in 3-6 days

0

p

MTD 710-06230

SCREW-3Mx6

$3.49

$

Usually ships in 3-6 days

0

q

MTD 736P05209A

LOCK WASHER 3MM

$2.99

$

Usually ships in 3-6 days

0

r

Throttle Plate

$

$

Not available

S

MTD 721P04714A

CARB SHAFT GASKET

$1.49

$

Usually ships in 3-6 days

0

t

MTD 710P06038A

SPEED IDLE SCREW

$2.99

$

Usually ships in 3-6 days

0

u

MTD 731P09132A

FLOAT

$5.49

$

Usually ships in 3-6 days

0

v

MTD 721-04709A

FLOAT BOWL GASKET

$2.49

$

Usually ships in 3-6 days

0

w

MTD 710-06226

FUEL BOWL BOLT

$3.49

$

Usually ships in 3-6 days

0

MTD 752Z8X65MUA

COMPLETE ENGINE 159cc

$

$

Currently unavailable
