8Q78HUA - Cub Cadet 679cc Engine 8Q78HUA Engine Assembly Parts Diagram

679cc Engine

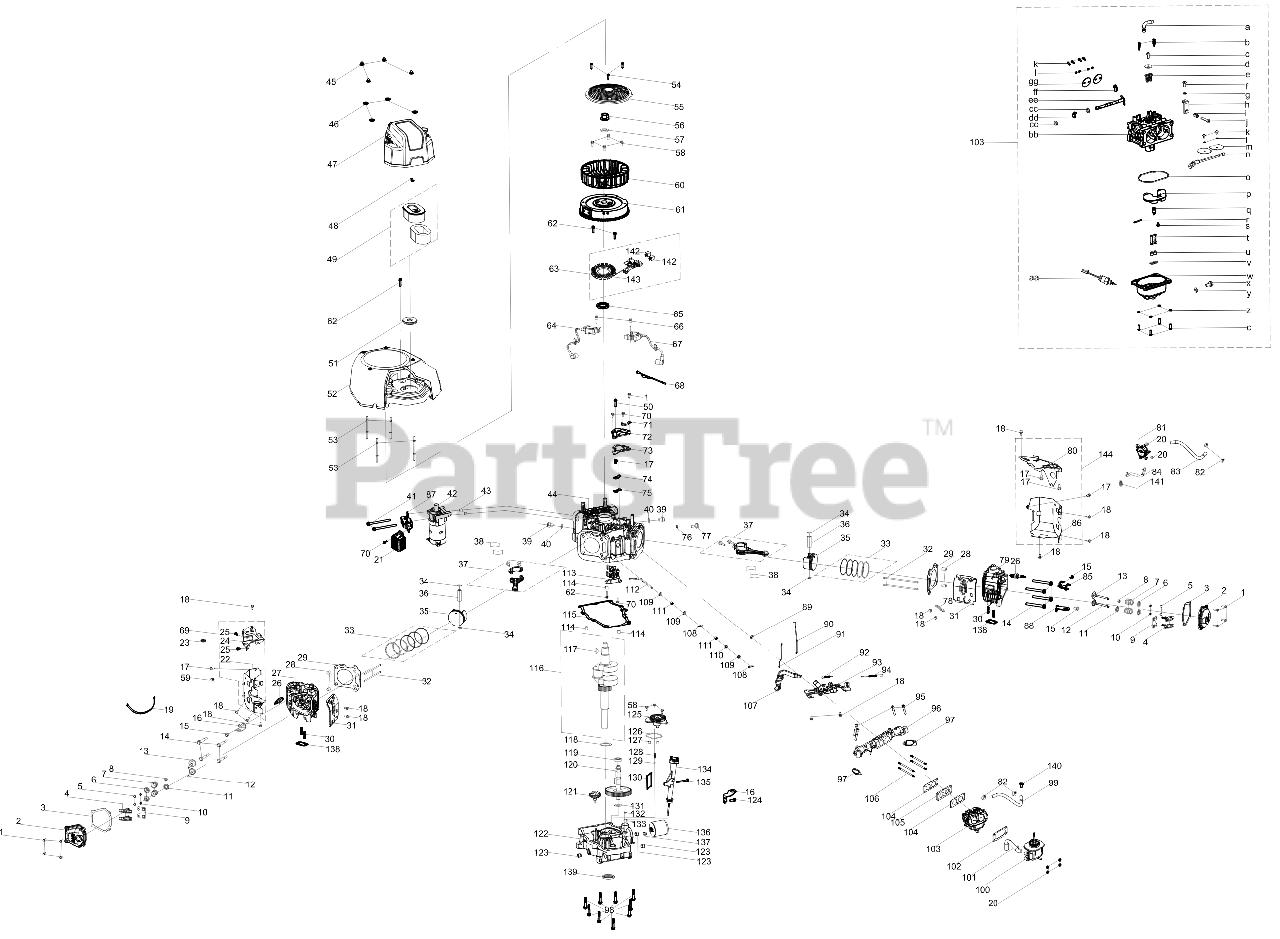

8Q78HUA Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 710-06292

BOLT M6 x 22

$5.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 951-15352

VALVE COVER

$19.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 951-15576

VALVE COVER GASKET

$9.99

$

In Stock, only 4 left!

0

4

Cub Cadet 951-11981

ROCKER ARM ASSEMBLY
(Superseded to 951-11981A)

$40.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 951-12269

EXHAUST VALVE ADJUSTER

$6.49

$

In Stock, Qty 6

0

6

Cub Cadet 951-14911

VALVE SPRING SEAT

$5.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 951-15356

VALVE SPRING

$5.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 951-11964

INTAKE VALVE SEAL
(Superseded to 951-11964A)

$11.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 951-11965A

PUSH ROD GUIDE
(Superseded to 951-11965B)

$6.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 951-14912

VALVE CAP
(Superseded to 951-14912A)

$3.49

$

In Stock, only 2 left!

0

11

Cub Cadet 951-12077

VALVE SPRING RETAINER
(Superseded to 951-12077A)

$3.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 951-15374

EXHAUST VALVE

$24.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 951-15373

INTAKE VALVE

$21.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-06507

HEX HEAD BOLT - M10X1.25X87

$7.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-06593

HEX HEAD BOLT M8X16

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 907-06699

LIFT HOOK BRACKET - LH

$13.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-04914

BOLT M6-1 x 10 GR8.8

$4.49

$

In Stock, only 3 left!

0

18

Cub Cadet 710-04915

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, only 3 left!

0

19

Cub Cadet 725-06031

CABLE TIE - 3 x 150

$2.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 712-05015

HEX NUT

$6.99

$

In Stock, Qty 6

0

21

Cub Cadet 951-15920

REGULATOR ASSEMBLY

$137.99

$

In Stock, only 2 left!

0

22

Cub Cadet 907-07190

CYLINDER HEAD BAFFLE

$17.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 931-13497

HEAT SHIELD GROMMET

$5.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 907-06783

FLYWHEEL SHROUD - LH

$11.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 710-06604

HEX HEAD SCREW M6X10

$3.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 951-10292

SPARK PLUG
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

27

Cub Cadet 951-15804

CYLINDER HEAD - LH

$259.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 715-04097

DOWEL PIN

$6.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 921-04967

CYLINDER HEAD GASKET

$14.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 710-04911

STUD M8 x 36

$4.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 951-15922

SHROUD

$10.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 951-15355

PUSH ROD

$6.99

$

In Stock, only 2 left!

0

33

Cub Cadet 951-05422

PISTON RIN SET

$27.99

$

In Stock, only 1 left!

0

34

Cub Cadet 951-11632

PISTON PIN SNAP RING

$4.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 951-15385

PISTON ASSEMBLY

$45.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 911-06733

PISTON PIN

$6.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 951-05376

CONNECTING ROD

$124.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 951-15587

CONNETING ROS BEARING

$14.99

$

In Stock, only 1 left!

0

39

Cub Cadet 710-06605

HEX HEAD BOLT M14-1.5X1.5

$5.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 736-05220

FLAT WASHER 14X1.5X22

$4.49

$

Usually ships in 3-6 days

0

41

Cub Cadet 710-06522

HEX HEAD BOLT M8X110

$4.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 925-07499

ELECTRIC STARTER

$391.99

$

In Stock, only 1 left!

0

43

Cub Cadet 915-05026

DOWEL PIN

$5.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 951-15865

CRANKCASE

$689.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 712-04276

ACORN NUT
(Superseded to 712-04276A)

$6.49

$

In Stock, Qty 12

0

46

Cub Cadet 736-05109

WASHER

$6.49

$

Usually ships in 3-6 days

0

47

Cub Cadet 931-05665

AIR FILTER COVER ASSEMBLY

$49.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 712-05227

WING NUT

$4.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 937-05145

AIR FILTER ELEMENT

$29.99

$

In Stock, Qty 5

0

50

Cub Cadet 710-04943

BOLT-M6-1 x 28 GR8.8

$4.49

$

In Stock, only 2 left!

0

51

Cub Cadet 951-15444

SEAL

$6.49

$

Usually ships in 3-6 days

0

52

Cub Cadet 931-05664

BLOWER HOUSING

$76.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 710-06496

STUD - M6-1.0X69.8X117

$6.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 710-05303

BOLT 5.5 x 25

$3.99

$

In Stock, only 2 left!

0

55

Cub Cadet 951-12205

DEBRIS SHIELD

$9.99

$

In Stock, Qty 7

0

56

Cub Cadet 912-05102

NUT M20 x 1.5

$8.49

$

Usually ships in 3-6 days

0

57

Cub Cadet 936-05110

WASHER 20.5 x 5 x 40

$6.49

$

Usually ships in 3-6 days

0

58

Cub Cadet 710-05003

BOLT M6-1 x 18 GR8.8

$4.49

$

In Stock, only 4 left!

0

59

Cub Cadet 931-10630

PLASTIC SUPPORT CLAMP

$6.49

$

Usually ships in 3-6 days

0

60

Cub Cadet 931-13792

COOLING FAN

$29.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 951-16066

FLYWHEEL

$294.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 710-04919

BOLT M6-1 x 25 GR8.8

$4.49

$

Usually ships in 3-6 days

0

63

Cub Cadet 651P06715

CHARGING COIL

$117.99

$

In Stock, only 1 left!

0

64

Cub Cadet 951-15868

IGNITION MODULE (LH)

$88.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 937-05067

OIL SEAL 38 x 58 x 8

$15.99

$

In Stock, only 3 left!

0

66

Cub Cadet 710-04969

BOLT-M6-1 x 30 GR8.8

$4.49

$

In Stock, only 3 left!

0

67

Cub Cadet 951-15869

IGNITION MODULE (RH)

$88.99

$

In Stock, only 1 left!

0

68

Cub Cadet 925-07545

WIRE HARNESS

$11.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 651P06615

SHROUD ASSEMBLY (LH)

$16.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 710-04968

BOLT M6 x 16

$6.99

$

In Stock, only 3 left!

0

71

Cub Cadet 751P18654

FLYWHEEL GUARD BRACKET

$6.49

$

Usually ships in 3-6 days

0

72

Cub Cadet 951-15810

BEATHER COVER

$18.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 951-15811

BREATHER COVER GASKET

$9.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 951-15399

BREATHER REED BRACKET

$6.49

$

Usually ships in 3-6 days

0

75

Cub Cadet 951-15398

BREATHER REED ASSEMBLY

$5.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 736-05221

WASHER 20.5X1.5X18

$4.49

$

Usually ships in 3-6 days

0

77

Cub Cadet 710-06607

HEX HEAD BOLT M10X1X10

$4.49

$

Usually ships in 3-6 days

0

78

Cub Cadet 951-15889

CLIP

$5.49

$

Usually ships in 3-6 days

0

79

Cub Cadet 951-15805

CYLINDER HEAD - RH

$259.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 951-15871

SHROUD (RH)

$16.99

$

Usually ships in 3-6 days

0

81

Cub Cadet 951-15872

FUEL PUMP

$

$

Not available

82

Cub Cadet 951-11700

HOSE CLAMP
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

83

Cub Cadet 735-05053

FUEL HOSE
(Superseded to 735-05053A)

$10.99

$

In Stock, only 1 left!

0

84

Cub Cadet 935-05273

FUEL LINE

$11.99

$

Usually ships in 3-6 days

0

85

Cub Cadet 951-15460

MOUNTING BRACKET

$7.49

$

Usually ships in 3-6 days

0

86

Cub Cadet 951-15873

CYLINDER HEAD BAFFLE

$16.99

$

Usually ships in 3-6 days

0

87

Cub Cadet 951-15890

STARTER RELAY SUPPORT

$19.99

$

In Stock, only 1 left!

0

88

Cub Cadet 907-06675

REAR LIFT BRACKET

$6.49

$

Usually ships in 3-6 days

0

89

Cub Cadet 931-13505

CHOKE LINKAGE LOCK CLAMP

$4.99

$

Usually ships in 3-6 days

0

90

Cub Cadet 951-15874

THROTTLE LINKAGE

$7.49

$

Usually ships in 3-6 days

0

91

Cub Cadet 951-15875

CHOKE LEVER

$5.99

$

Usually ships in 3-6 days

0

92

Cub Cadet 932-05617

GOVERNOR SPRING

$6.49

$

Usually ships in 3-6 days

0

93

Cub Cadet 951-05586

GOVERNOR GEAR BRACKET ASSEMBLY

$29.99

$

Usually ships in 3-6 days

0

94

Cub Cadet 932-05618

GOVERNOR SPRING

$6.49

$

Usually ships in 3-6 days

0

95

Cub Cadet 710-06505

SCREW - M8X50

$5.99

$

Usually ships in 3-6 days

0

96

Cub Cadet 919-05266

INTAKE MANIFOLD

$135.99

$

Usually ships in 3-6 days

0

97

Cub Cadet 921-04914

INTAKE MANIFOLD GASKET 9Q78

$9.99

$

Usually ships in 3-6 days

0

98

Cub Cadet 710-06501

HEX HEAD FLANGE BOLT M8X48

$5.99

$

Usually ships in 3-6 days

0

99

Cub Cadet 951-15877

FUEL LINE 6.3 x 12.5 x 470

$48.99

$

Usually ships in 3-6 days

0

100

Cub Cadet 931-05667

INTAKE MANIFOLD

$49.99

$

Usually ships in 3-6 days

0

101

Cub Cadet 951-15878

BREATHER HOSE

$9.99

$

Usually ships in 3-6 days

0

102

Cub Cadet 921-04990

AIR FILTER HOUSING GASKET

$7.99

$

Usually ships in 3-6 days

0

103

Cub Cadet 951-05588A

CARBURETOR

$277.99

$

Usually ships in 3-6 days

0

104

Cub Cadet 921-04991

CARBURETOR GASKET

$7.99

$

Usually ships in 3-6 days

0

105

Cub Cadet 751-15879

INSULATOR
(Superseded to 951-15879)

$10.99

$

Usually ships in 3-6 days

0

106

Cub Cadet 710-04910

STUD M6-1 x 105

$6.49

$

In Stock, Qty 6

0

107

Cub Cadet 951-15880

GOVERNOR LEVER

$13.99

$

Usually ships in 3-6 days

0

108

Cub Cadet 714-04077

GOVERNOR SHAFT CLIP

$6.49

$

In Stock, only 1 left!

0

109

Cub Cadet 736-05188

FLAT WASHER 8.5X15.8X2

$3.49

$

Usually ships in 3-6 days

0

110

Cub Cadet 951-12388

GOVERNOR SEAL

$4.49

$

Usually ships in 3-6 days

0

111

Cub Cadet 941-05216

NEEDLE BEARING 8X12X10

$9.49

$

Usually ships in 3-6 days

0

112

Cub Cadet 951-15403

GOVERNOR ARM ROD

$13.99

$

Usually ships in 3-6 days

0

113

Cub Cadet 951-15384

ROACKER ARM

$90.99

$

Usually ships in 3-6 days

0

114

Cub Cadet 715-05064

PIN 8X12

$3.99

$

Usually ships in 3-6 days

0

115

Cub Cadet 921-04887

CRANKCASE GASKET

$23.99

$

In Stock, only 1 left!

0

116

Cub Cadet 951-15366

CRANKSHAFT ASSEMBLY

$429.99

$

Usually ships in 3-6 days

0

117

Cub Cadet 951-10307

FLYWHEEL KEY
(Superseded to 751P10307A)

$2.49

$

Usually ships in 3-6 days

0

118

Cub Cadet 736-05187

WASHER - 38.5X1.0X54

$4.49

$

Usually ships in 3-6 days

0

119

Cub Cadet 941-05213

CAMSHAFT BEARING

$11.99

$

Usually ships in 3-6 days

0

120

Cub Cadet 951-15375

CAMSHAFT ASSEMBLY

$179.99

$

Usually ships in 3-6 days

0

121

Cub Cadet 951-05589

GOVERNOR GEAR

$18.99

$

Usually ships in 3-6 days

0

122

Cub Cadet 951-15360

CRANKCASE COVER

$99.99

$

Usually ships in 3-6 days

0

123

Cub Cadet 951-11644

ENGINE PLUG 3/8 NPT

$10.99

$

In Stock, Qty 5

0

124

Cub Cadet 710-06506

HEX HEAD SCREW M8X16

$4.99

$

Usually ships in 3-6 days

0

125

Cub Cadet 951-05449

OIL PUMP ASSEMBLY

$78.99

$

Usually ships in 3-6 days

0

126

Cub Cadet 921-04916

OIL PUMP GASKET

$6.49

$

Usually ships in 3-6 days

0

127

Cub Cadet 715-04088

DOWEL PIN
(Superseded to 715-04088A)

$3.49

$

Usually ships in 3-6 days

0

128

Cub Cadet 932-05534

OIL PUMP SPRING

$5.49

$

Usually ships in 3-6 days

0

129

Cub Cadet 951-15588

OIL PUMP STEEL BALL

$3.99

$

Usually ships in 3-6 days

0

130

Cub Cadet 951-15383

OIL PUMP SCREEN

$11.99

$

Usually ships in 3-6 days

0

131

Cub Cadet 736-05199

THRUST WASHER 17.4X25.9X1.0

$4.49

$

Usually ships in 3-6 days

0

132

Cub Cadet 951-15589

O-RING 13.2X2.65

$3.99

$

Usually ships in 3-6 days

0

133

Cub Cadet 951-15590

CRANKCASE OIL PASSAGE PIN

$3.99

$

Usually ships in 3-6 days

0

134

Cub Cadet 951-05450A

DIPSTICK ASSEMBLY
(Superseded to 951-05450B)

$33.99

$

Usually ships in 3-6 days

0

135

Cub Cadet 710-05234

SCREW M6-1:50:CL5.

$5.99

$

Usually ships in 3-6 days

0

136

Cub Cadet 951-12690

ENGINE OIL FILTER

$17.99

$

In Stock, Qty 20+

0

137

Cub Cadet 951-12253

SCREW JOINT OIL FILTER ADAPTER

$7.99

$

Usually ships in 3-6 days

0

138

Cub Cadet 921-04936

EXHAUST GASKET

$7.99

$

In Stock, only 2 left!

0

139

Cub Cadet 937-05190

OIL SEAL 38 x 58 x 8

$18.99

$

Usually ships in 3-6 days

0

140

Cub Cadet 951-14091

PLUG

$4.99

$

Usually ships in 3-6 days

0

141

Cub Cadet 731P18651

GROMMET

$1.49

$

Usually ships in 3-6 days

0

142

Cub Cadet 725P08065

RELAY

$19.99

$

Usually ships in 3-6 days

0

143

Cub Cadet 751P18708

CHARGING COIL

$71.99

$

Usually ships in 3-6 days

0

144

Cub Cadet 651P06696

SHROUD ASSEMBLY (RH)

$19.99

$

Usually ships in 3-6 days

0

a

Fuel Nipple

$

$

Not available

b

Mixture Screw

$

$

Not available

c

Screw, M4x12

$

$

Not available

d

Idle Jet Board

$

$

Not available

e

Idle Jet

$

$

Not available

f

Screw, M5x10

$

$

Not available

g

Washer

$

$

Not available

h

Idle Adjusting Screw Base

$

$

Not available

i

Spring

$

$

Not available

g

Screw

$

$

Not available

k

Bolt, M3x6

$

$

Not available

l

Washer, 3

$

$

Not available

m

Choke Plate

$

$

Not available

n

Choke Shaft

$

$

Not available

o

O-Ring, Float Bowl

$

$

Not available

p

Float

$

$

Not available

q

Needle Valve

$

$

Not available

r

Float Pin

$

$

Not available

s

Screw, M4x6

$

$

Not available

t

Nozzle Tube

$

$

Not available

u

Main Jet

$

$

Not available

v

Seal

$

$

Not available

w

Cub Cadet 951-15914

FLOAT BOWL

$18.99

$

Usually ships in 3-6 days

0

x

Cub Cadet 910-06752

DRAIN BOLT

$5.49

$

Usually ships in 3-6 days

0

y

Cub Cadet 951-11349

FUEL DRAIN PLUG GASKET
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 11

0

z

Washer, 4

$

$

Not available

aa

Solenoid Valve

$

$

Not available

bb

Carburetor Body

$

$

Not available

cc

Throttle Shaft Sleeve

$

$

Not available

dd

Throttle Shaft Spring

$

$

Not available

ee

Throttle Shaft

$

$

Not available

ff

Throttle Cable Joint

$

$

Not available

gg

Throttle Plate

$

$

Not available

Cub Cadet 752Z8Q78HUA

COMPLETE ENGINE
(Superseded to 952Z8Q78HUB)

$1510.99

$

Usually ships in 3-6 days

0
