8P602-0036-H5 - Briggs & Stratton Vertical Engine Flywheel, Ignition, and Starter Group Parts Diagram

Vertical Engine

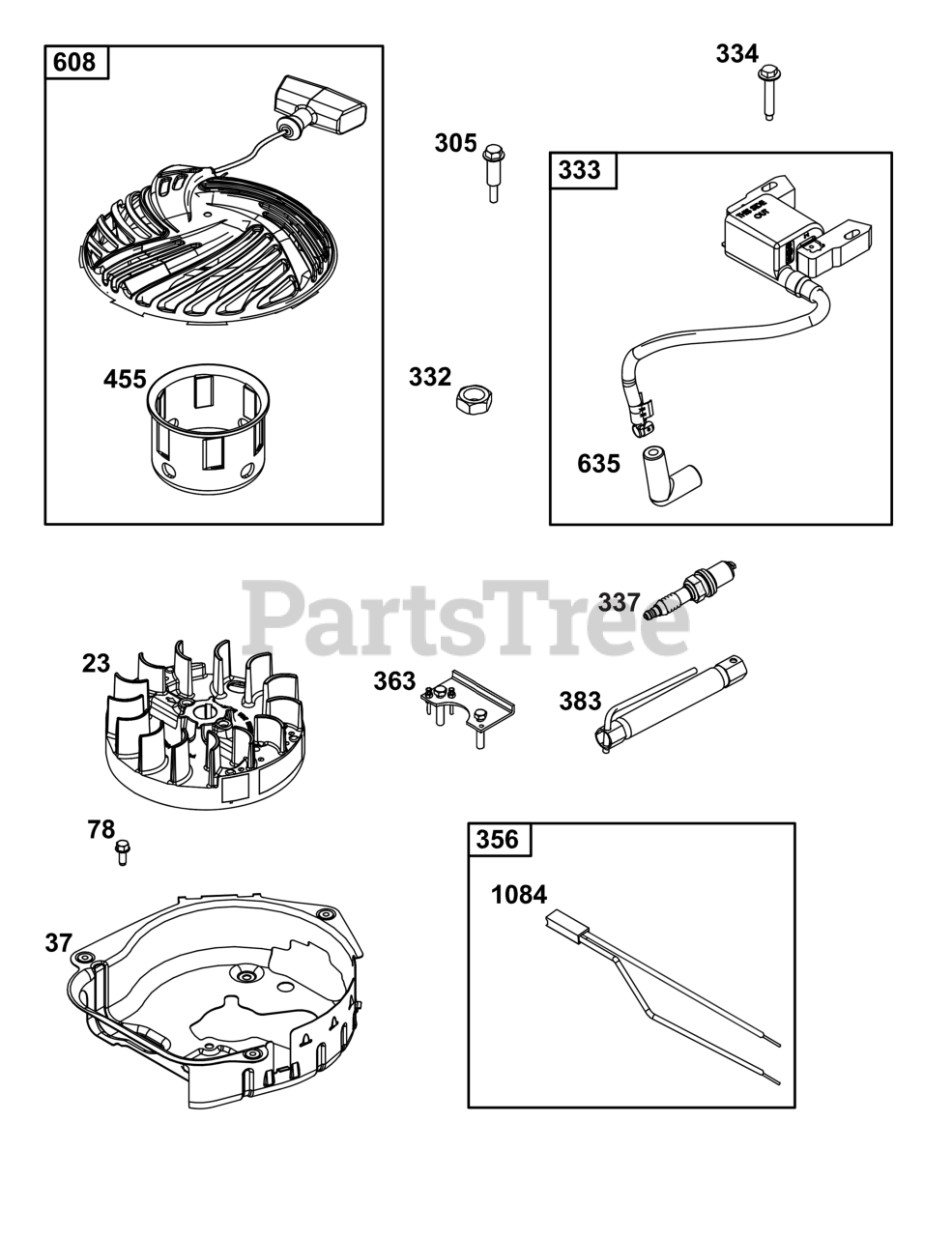

Flywheel, Ignition, and Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 590544

FLYWHEEL

$82.99

$

In Stock, only 1 left!

0

37

Briggs & Stratton 594729

GUARD, Flywheel

$21.99

$

In Stock, only 1 left!

0

78

Briggs & Stratton 793480

SCREW

Note: (Flywheel Guard)

$3.99

$

In Stock, Qty 20+

0

305

SCREW

Note: (Part information located in Blower Housing Group.)

$

$

Not available

332

Briggs & Stratton 690662

NUT

Note: (Flywheel)

$5.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 595009

ARMATURE, Magneto
(Superseded to 84005272)

$31.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

337

PLUG, Spark

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

356

Briggs & Stratton 596036

WIRE, Stop

$10.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19619

PULLER, Flywheel

$116.99

$

Usually ships in 2-12 days

0

383

WRENCH, Spark Plug

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

455

Briggs & Stratton 84004349

CUP, FLYWHEEL

$9.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 84004350

STARTER, REWIND

$45.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 20+

0

1084

Briggs & Stratton 399365S

CONNECTOR, Terminal

$18.99

$

Usually ships in 2-12 days

0
