8P602-0011-H5 - Briggs & Stratton Vertical Engine Flywheel, Ignition, and Starter Group Parts Diagram

Vertical Engine

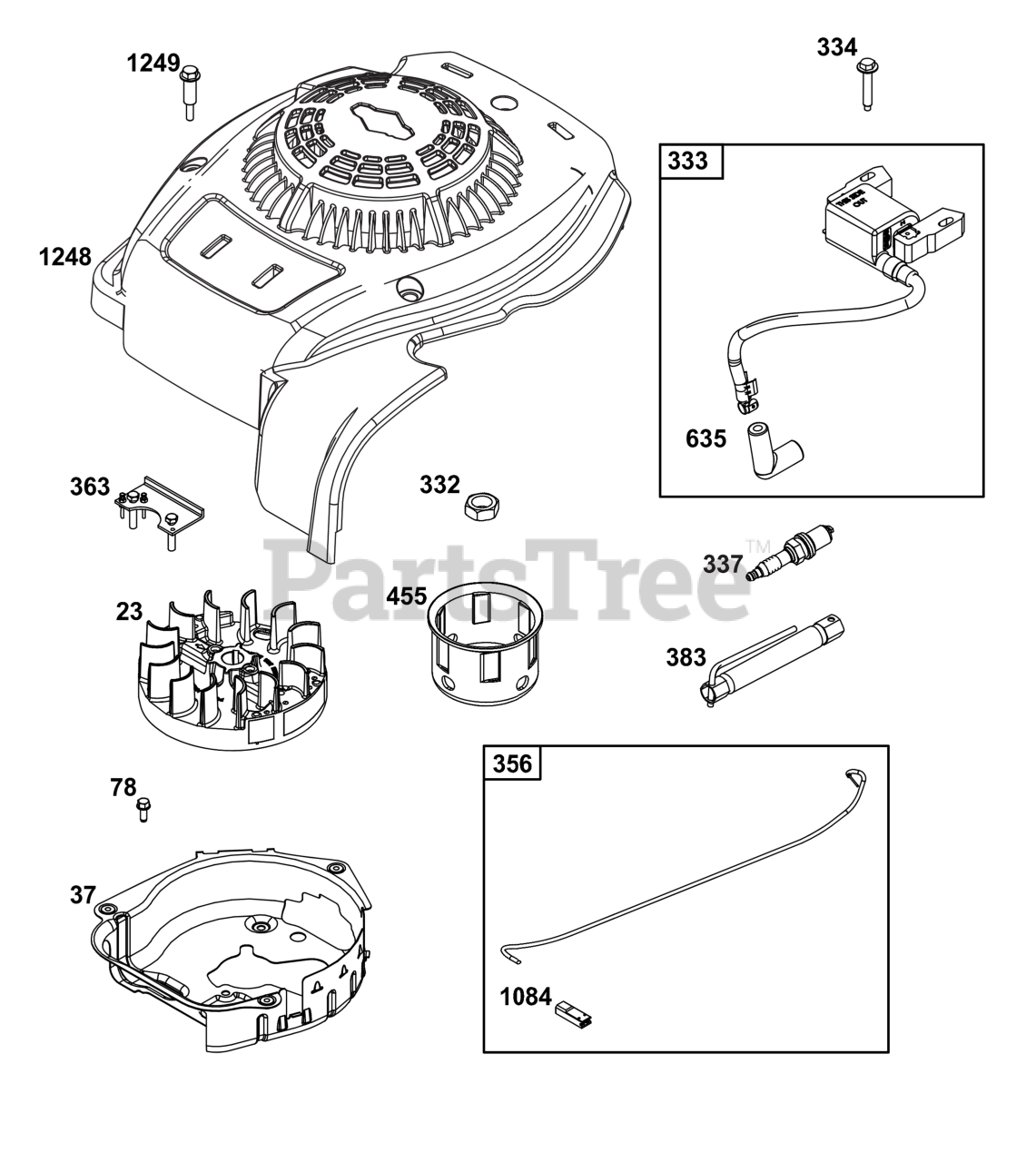

Flywheel, Ignition, and Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 590544

FLYWHEEL

$82.99

$

In Stock, only 1 left!

0

37

Briggs & Stratton 594729

GUARD, Flywheel

$21.99

$

In Stock, only 1 left!

0

78

Briggs & Stratton 793480

SCREW

Note: (Flywheel Guard)

$3.99

$

In Stock, Qty 20+

0

332

Briggs & Stratton 690662

NUT

Note: (Flywheel)

$5.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 595009

ARMATURE, Magneto
(Superseded to 84005272)

$31.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

337

PLUG, Spark

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

356

Briggs & Stratton 595018

WIRE, Stop
(Superseded to 594509)

$4.49

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19619

PULLER, Flywheel

$116.99

$

Usually ships in 2-12 days

0

383

WRENCH, Spark Plug

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

455

Briggs & Stratton 84004349

CUP, FLYWHEEL

$9.99

$

Usually ships in 2-12 days

0

1084

Briggs & Stratton 399365S

HOUSING, LEAD (20-399365)

$18.99

$

Usually ships in 2-12 days

0

1248

Briggs & Stratton JUMPTO1248

BLOWER HOUSING/REWIND

Note: (Part information located in Blower Housing Group.)

$

$

Currently unavailable

1249

Briggs & Stratton JUMPTO1249

SCREW

Note: (Part information located in Blower Housing Group.)

$

$

Currently unavailable
