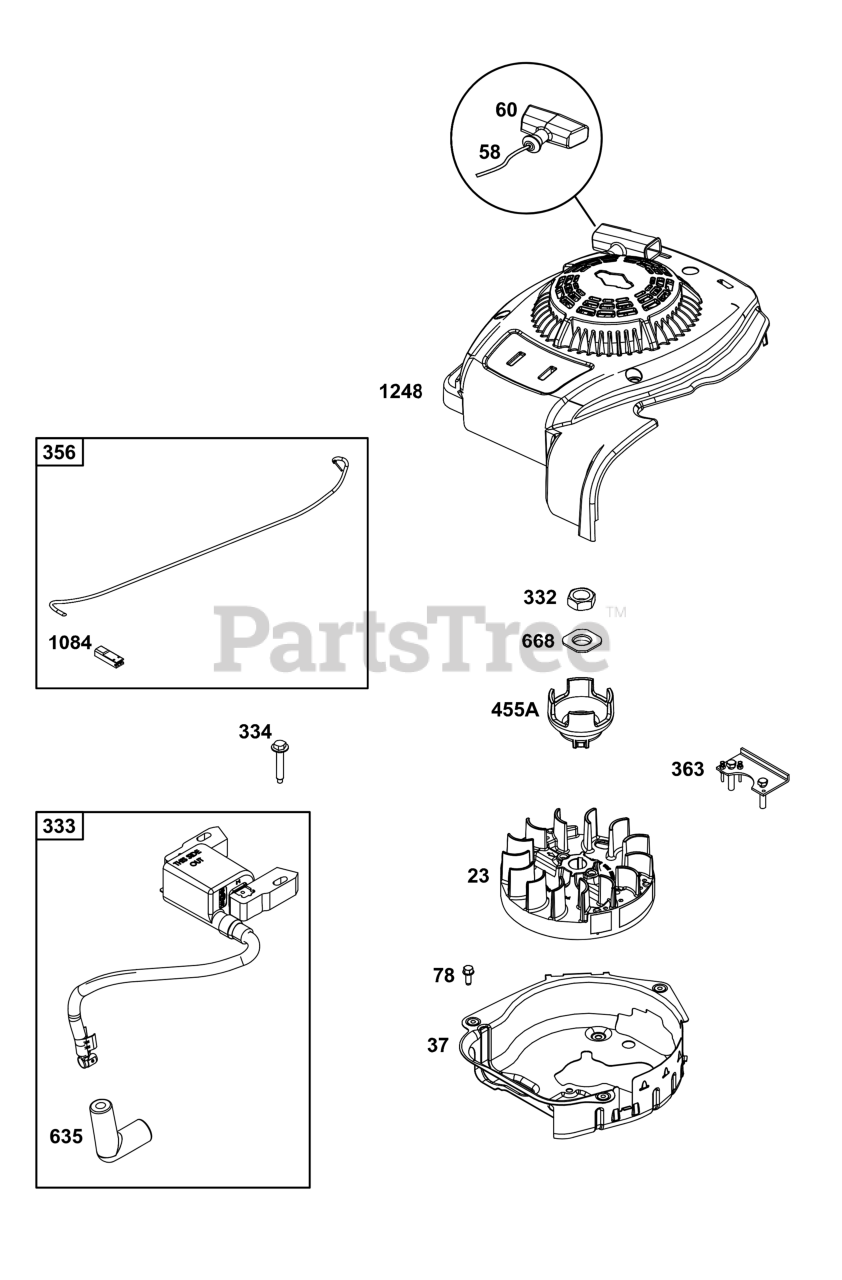

8P502-0135-H1 - Briggs & Stratton Vertical Engine Flywheel, Ignition, and Starter Group Parts Diagram

Vertical Engine

Flywheel, Ignition, and Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 590544

FLYWHEEL

$82.99

$

In Stock, only 1 left!

0

37

Briggs & Stratton 594726

GUARD, Flywheel

$18.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 591108

ROPE, Starter

$7.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 691915

GRIP, Starter Rope

$6.49

$

In Stock, Qty 10

0

78

Briggs & Stratton 793480

SCREW

Note: (Flywheel Guard)

$3.99

$

In Stock, only 2 left!

0

305

Briggs & Stratton 590586

SCREW

Note: (Blower Housing)

$3.49

$

In Stock, Qty 20+

0

332

Briggs & Stratton 690662

NUT

Note: (Flywheel)

$5.99

$

In Stock, only 2 left!

0

333

Briggs & Stratton 593872

ARMATURE, Magneto
(Superseded to 84005272)

$31.99

$

In Stock, only 1 left!

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 692390

WIRE, Stop

$

$

Not available

363

Briggs & Stratton 19619

PULLER, Flywheel

$116.99

$

Usually ships in 2-12 days

0

455A

Briggs & Stratton 593960

CUP, Flywheel

$11.99

$

In Stock, Qty 19

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 20+

0

668

Briggs & Stratton 590546

SPACER

$3.99

$

In Stock, only 4 left!

0

770C

Briggs & Stratton 594276

KIT, Rewind/Blower Housing

$99.99

$

In Stock, only 2 left!

0

1036

LABEL, Emissions

Note: (Available from a Briggs & Stratton Authorized Dealer)

$

$

Not available

1319

Briggs & Stratton 794467

LABEL, Warning

Note: (REQUIRED When Replacing Parts With Warning Labels Affixed)

$20.99

$

Usually ships in 2-12 days

0

1319A

Briggs & Stratton 797669

LABEL, Warning

Note: (REQUIRED When Replacing Parts With Warning Labels Affixed)

$18.99

$

Usually ships in 2-12 days

0
