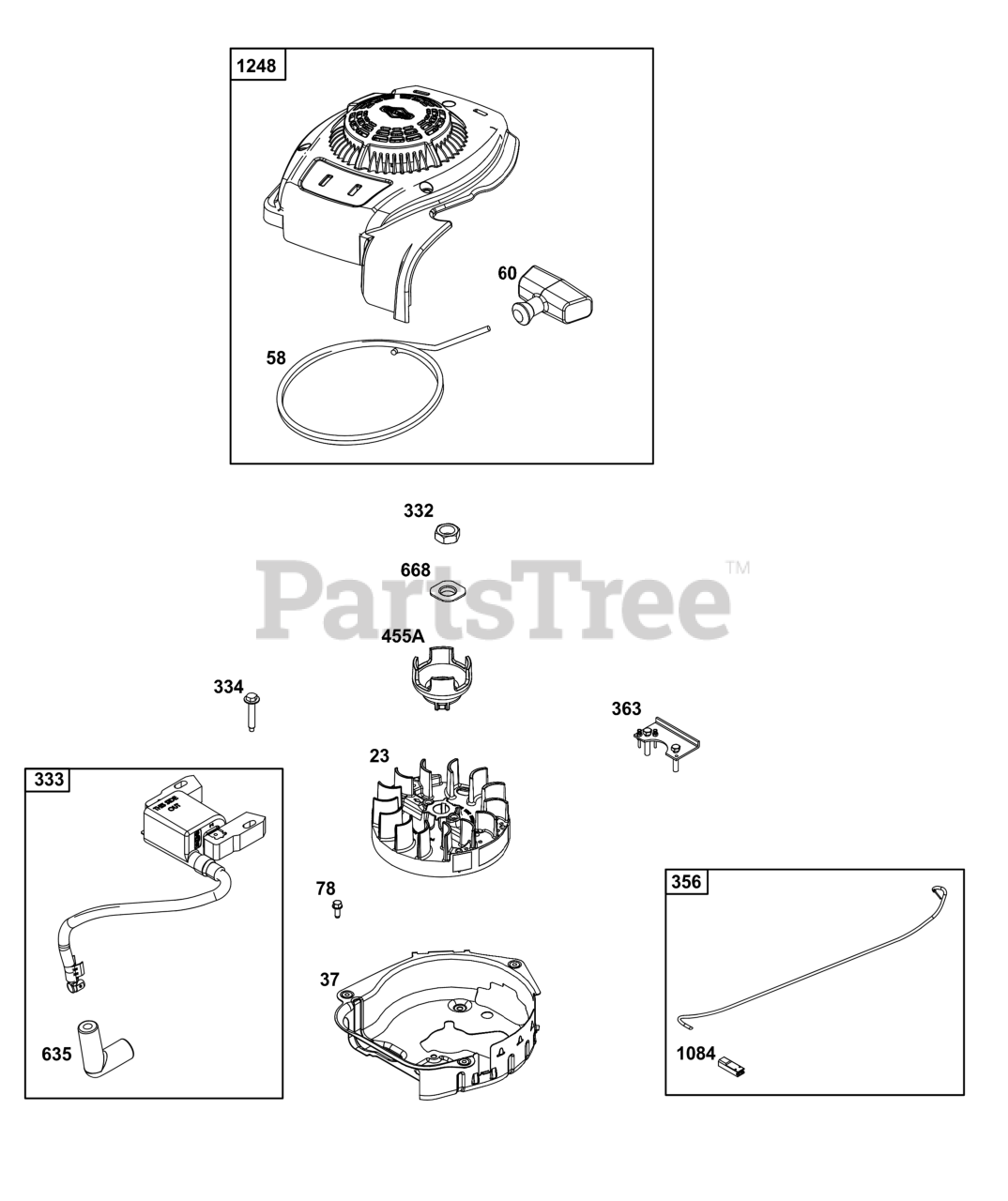

8P502-0122-H1 - Briggs & Stratton Vertical Engine Flywheel, Ignition, and Starter Group Parts Diagram

Vertical Engine

Flywheel, Ignition, and Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 590544

Flywheel

$82.99

$

In Stock, only 1 left!

0

37

Briggs & Stratton 594729

Guard-Flywheel

$21.99

$

In Stock, only 1 left!

0

58

Briggs & Stratton 591108

Rope-Starter

$7.99

$

In Stock, only 1 left!

0

60

Briggs & Stratton 691915

GRIP, Starter Rope

$6.49

$

In Stock, Qty 11

0

78

Briggs & Stratton 793480

SCREW

Note: (Flywheel Guard)

$3.99

$

In Stock, Qty 20+

0

304D

Briggs & Stratton 596457

Housing-Blower

Note: Used Before Code Date 17062700

$64.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 590586

SCREW

Note: (Blower Housing)

$3.49

$

In Stock, Qty 20+

0

332

Briggs & Stratton 690662

Nut

Note: (Flywheel)

$5.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 593872

Armature-Magneto
(Superseded to 84005272)

$31.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 692390

Wire-Stop

$

$

Not available

363

PULLER, Flywheel

Note: (Part information located in Service Parts and Tools Group.)

$

$

Not available

455A

Briggs & Stratton 593960

Cup-Flywheel

$11.99

$

In Stock, Qty 15

0

608

Briggs & Stratton 593959

Starter-Rewind

Note: Used Before Code Date 17062700

$46.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 20+

0

668

Briggs & Stratton 590546

Spacer

$3.99

$

In Stock, only 3 left!

0

770C

Briggs & Stratton 594276

Kit-Rewind/Blower Housing

Note: Used After Code Date 17062600

$99.99

$

In Stock, only 2 left!

0

1319

Briggs & Stratton 794467

LABEL, Warning

Note: (Part information located in Blower Housing Group.)

$20.99

$

Usually ships in 2-12 days

0

1319A

Briggs & Stratton 797669

LABEL, Warning

Note: (Part information located in Blower Housing Group.)

$18.99

$

Usually ships in 2-12 days

0
