8C132-8999-F1 - Briggs & Stratton Horizontal Engine Crankcase Cover/Sump and Lubrication Group Parts Diagram

Horizontal Engine

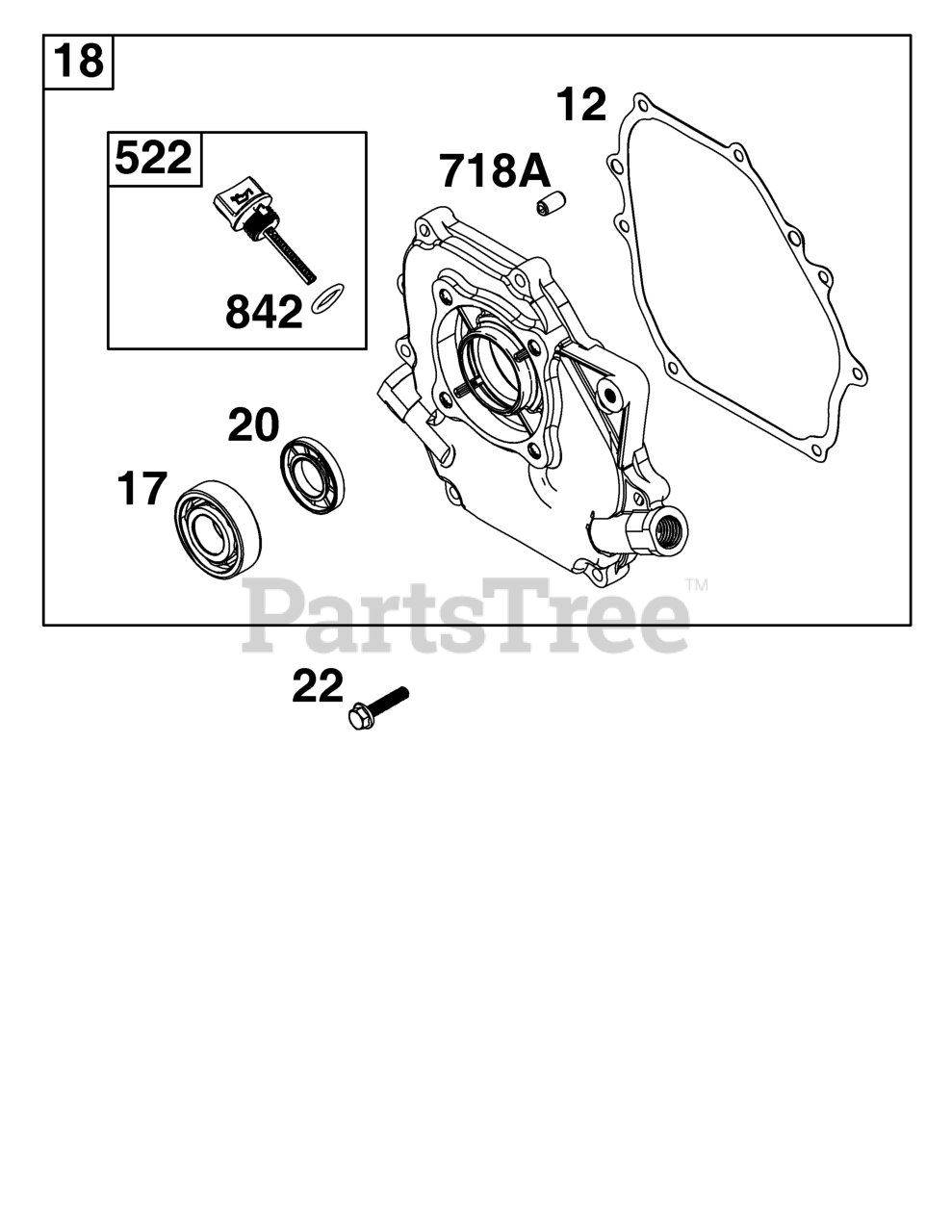

Crankcase Cover/Sump and Lubrication Group Parts Diagram

  • Title

12

Briggs & Stratton 797211

GASKET, Crankcase

$16.99

$

Usually ships in 2-12 days

0

17

BEARING, Ball

Note: (Part information located in Cylinder Group.)

$

$

Not available

18

Briggs & Stratton 594241

COVER, Crankcase

$48.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 797330

SEAL, Oil

Note: (PTO Side)

$15.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 797656

SCREW

Note: (Crankcase Cover/Sump)

$4.99

$

Usually ships in 2-12 days

0

522

Briggs & Stratton 797325

PLUG, Dipstick/Fill

$8.99

$

Usually ships in 2-12 days

0

718A

Briggs & Stratton 797326

PIN, Locating

$5.49

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 797327

SEAL, O-Ring

Note: (Dipstick Cap)

$7.49

$

Usually ships in 2-12 days

0
