899 R (126-899D100) - Cub Cadet Walk-Behind Mower Engine (1996) Engine Internal, Exhaust Components, Magneto Parts Diagram

Walk-Behind Mower Engine

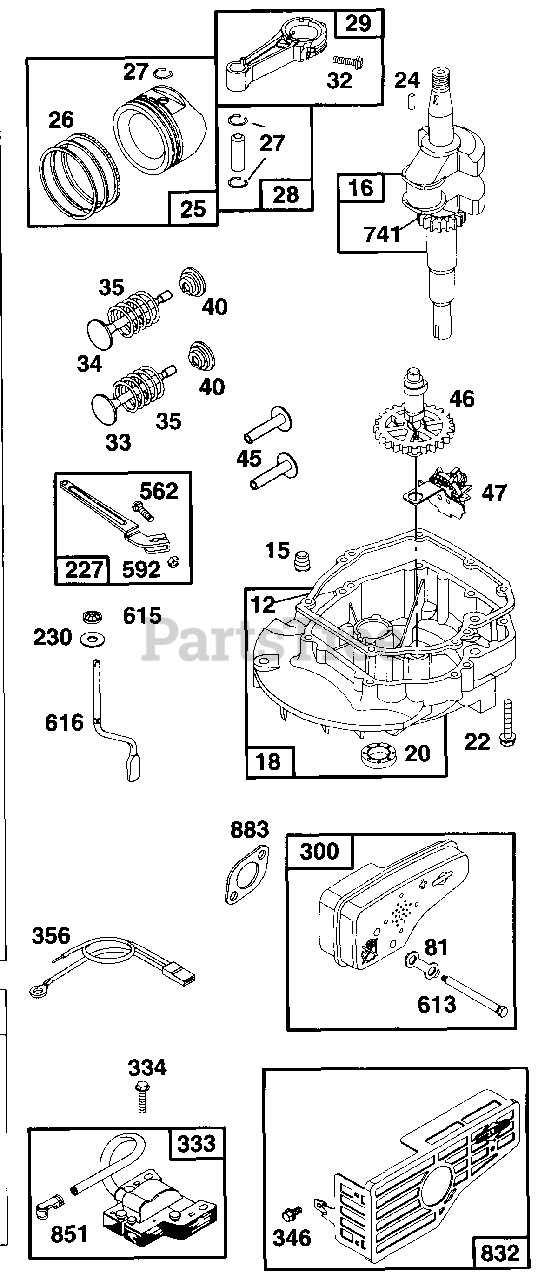

Engine Internal, Exhaust Components, Magneto Parts Diagram

  • Title
12

Cub Cadet BS-272198

Gasket-Crankcase
(Superseded to BS-692232)

Note: Included in Gasket Set -- Part No. BS-496117.

$5.99

$

In Stock, Qty 20+

0

15

Cub Cadet BS-94880

Plug-Oil Drain
(Superseded to BS-691680)

$5.99

$

In Stock, only 1 left!

0

16

Cub Cadet BS-493362

Crankshaft

Note: Note: Order BS-94388 For Timing Gear Key.

$

$

Not available

18

Cub Cadet BS-493279

Sump-Engine

$120.99

$

In Stock, only 2 left!

0

20

Cub Cadet BS-399781

Seal-Oil
(Superseded to BS-399781S)

Note: Included in Gasket Set -- Part No. BS-496117.

$7.99

$

In Stock, Qty 20+

0

22

Cub Cadet BS-94220

Screw-Hex. Head
(Superseded to BS-691092)

Note: Note: BS-94612 Screw-Hex. Head One Used in Hole Nearest Breather.

$3.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-494058

Piston Assy. (Standard)

$91.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-494059

Piston Assy. (.010" O.S.)

$55.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-494060

Piston Assy. (.020" O.S.)

$

$

Currently unavailable

Cub Cadet BS-494061

Piston Assy. (.030" O.S.)

$49.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-493261

Ring Set (Standard)

$

$

Not available

Cub Cadet BS-493388

Ring Set (.010" O.S.)

$31.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-493389

Ring Set (.020" O.S.)

$

$

Not available

Cub Cadet BS-493390

Ring Set (.030" O.S.)

$29.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-26026

Lock-Piston Pin

$

$

Not available

28

Cub Cadet BS-298909

Pin-Piston (Std.)

$8.99

$

In Stock, only 2 left!

0

Cub Cadet BS-298908

Pin-Piston (.005" O.S.)

$4.99

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-490566

Rod-Connecting

Note: Note: For Connecting Rod With .020" Undersize Crankpin Bearing-Order No. BS-490743.

$39.99

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-94699

Screw-Connecting Rod

$

$

Not available

33

Cub Cadet BS-262651

Valve-Exhaust

$

$

Not available

34

Cub Cadet BS-262652

Valve-Intake

$

$

Not available

35

Cub Cadet BS-262224

Spring-Valve
(Superseded to BS-691270)

$5.49

$

In Stock, Qty 7

0

40

Cub Cadet BS-93312

Retainer-Spring
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 9

0

45

Cub Cadet BS-262204

Tappet-Valve
(Superseded to BS-690548)

$9.99

$

Usually ships in 2-12 days

0

46

$73.99

$

In Stock, only 1 left!

0

47

Cub Cadet BS-493737

Slinger-Oil
(Superseded to BS-691997)

$25.99

$

Usually ships in 2-12 days

0

81

Cub Cadet BS-223664

Lock-Muffler Screw
(Superseded to BS-691740)

$5.49

$

In Stock, Qty 5

0

227

Cub Cadet BS-492349

Lever Assembly-Gov.
(Superseded to BS-690783)

$15.99

$

Usually ships in 2-12 days

0

230

Cub Cadet BS-67072

Washer-Gov. Crank
(Superseded to BS-690272)

$3.99

$

In Stock, only 2 left!

0

300

Cub Cadet BS-497838

Muffler-Exhaust
(Superseded to BS-692038)

$29.99

$

In Stock, only 1 left!

0

333

Cub Cadet BS-802574

Armature-Magneto
(Superseded to BS-796964)

$55.99

$

In Stock, Qty 10

0

334

Cub Cadet BS-94731

Screw-Hex.

$

$

Not available

346

Cub Cadet BS-94874

Screw-Hex.
(Superseded to BS-690664)

$5.49

$

In Stock, only 2 left!

0

356

Cub Cadet BS-398808

Wire-Ground

$11.99

$

In Stock, only 1 left!

0

562

Cub Cadet BS-94862

Bolt-Carriage

$

$

Not available

592

$

$

Not available

613

Cub Cadet BS-94231

Screw-Hex.
(Superseded to BS-691340)

$4.99

$

In Stock, Qty 7

0

615

Cub Cadet BS-94474

Nut-Push
(Superseded to BS-690340)

$4.49

$

In Stock, Qty 10

0

616

Cub Cadet BS-262578

Crank-Governor

$

$

Not available

741

Cub Cadet BS-262598

Gear-Timing
(Superseded to BS-691830)

$17.99

$

Usually ships in 2-12 days

0

832

Cub Cadet BS-494224

Guard-Muffler

$40.99

$

In Stock, only 1 left!

0

851

Cub Cadet BS-493880

Terminal-Ignition Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

883

Cub Cadet BS-272253

Gasket-Muffler
(Superseded to BS-691881)

Note: Included in Gasket Set - Part No. BS-496117.

$8.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-94388

Timing Gear Key
(Superseded to BS-690979)

$3.49

$

In Stock, Qty 7

0

Cub Cadet BS-94612

Screw-Hex. Head

$

$

Currently unavailable

Cub Cadet BS-490743

Connecting Rod

$

$

Currently unavailable

Cub Cadet BS-496117

Gasket Set

Note: Includes items 12, 20 & 883

$40.99

$

Usually ships in 2-12 days

0
