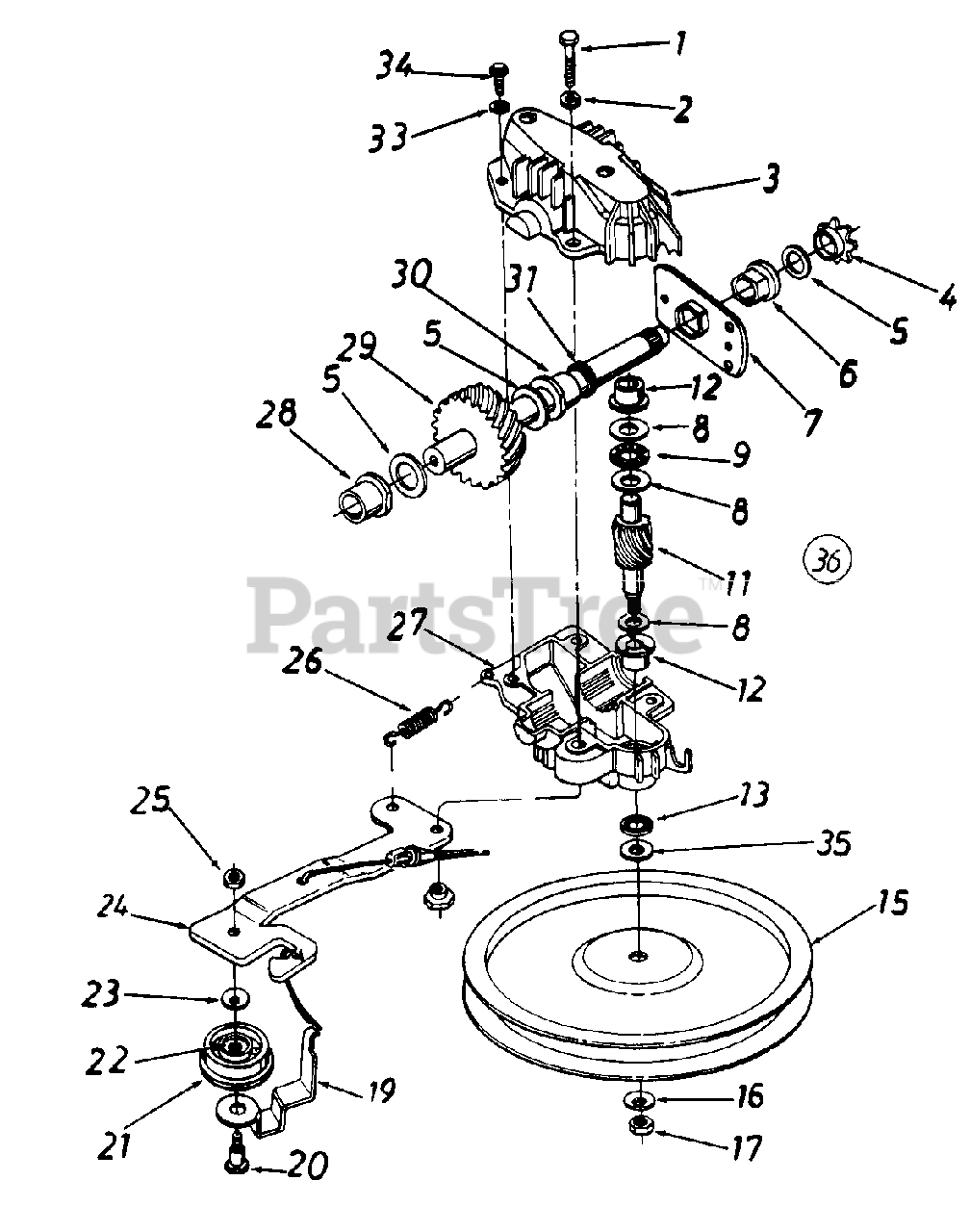

899 R (126-899D100) - Cub Cadet Walk-Behind Mower (1996) Rotary Mowers Transmission Parts Diagram

Walk-Behind Mower

Rotary Mowers Transmission Parts Diagram

  • Title

1

Cub Cadet 710-1062

Hex Bolt 1/4-20 x 1.25" Lg w/Patch

$6.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 736-0329

L-Wash 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

3

Cub Cadet 717-0418A

Upper Hsg. Half

$

$

Not available

4

Cub Cadet 713-0400

#48 Sprocket 7 Tooth x 1/2 Pitch

$

$

Not available

5

Cub Cadet 736-0336

Fl-Wash 5/8" I D x 030
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

6

Cub Cadet 741-0413

Hex Flange Brg. .631" I.D

$9.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

Cub Cadet 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 736-0314

Thrust Wash..382" I D. x 70" O.D.

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 741-0479

Thrust Bearing .375" I.D. x .812" O.D.

$11.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 717-1216

11 Tooth Pinion Shaft
(Superseded to 917-1216)

$

$

Not available

12

Cub Cadet 748-0208A

Flange Bearing

$4.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 721-0212

Oil Seal

$

$

Not available

15

Cub Cadet 756-0330A

Fl-Pulley 5.06" 0 D

Note: Not Part of Transmission Complete

$

$

Not available

16

Cub Cadet 736-0270

Bell-Wash. 265" I.D. x.75"

Note: Not Part of Transmission Complete

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-0351

Hex L-Nut 1/4-28 L.H. Thd.
(Superseded to 712-04326)

Note: Not Part of Transmission Complete

$14.99

$

In Stock, only 1 left!

0

?18

Cub Cadet 738-0440

Shld. Spacer .375" Dia x 170

Note: Not Part of Transmission Complete

$5.99

$

In Stock, only 4 left!

0

19

Cub Cadet 782-7569

Belt Guard

Note: Not Part of Transmission Complete

$7.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 738-0826

Shld. Bolt 375" Dia x 40"

Note: Not Part of Transmission Complete

$12.99

$

In Stock, only 1 left!

0

21

Cub Cadet 656-0008

Fl-Idler Plastic 1 50" Dia.
(Superseded to 956-0008)

Note: Not Part of Transmission Complete; (Incl Ref 22) (Incl Ref 22)

$20.99

$

In Stock, only 2 left!

0

22

Cub Cadet 741-0556

Needle Brg. .375" x .31

Note: Not Part of Transmission Complete

$17.99

$

In Stock, only 4 left!

0

23

Cub Cadet 736-0270

Bell-Wash. 265" I.D x 75"

Note: Not Part of Transmission Complete

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 782-7570

Idler Brk't Ass'y
(Superseded to 682-0054)

Note: Not Part of Transmission Complete

$25.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 712-0138

Hex Patch L-Nut 1/4-28 Thd

Note: Not Part of Transmission Complete

$6.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 732-0357A

Extension Spring 1.12" Lg.

Note: Not Part of Transmission Complete

$4.49

$

In Stock, Qty 13

0

27

Cub Cadet 717-0419B

Lower Hsg. Half

$

$

Not available

28

Cub Cadet 741-0415

Flange Bearing .566 Dia
(Superseded to 941-0415)

$10.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 717-0616A

Shaft Ass'y.

$

$

Not available

30

Cub Cadet 741-0414

Flange Bearing .629 Dia

$10.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 721-0213

Oil Seal .625 Dia.

$10.99

$

In Stock, Qty 15

0

33

Cub Cadet 736-0722

L-Wash. #10 I.D.

$6.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 710-0436

Hex Tap Scr #10 x 62" Lg
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 736-0410

Hex Washer .26" x 88"
(Superseded to 936-0410)

Note: Not Part of Transmission Complete

$

$

Not available

?36

Cub Cadet 717-0417B

Transmission Comp.
(Superseded to 917-0417B)

$234.99

$

Usually ships in 3-6 days

0
