899 R (126-899D100) - Cub Cadet Walk-Behind Mower (1996) Rotary Mowers Parts Diagram

Walk-Behind Mower

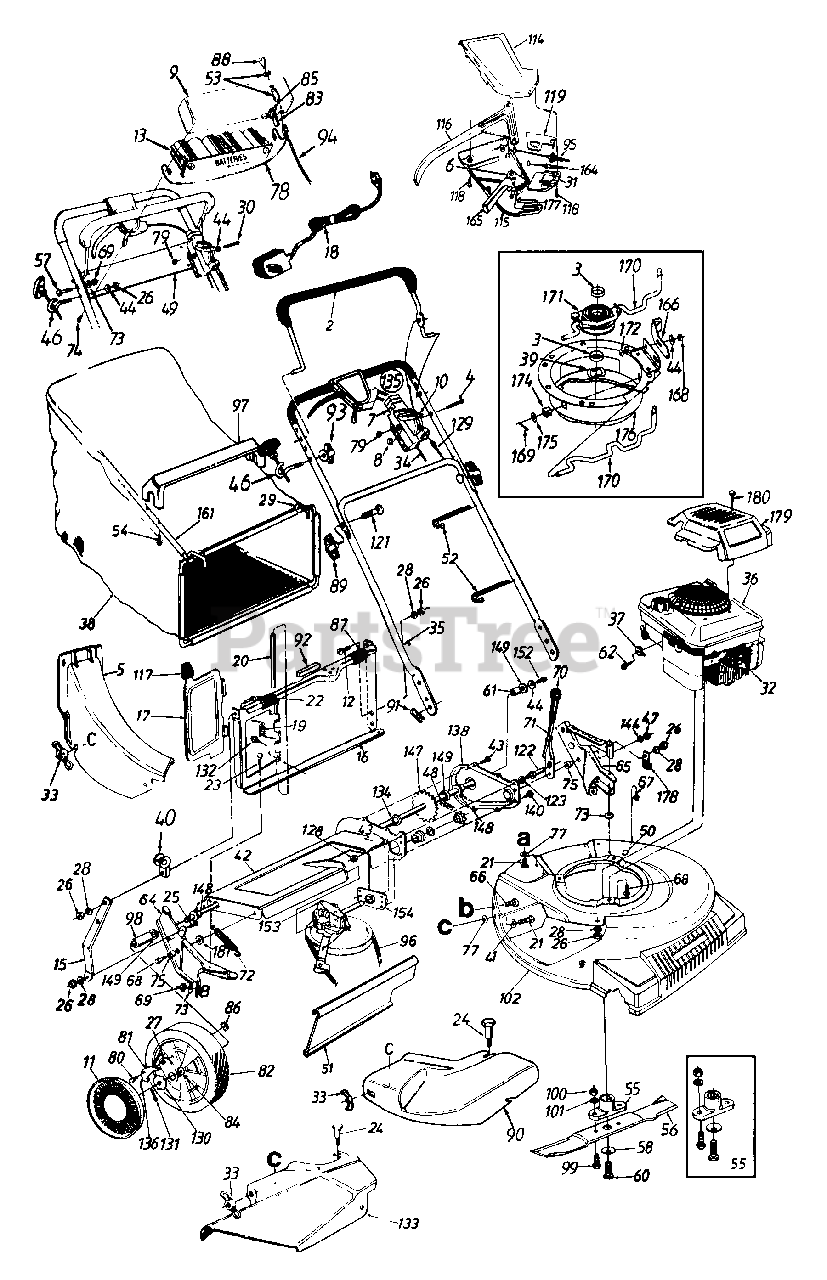

Rotary Mowers Parts Diagram

  • Title

2

Cub Cadet 647-0004

Control Handle
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

3

Cub Cadet 750-0968

Spacer .895" I.D. x 1" O.D.
(Superseded to 950-0968)

$5.99

$

Usually ships in 3-6 days

0

?4

Cub Cadet 710-0605

Oval C-Sunk Scr.

$4.49

$

In Stock, only 3 left!

0

5

Cub Cadet 731-1023

Rear Discharge Chute Ass'y.

$

$

Not available

6

Cub Cadet 713-0397

3 Tooth Rack Gear Insert
(Superseded to 913-0397)

$5.49

$

In Stock, only 4 left!

0

7

Cub Cadet 646-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 4 left!

0

8

Cub Cadet 736-0501

Spr. Wash..66" I.D.
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0891A

Battery Tray

Note: Model 899E Only

$

$

Currently unavailable

?10

Cub Cadet 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 2 left!

0

11

Cub Cadet 731-0982A

Hub Cap
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

12

Cub Cadet 710-0946

Truss Mach. Scr. 1/4-20 x .62"

$3.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 725-1276

Battery Pack - 12 Volt
(Superseded to 925-1276)

Note: Model 899E Only

$185.99

$

Usually ships in 3-6 days

0

?14

Cub Cadet 749-0439B

Upper Handle
(Superseded to 749-0439E-0637)

Variations

Cub Cadet 749-0439B-0637

Short Upper Handle, Black - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

15

Cub Cadet 16129A

Panel Support Brkt.
(Superseded to 16129A-0637)

Variations

Cub Cadet 16129A-0637

BRACKET-PANEL SUP - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 16862A

Rear Catcher Panel Ass'y.

Variations

Cub Cadet 16862A-0483

PANEL ASSEMBLY-CATCHER - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 16862A-0637

PANEL ASSEMBLY-CATCHER - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 16862A-0638

PANEL ASSEMBLY-CATCHER - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 16862A-0648

PANEL ASSEMBLY-CATCHER - TECH GRAY (0648)

$

$

Not available

Cub Cadet 16862A-0662

PANEL ASSEMBLY-CATCHER - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 16862A-0665

PANEL ASSEMBLY-CATCHER - YARDMAN GREEN (0665)

$

$

Not available

$

$

17

Cub Cadet 17095A

Rear Discharge Door

$

$

Not available

18

Cub Cadet 725-0727

Battery Charger
(Superseded to 925-0727)

Note: Model 899E Only

$77.99

$

In Stock, only 1 left!

0

19

Cub Cadet 732-0483A

Torsion Spring

$10.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 747-0514

Pivot Pin

$

$

Not available

21

Cub Cadet 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 710-0255

Truss Mach. Scr. 1/4-20 x .75"
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 710-0776A

Hex AB-Tap Scr. 1/4-20 x .38"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 738-0704

Shoulder Bolt Special

$17.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 16855

Pawl Plate

$6.49

$

In Stock, Qty 6

0

28

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

29

Cub Cadet 747-0705

Front Grass Catcher Frame
(Superseded to 747-0705-0637)

Variations

Cub Cadet 747-0705-0637

FRAME-CATCHER-FR - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 710-0501

Hex Bolt 1/4-20 x 2" Lg.

Note: Model 899E Only

$7.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 731-0906

S.P. Control Cover
(Superseded to 753-0717)

$

$

Not available

32

Cub Cadet 735-0639

Spark Plug Insulator

$

$

Not available

33

Cub Cadet 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 746-0674

Throttle Cable 61"
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

35

Cub Cadet 749-0907

Lower Handle
(Superseded to 749-0907B)

Variations

Cub Cadet 749-0907-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

36

Engine

$

$

Not available

37

Cub Cadet 751B213146

Casing Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

38

Cub Cadet 764-0257

Grass Bag
(Superseded to 964-0082)

$

$

Not available

39

Cub Cadet 736-0526

Wave Wash..88" I.D. x 1.38" O.D.

$6.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 719-0279

Rope Guide - Lower

$15.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 736-0204

FI-Wash..344" I.D. x .62"

$4.49

$

In Stock, Qty 8

0

42

Cub Cadet 17055B

Chain - Axle Ass'y.

Variations

Cub Cadet 17055B-0483

AXLE ASSEMBLY-CHAIN CHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 17055B-0498

AXLE ASSEMBLY-CHAIN (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 17055B-0629

AXLE ASSEMBLY-CHAIN SILVER FLAK - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 17055B-0637

AXLE ASSY-CHAIN - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 17055B-0638

AXLE ASSY-CHAIN - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 17055B-0648

AXLE ASSEMBLY-CHAIN (TECH GRAY) - TECH GRAY (0648)

$

$

Not available

Cub Cadet 17055B-0650

AXLE ASSEMBLY-CHAIN RED METALL - RED METALLIC (0650)

$

$

Not available

Cub Cadet 17055B-0662

AXLE ASSEMBLY-CHAIN (OYSTER GRAY) - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 17055B-0665

USE 17055B-0637 AXLE ASSY-CHA - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 17055B-0667

AXLE ASSEMBLY-CHAIN MIDNIGHT BL - MIDNIGHT BLUE (0667)

$

$

Not available

Cub Cadet 17055B-0691

AXLE ASSEMBLY-CHAIN (BLACK JACK) - BLACK JACK (0691)

$

$

Not available

$

$

43

Cub Cadet 710-0352

Hex B-Tap Scr. 1/4" x .38"

$4.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

?45

Cub Cadet 710-0776A

Hex AB-Tap Scr. 1/4 x .62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 710-1205

Rope Guide - Upper

$3.99

$

In Stock, only 3 left!

0

47

Cub Cadet 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

48

Cub Cadet 713-0353

#48 Chain .500" Pitch x 30 Links
(Superseded to 913-0353)

$

$

Not available

49

Cub Cadet 782-9012

Lower Battery Tray
(Superseded to 782-9012-0637)

Note: Model 899E Only

Variations

Cub Cadet 782-9012-0637

BATTERY TRAY - POWDER BLACK (0637)

$

$

Not available

$

$

50

Cub Cadet 731-0564

Plug

$

$

Not available

51

Cub Cadet 731-1488

Rear Flap

$28.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

53

Cub Cadet 725-0873

Ignition Switch
(Superseded to 925-0873)

Note: Model 899E Only

$

$

Not available

54

Cub Cadet 710-1025

Hex AB-Tap Scr. #12 x 1.25"

$6.49

$

Usually ships in 3-6 days

0

55

Cub Cadet 753-0484

Blade Adapter Kit

$23.99

$

In Stock, only 1 left!

0

56

Cub Cadet 742-0721

21" Mulching Blade
(Superseded to 942-0721)

$32.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 710-0671

Curved Carr. Bolt 5/16-18 x 1.38" Lg.

Note: Model 899E Only

$

$

Not available

58

Cub Cadet 736-0452

Bell-Wash..39" l.D.

$4.99

$

In Stock, Qty 7

0

60

Cub Cadet 710-1044

Hex Bolt 3/8-24 x 1.5"

$3.99

$

In Stock, Qty 9

0

61

Cub Cadet 748-0190

Spacer .513" I.D.

$6.49

$

In Stock, only 1 left!

0

62

Cub Cadet 710-1237

Hex Wash Hd. Scr. 010-32 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

?63

Cub Cadet 736-0119

L-Wash 5/16" I.D
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

64

Cub Cadet 16136C

R.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16136C-0637)

$

$

Not available

65

Cub Cadet 16137C

L.H. Handle Wheel Brkt Ass'y.

$

$

Not available

66

Cub Cadet 710-0260

Carriage Bolt 5/16-18 x .62"
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

67

Cub Cadet 710-0603

Hex B-Tap Scr 5/16-18

$4.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 710-0654A

Hex TT-Tap Scr 3/8-16

$4.49

$

In Stock, only 3 left!

0

69

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 720-0223

Grip

$14.99

$

In Stock, Qty 6

0

71

Cub Cadet 732-0606

Height Adj. Lever

$

$

Not available

72

Cub Cadet 732-0481

Extension Spring 3.80" Lg.
(Superseded to 932-0481)

$

$

Not available

73

Cub Cadet 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

74

Cub Cadet 710-1220

Truss Mach. Tap Scr .75" Lg.

Note: Model 899E Only

$4.99

$

In Stock, only 4 left!

0

75

Cub Cadet 750-0624

Shld. Spacer .5" Dia.

$

$

Not available

77

Cub Cadet 726-0233

Bolt Retainer 1/4 x .50" 0 D.

$4.49

$

In Stock, only 3 left!

0

78

Cub Cadet 725-1442

Wire Harness
(Superseded to 925-1442)

Note: Model 899E Only

$

$

Not available

79

Cub Cadet 712-0324

Hex L-Nut 1/4-20 Thd

$3.99

$

In Stock, Qty 17

0

80

Cub Cadet 738-0137

Shld. Scr. 342" Dia. x .268

$

$

Not available

81

Cub Cadet 748-0188B

Pawl - R H
(Superseded to 948-0188B)

$11.99

$

Usually ships in 3-6 days

0

Cub Cadet 748-0381

Pawl - L H.

Note: (Not Shown)

$11.99

$

In Stock, only 1 left!

0

82

Cub Cadet 734-1514B

Wheel Ass'y Comp.
(Superseded to 734-1826)

$33.99

$

In Stock, only 2 left!

0

83

Cub Cadet 725-1206

Plugs
(Superseded to 925-1206)

$

$

Not available

84

Cub Cadet 741-0486B

Sleeve Bearing 1/2" I D.

$

$

Not available

85

Cub Cadet 725-1428

Fuse Holder
(Superseded to 925-1428)

Note: Model 899E Only

$

$

Not available

Cub Cadet 725-0298

Fuse 7-1/2 Amp
(Superseded to 925-0298)

Note: (Not Shown); Model 899E Only

$

$

Not available

86

Cub Cadet 712-0414

Flat Nut 1/4-20 Thd.

$4.49

$

In Stock, only 4 left!

0

87

Cub Cadet 731-0880

Panel Clip

$3.99

$

Usually ships in 3-6 days

0

88

Cub Cadet 725-0201

Ignition Key
(Superseded to 925-0201)

Note: Model 899E Only

$9.49

$

In Stock, only 1 left!

0

89

Cub Cadet 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

90

Cub Cadet 731-1343

Mulching Plug
(Superseded to 731-1343A)

$

$

Not available

91

Cub Cadet 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

92

Cub Cadet 722-0139

Foam Strip 1/4" x 1" Lg.

$

$

Not available

93

Cub Cadet 720-0279

Wing Nut 1/4-20 Thd (899R)

$4.49

$

Usually ships in 3-6 days

0

94

Cub Cadet 725-1538

Harness Extension

Note: Model 899E Only

$

$

Not available

95

Cub Cadet 746-0710A

S.P. Cable - 50" Lg
(Superseded to 946-0710A)

$40.99

$

In Stock, only 4 left!

0

96

Cub Cadet 754-0343

"V"-Belt
(Superseded to 954-0343)

$29.99

$

In Stock, only 4 left!

0

97

Cub Cadet 731-0801

Bag Handle

$

$

Not available

98

Cub Cadet 711-0313

Sleeve .526" I.D.

$

$

Not available

99

Cub Cadet 710-1055

Hex Bolt 3/8-24 x 1.0" Lg

$4.99

$

Usually ships in 3-6 days

0

100

Cub Cadet 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

101

Cub Cadet 736-0169

L-Wash. 3/8" I.D

$3.99

$

In Stock, Qty 20+

0

102

Cub Cadet 17051B

21" Deck Ass'y

Variations

Cub Cadet 17051B-0498

DECK-ASSEMBLY-21IN(CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 17051B-0638

DECK-ASSEMBLY-21IN(MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 17051B-0662

DECK-ASSEMBLY-21IN(OYSTER GRAY) - OYSTER GRAY (0662)

$

$

Not available

$

$

114

Cub Cadet 731-0904

Self-Propelled Control Cover
(Superseded to 753-0717)

$

$

Not available

115

Cub Cadet 731-0905

Self-Propelled Control Cover
(Superseded to 753-0717)

$

$

Not available

116

Cub Cadet 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

117

Cub Cadet 720-0190

Door Grip
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

118

Cub Cadet 710-0841

Fl-"C"-Sunk Hd. Tap Scr #10 x.75" Lg.

$4.49

$

Usually ships in 3-6 days

0

119

Cub Cadet 16864

6-Speed Rack Cable Brkt.

$11.99

$

Usually ships in 3-6 days

0

?120

Cub Cadet 736-0211

FI-Wash..285" ID x 1.25"

$6.99

$

In Stock, Qty 7

0

121

Cub Cadet 710-1174

Curved Hd Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

122

Cub Cadet 711-0805

Shld. Pin 1.43" Lg.

$

$

Not available

123

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

128

Cub Cadet 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

129

Cub Cadet 746-0912

Control Cable - 44"
(Superseded to 946-0912)

$26.99

$

In Stock, only 1 left!

0

130

Cub Cadet 748-0318

Ratchet Wheel 1.62" O.D
(Superseded to 948-0318)

$10.99

$

In Stock, only 2 left!

0

131

Cub Cadet 714-0115

Cotter Pin 1/8" Dia. x 1"

$3.99

$

Usually ships in 3-6 days

0

132

Cub Cadet 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

133

Cub Cadet 731-0885

Side Chute Deflector Ass'y.

$

$

Not available

134

Cub Cadet 741-0522

Hex Flange Bearing

$

$

Not available

?135

Cub Cadet 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: (Incl. Ref. 4, 7, 8, 10, 79)

$36.99

$

In Stock, only 1 left!

0

136

Cub Cadet 10622B

Spring - Nylon

$5.49

$

In Stock, Qty 20+

0

138

Cub Cadet 17053A

Chain Cover

Variations

Cub Cadet 17053A-0480

COVER-CHAIN - BRILLIANT GREEN (0480)

$

$

Not available

Cub Cadet 17053A-0483

COVER-CHAIN - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 17053A-0637

COVER-CHAIN (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 17053A-0638

COVER-CHAIN - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 17053A-0650

COVER-CHAIN - RED METALLIC (0650)

$

$

Not available

Cub Cadet 17053A-0662

COVER-CHAIN - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 17053A-0665

COVER-CHAIN - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 17053A-0674

COVER-CHAIN - YARDMAN YELLOW (0674)

$

$

Not available

$

$

140

Cub Cadet 710-0599

Hex S-Tap Scr. 1/4-20 x .50"

$4.49

$

In Stock, Qty 20+

0

144

Cub Cadet 736-0300

FI-Wash..385" I.D. x .87"

$4.49

$

In Stock, Qty 20+

0

147

Cub Cadet 738-0719A

Rear Shaft Ass'y. 21.94" Lg.
(Superseded to 938-0719A)

$

$

Not available

148

Cub Cadet 741-0324

Hex Flange Brg..506" I.D.
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

149

Cub Cadet 736-0160

FI-Wash..531" I.D. x.930"

$4.49

$

In Stock, only 2 left!

0

152

Cub Cadet 710-0751

Hex Bolt 1/4-20 x .62" Lg. (Grade 5)

$3.99

$

In Stock, Qty 20+

0

153

Cub Cadet 717-0417B

Transmission Comp.
(Superseded to 917-0417B)

Note: (See Breakdown "Transmission Comp." Parts List & Illustration)

$234.99

$

Usually ships in 3-6 days

0

154

Cub Cadet 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

Cub Cadet 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

161

Cub Cadet 749-0764A

Rear Catcher Frame
(Superseded to 749-0764A-0637)

Variations

Cub Cadet 749-0764A-0637

FRAME-CATCHER-RR - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

164

Cub Cadet 746-0706

Spd. Control Cable - 50" Lg

$

$

Not available

165

Cub Cadet 731-0924

6-Spd. Sh ft Lever

$

$

Not available

166

Cub Cadet 17070

Adjustable Cable Brkt
(Superseded to 17070-0637)

Variations

Cub Cadet 17070-0637

BRACKET-ADJ CABLE - POWDER BLACK (0637)

$

$

Not available

$

$

168

Cub Cadet 712-0291

Hex Cent L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

169

Cub Cadet 714-0507

Cot-Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

170

Cub Cadet 747-0684

Shift Rod

$

$

Not available

171

Cub Cadet 656-0611

Pulley Ass'y
(Superseded to 956-0611)

$268.99

$

Usually ships in 3-6 days

0

172

Cub Cadet 710-0167

Carr. Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

174

Cub Cadet 731-1137

Flanged Bushing
(Superseded to 931-1137)

$

$

Not available

175

Cub Cadet 736-0278

FI-Wash..328" I.D. x.68" O.D

$5.99

$

Usually ships in 3-6 days

0

176

Cub Cadet 682-7514

Housing Ass'y.

$

$

Not available

177

Cub Cadet 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

178

Cub Cadet 726-0175

Clamp

$

$

Not available

179

Cub Cadet 751B281440

Engine Cover

$

$

Not available

180

Cub Cadet 710-1256

Screw #10 x 1.25" Lg.

$5.99

$

In Stock, only 3 left!

0

181

Cub Cadet 736-0258

FI-Wash. .383" I D x 1" O.D

$4.49

$

In Stock, only 4 left!

0
