89814 - Lawn-Boy Side Bag Kit CATCHER & CHUTE ASSEMBLY MODEL NO. 89814 Parts Diagram

Side Bag Kit

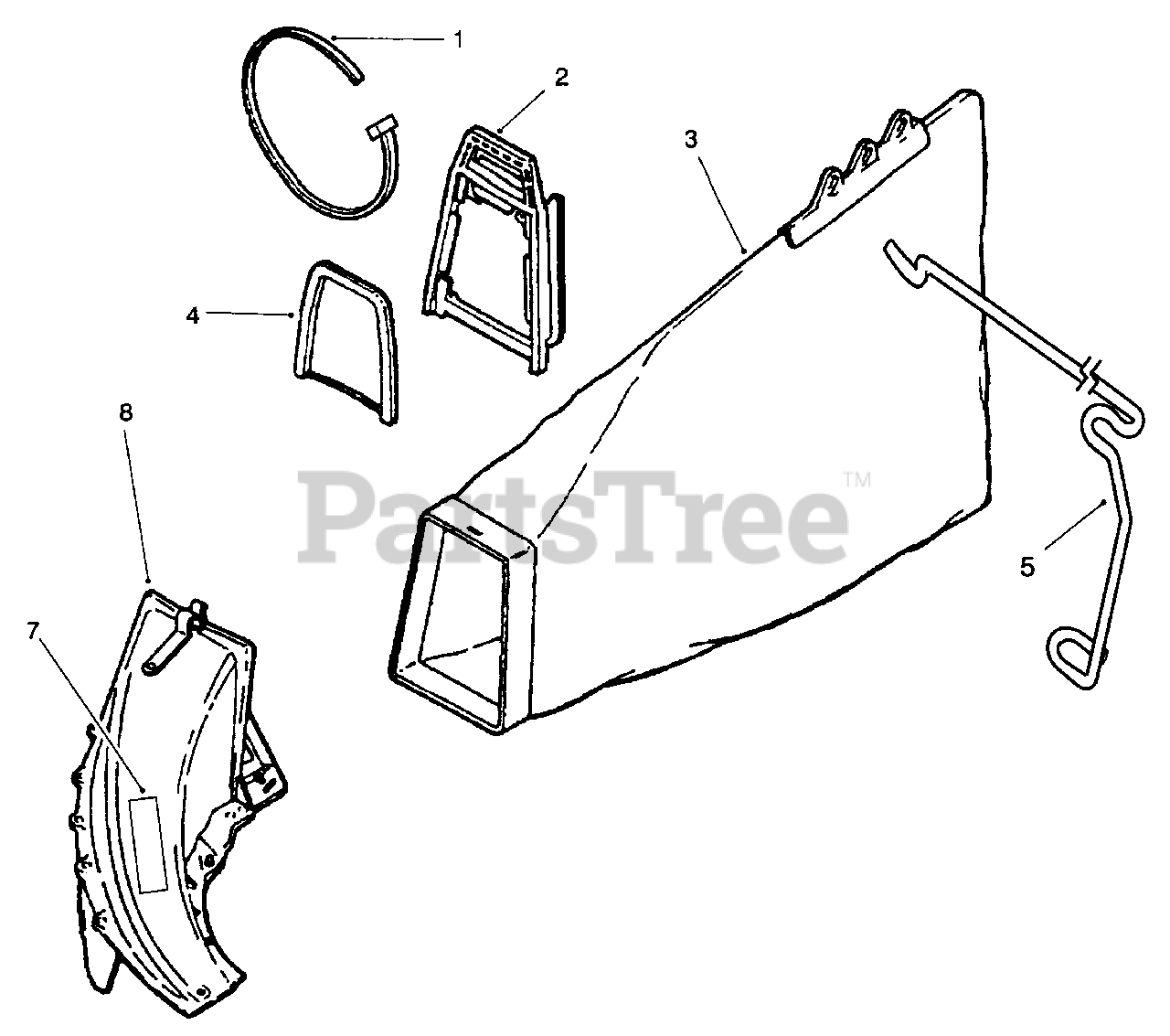

CATCHER & CHUTE ASSEMBLY MODEL NO. 89814 Parts Diagram

  • Title

1

Lawn-Boy 92-1039

Tie Strap

Note: Obtain from Whole Goods Model No. 89816

$

$

Not available

2

Lawn-Boy 612671

Adaptor-Chute

Note: Obtain from Whole Goods Model No. 89816

$

$

Not available

3

Bag-Grass (Incl. Ref. #1 & 2)

Note: Obtain from Whole Goods Model No. 89816 Obtain from Whole Goods Model No. 89816

$

$

Not available

4

Lawn-Boy 612830

Brace-Chute

Note: Obtain from Whole Goods Model No. 89816

$

$

Not available

5

Lawn-Boy 93-3753

Rod-Grass Bag

Note: Obtain from Whole Goods Model No. 89816

$72.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 92-2919

Decal-Danger

Note: Obtain from Whole Goods Model No. 89816

$

$

Not available

8

Lawn-Boy 683743

Kit-Chute (Incl. Ref. #4) Used on 19" Supreme, 21" Steel or Cast Deck with Thru-Deck Discharge & 21" Supreme Mowers with Blade Brake Clutch.

Note: Obtain from Whole Goods Model No. 89816

$

$

Not available
