898 C (123-898C100) - Cub Cadet Walk-Behind Mower Engine (1993) B&S 5 HP Piston, Connecting Rod, & Engine Sump Ass'y Part 1 Parts Diagram

Walk-Behind Mower Engine

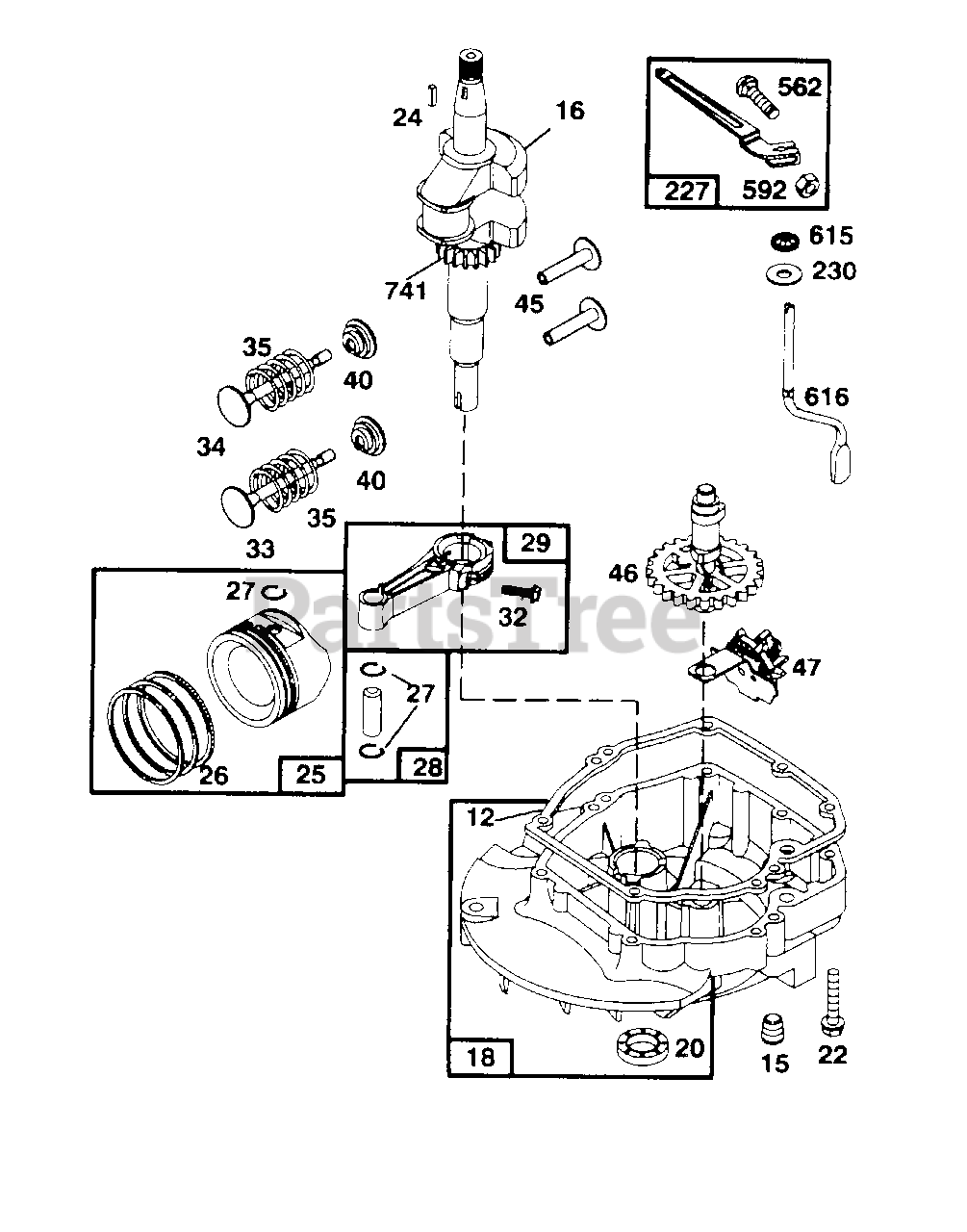

B&S 5 HP Piston, Connecting Rod, & Engine Sump Ass'y Part 1 Parts Diagram

  • Title

12

Cub Cadet BS-272198

Gasket--Crankcase
(Superseded to BS-692232)

$5.99

$

In Stock, Qty 20+

0

15

Cub Cadet BS-94613

Plug--Oil Drain
(Superseded to BS-691680)

$5.99

$

In Stock, only 1 left!

0

16

Cub Cadet BS-493433

Crankshaft

Note: Order BS-94388 For Timing Gear Key.

$

$

Not available

18

Cub Cadet BS-493279

Sump--Engine

$120.99

$

In Stock, only 2 left!

0

20

Cub Cadet BS-399781

Seal--Oil
(Superseded to BS-399781S)

$7.99

$

In Stock, Qty 20+

0

22

Cub Cadet BS-94220

Screw--Sump Mtg.
(Superseded to BS-691092)

Note: Screw--Sump Mounting, BS-94612. One Used in Hole Nearest Breather

$3.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-222698

Key--Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-493262

Piston Ass'y. (Standard)

$74.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-493385

Piston Ass'y. (.010" O.S.)

$62.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-493386

Piston Ass'y. (.020" O.S.)

$

$

Not available

Cub Cadet BS-493387

Piston Ass'y. (.030" O.S.)

$62.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-493261

Ring Set--Piston (Standard)

$

$

Not available

Cub Cadet BS-493388

Ring Set--Piston (.010" O.S.)

$31.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-493389

Ring Set--Piston (.020" O.S.)

$

$

Not available

Cub Cadet BS-493390

Ring Set--Piston (.030" O.S.)

$29.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-26026

Lock--Piston Pin

$

$

Not available

28

Cub Cadet BS-298909

Pin Ass'y.--Piston (Std.)

$8.99

$

In Stock, only 2 left!

0

Cub Cadet BS-298908

Pin Ass'y.--Piston (.005" O.S.)

$4.99

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-490566

Rod Ass'y.--Connecting

Note: For Connecting Rod with .020" Undersize Crankpin Bearing. Order No, BS-4907

$39.99

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-94405

Screw--Connecting Rod

$

$

Not available

33

Cub Cadet BS-262651

Valve--Exhaust

$

$

Not available

34

Cub Cadet BS-262652

Valve--Intake

$

$

Not available

35

Cub Cadet BS-262224

Spring--Valve
(Superseded to BS-691270)

$5.49

$

In Stock, Qty 7

0

40

Cub Cadet BS-93312

Retainer--Valve Spring
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 9

0

45

Cub Cadet BS-262204

Tappet--Valve
(Superseded to BS-690548)

$9.99

$

Usually ships in 2-12 days

0

46

Cub Cadet BS-492830

Gear--Cam

$73.99

$

In Stock, only 1 left!

0

47

Cub Cadet BS-493737

Oil Slinger Gear and Bracket
(Superseded to BS-691997)

$25.99

$

Usually ships in 2-12 days

0

227

Cub Cadet BS-492349

Lever Assembly--Gov.
(Superseded to BS-690783)

$15.99

$

Usually ships in 2-12 days

0

230

Cub Cadet BS-67072

Washer--Gov. Crank
(Superseded to BS-690272)

$3.99

$

In Stock, only 2 left!

0

562

Cub Cadet BS-92613

Bolt--Governor Lever

$

$

Not available

592

Cub Cadet BS-231082

Nut--Hex

$

$

Not available

615

Cub Cadet BS-94474

Pushnut (Governor Crank)
(Superseded to BS-690340)

$4.49

$

In Stock, Qty 10

0

616

Cub Cadet BS-262578

Crank--Governor

$

$

Not available

741

Cub Cadet BS-262598

Gear--Timing
(Superseded to BS-691830)

$17.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-493263

Gasket Set

$

$

Not available

Cub Cadet BS-94388

Timing Gear Key
(Superseded to BS-690979)

$3.49

$

In Stock, Qty 7

0

Cub Cadet BS-94612

.020" Undersize Crankpin Bearing

$

$

Currently unavailable
