8965-2 - Craftsman 2,400 Watt Portable Generator Engine Parts Diagram

2,400 Watt Portable Generator

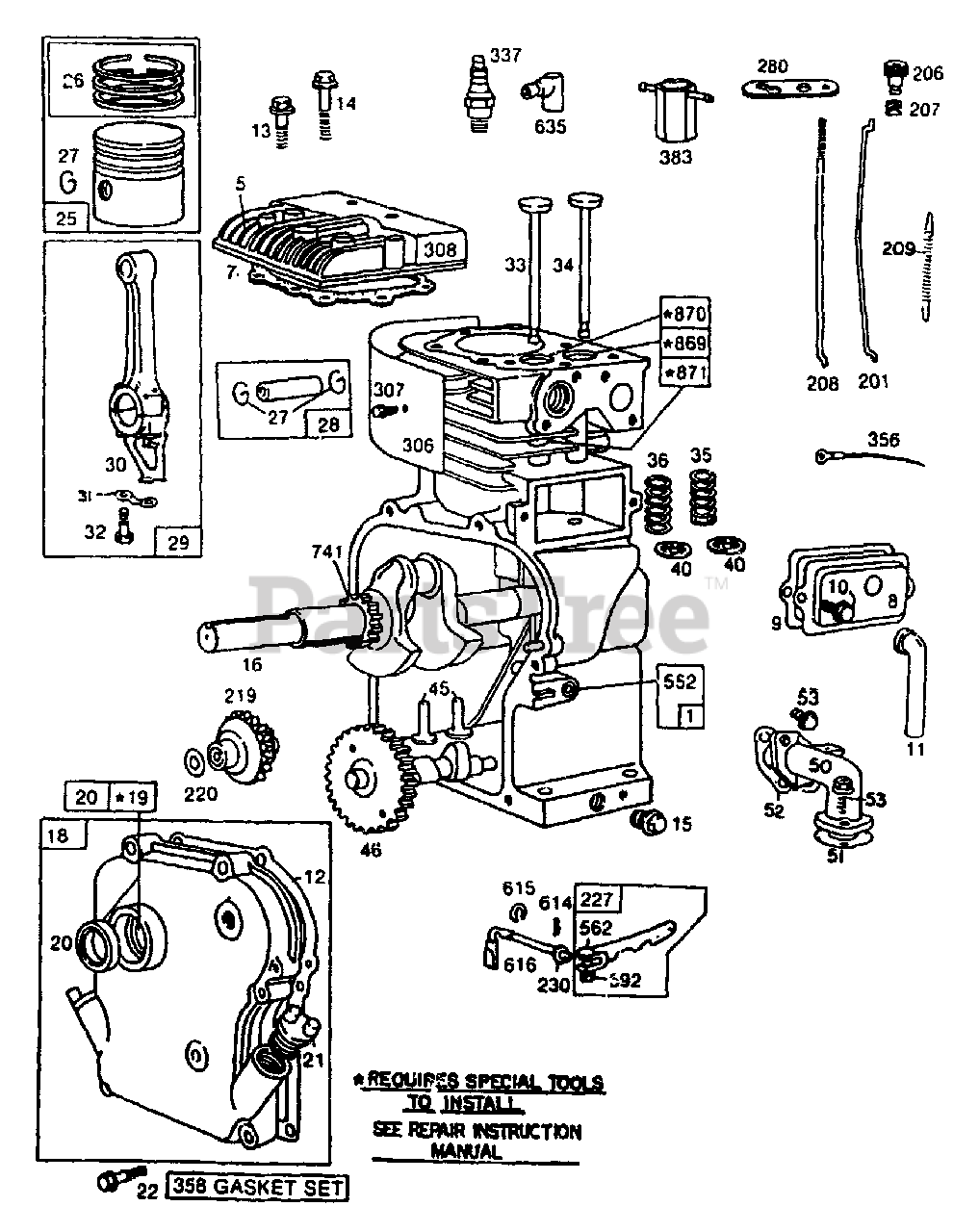

Engine Parts Diagram

  • Title

1

Briggs & Stratton 395990

Cylinder Assembly
(Superseded to 497144)

Note: Contact Generac for quantity required

$537.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 211542

Head- Cylinder
(Superseded to 691716)

Note: Contact Generac for quantity required

$

$

Not available

7

Briggs & Stratton 270383

Gasket- Cylinder Head
(Superseded to 272157S)

Note: Contact Generac for quantity required

$6.49

$

In Stock, Qty 5

0

8

Briggs & Stratton 294178

Breather- Valve Chamber
(Superseded to 791779)

Note: Contact Generac for quantity required

$15.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27549

Gasket- Valve Cover
(Superseded to 27549S)

Note: Contact Generac for quantity required

$3.99

$

In Stock, Qty 11

0

10

Briggs & Stratton 93394

Screw- Breather Mounting
(Superseded to 691666)

Note: Contact Generac for quantity required

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 271489

Grommet- Breather Tube

Note: Contact Generac for quantity required

$8.99

$

In Stock, only 4 left!

0

12

Briggs & Stratton 270080

Gasket- Crankcase 0.015" thick (Standard)
(Superseded to 692213)

Note: Contact Generac for quantity required

$3.99

$

In Stock, only 4 left!

0

12

Briggs & Stratton 270125

Gasket- Crankcase 0.005" thick

Note: Contact Generac for quantity required

$9.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 270126

Gasket- Crankcase 0.009" thick

Note: Contact Generac for quantity required

$8.49

$

In Stock, only 2 left!

0

13

Briggs & Stratton 93368

Screw- Cylinder Head (2-3/32" long)
(Superseded to 691640)

Note: Contact Generac for quantity required

$3.49

$

In Stock, Qty 12

0

14

Briggs & Stratton 93369

Screw- Cylinder Head (2-15/32" long)
(Superseded to 691659)

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 91249

Plug- Pipe, 1/4" Std. Square Head
(Superseded to 691686)

Note: Contact Generac for quantity required

$5.49

$

In Stock, only 2 left!

0

16

Briggs & Stratton 397104

Crankshaft
(Superseded to 494035)

Note: Contact Generac for quantity required

$178.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 230978

Crankshaft Gear Pin
(Superseded to 499047)

Note: Contact Generac for quantity required

$4.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 392778

Cover Assembly- Crankcase
(Superseded to 694377)

Note: Contact Generac for quantity required

$185.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 297603

Bushing- Crankcase Cover

Note: Contact Generac for quantity required

$

$

Not available

20

Briggs & Stratton 392741

Oil Seal and Spacer
(Superseded to 692019)

Note: Contact Generac for quantity required

$9.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 66768

Plug- Oil Filler
(Superseded to 281658S)

Note: Contact Generac for quantity required

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 93032

Screw- Crankcase Cover Mounting Sem
(Superseded to 692551)

Note: Contact Generac for quantity required

$3.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 298904

Piston- Standard
(Superseded to 793214)

Note: Contact Generac for quantity required

$

$

Not available

25

Briggs & Stratton 298905

Piston- 0.010" OS

Note: Contact Generac for quantity required

$50.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 298906

Piston- 0.020" OS

Note: Contact Generac for quantity required

$

$

Not available

25

Briggs & Stratton 298907

Piston- 0.030" OS

Note: Contact Generac for quantity required

$

$

Not available

25

Briggs & Stratton 299742

Chrome Piston Ring Set - Standard Size
(Superseded to 298982)

Note: Contact Generac for quantity required

$48.99

$

In Stock, Qty 8

0

26

Briggs & Stratton 298982

Ring Set- Piston (Standard)

Note: Contact Generac for quantity required

$48.99

$

In Stock, Qty 8

0

26

Briggs & Stratton 298983

Ring Set- Piston (0.010" OS)

Note: Contact Generac for quantity required

$

$

Not available

26

Briggs & Stratton 298984

Ring Set- Piston (0.020" OS)

Note: Contact Generac for quantity required

$35.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 298985

Ring Set- Piston (0.030" OS)

Note: Contact Generac for quantity required

$23.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

Lock- Piston Pin
(Superseded to 691588)

Note: Contact Generac for quantity required

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298909

Pin- Piston (Standard)

Note: Contact Generac for quantity required

$8.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298908

Pin- Piston (0.005" OS)

Note: Contact Generac for quantity required

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 299430

Rod- Connecting

Note: Contact Generac for quantity required

$40.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 390459

Connecting Rod with 0.020" undersize Crankpin Bore

Note: Contact Generac for quantity required

$

$

Not available

30

Briggs & Stratton 221890

Dipper- Connecting Rod
(Superseded to 691759)

Note: Contact Generac for quantity required

$8.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 221876

Lock- Conn. Rod Screw

Note: Contact Generac for quantity required

$4.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 92296

Screw- Connecting Rod
(Superseded to 691664)

Note: Contact Generac for quantity required

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 211119

Valve- Exhaust
(Superseded to 211119S)

Note: Contact Generac for quantity required

$

$

Not available

34

Briggs & Stratton 261044

Valve- Intake
(Superseded to 261044S)

Note: Contact Generac for quantity required

$

$

Not available

35

Briggs & Stratton 260552

Spring- Intake Valve
(Superseded to 690520)

Note: Contact Generac for quantity required

$5.49

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26478

Spring- Exhaust Valve
(Superseded to 692180)

Note: Contact Generac for quantity required

$6.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 93312

Retainer- Intake Valve Spring
(Superseded to 692194)

Note: Contact Generac for quantity required

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 260842

Tappet- Valve

Note: Contact Generac for quantity required

$

$

Currently unavailable

46

Briggs & Stratton 212733

Gear- Cam
(Superseded to 691164)

Note: Contact Generac for quantity required

$59.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 212358

Elbw- Intake

Note: Contact Generac for quantity required

$

$

Not available

51

Briggs & Stratton 68987

Gasket- Carburetor Mounting

Note: Contact Generac for quantity required

$5.99

$

In Stock, only 2 left!

0

52

Briggs & Stratton 27355

Gasket- Carburetor Mounting
(Superseded to 27355S)

Note: Contact Generac for quantity required

$3.99

$

In Stock, Qty 20+

0

53

Briggs & Stratton 93357

Screw- Carb & Intake Elbow Mtg.
(Superseded to 690953)

Note: Contact Generac for quantity required

$5.99

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 261589

Link- Governor

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 260585

Spring- Governor Link
(Superseded to 691784)

Note: Contact Generac for quantity required

$11.99

$

In Stock, only 2 left!

0

206

Briggs & Stratton 231266

Nut- Control Rod
(Superseded to 691771)

Note: Contact Generac for quantity required

$37.99

$

Usually ships in 2-12 days

0

207

Briggs & Stratton 26855

Spring- Control Rod
(Superseded to 692522)

Note: Contact Generac for quantity required

$

$

Not available

208

Briggs & Stratton 261985

Rod- Control

Note: Contact Generac for quantity required

$12.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 261126

Spring- Governor
(Superseded to 796261)

Note: Contact Generac for quantity required

$6.49

$

In Stock, only 4 left!

0

219

Briggs & Stratton 391737

Gear- Governor

Note: Contact Generac for quantity required

$38.99

$

In Stock, only 2 left!

0

220

Briggs & Stratton 221551

Washer- Thrust
(Superseded to 691724)

Note: Contact Generac for quantity required

$5.49

$

In Stock, only 2 left!

0

227

Briggs & Stratton 393920

Lever- Governor
(Superseded to 692357)

Note: Contact Generac for quantity required

$14.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 222450

Washer- Gov. Lever
(Superseded to 691691)

Note: Contact Generac for quantity required

$3.99

$

In Stock, Qty 5

0

280

Briggs & Stratton 223236

Strap

Note: Contact Generac for quantity required

$6.49

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 221511

Shield- Cylinder
(Superseded to 694514)

Note: Contact Generac for quantity required

$28.99

$

In Stock, only 1 left!

0

307

Briggs & Stratton 93490

Screw- Cylinder Shield
(Superseded to 691660)

Note: Contact Generac for quantity required

$3.99

$

In Stock, Qty 8

0

308

Briggs & Stratton 221512

Cover- Cylinder Head
(Superseded to 694514)

Note: Contact Generac for quantity required

$28.99

$

In Stock, only 1 left!

0

337

Briggs & Stratton 293918

Plug- SDpark (Resistor)
(Superseded to 796112S)

Note: Contact Generac for quantity required

$4.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 396874

Wire- Ground

Note: Contact Generac for quantity required

$

$

Currently unavailable

358

Briggs & Stratton 39745

Gasket Set

Note: Contact Generac for quantity required

$

$

Currently unavailable

383

Briggs & Stratton 69838

Wrench- Spark-Plug

Note: Contact Generac for quantity required

$

$

Currently unavailable

552

Briggs & Stratton 231079

Bushing- Gov. Crank
(Superseded to 690508)

Note: Contact Generac for quantity required

$9.49

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 92613

Bolt- Gov. Lever

Note: Contact Generac for quantity required

$

$

Not available

592

Briggs & Stratton 231082

Nut- Hex (10-24)
(Superseded to 691251)

Note: Contact Generac for quantity required

$3.49

$

In Stock, Qty 9

0

614

Briggs & Stratton 93306

Cotter- Hair Pin
(Superseded to 691620)

Note: Contact Generac for quantity required

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer- E Ring

Note: Contact Generac for quantity required

$5.99

$

In Stock, only 3 left!

0

616

Briggs & Stratton 231077

Crank- Governor
(Superseded to 692016)

Note: Contact Generac for quantity required

$

$

Not available

635

Briggs & Stratton 66538

Elbow- Spark Plug
(Superseded to 66538S)

Note: Contact Generac for quantity required

$3.99

$

In Stock, Qty 7

0

741

Briggs & Stratton 261696

Gear- Timing

Note: Contact Generac for quantity required

$52.99

$

Usually ships in 2-12 days

0

869

Briggs & Stratton 211787

Seat- Intake Valve (Standard)
(Superseded to 691705)

Note: Contact Generac for quantity required

$9.99

$

In Stock, only 3 left!

0

870

Briggs & Stratton 211436

Seat- Exhaust Valve (Cobalite)
(Superseded to 691856)

Note: Contact Generac for quantity required

$8.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 262001

Guide- Exhaust Valve

Note: Contact Generac for quantity required

$13.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

Guide- Intake Valve

Note: Contact Generac for quantity required

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 397145

Gasket Set
(Superseded to 495603)

Note: Includes Item Nos. 7, 9, 12, 51, & 52 - Contact Generac for quantity required.

$32.99

$

In Stock, Qty 20+

0
