896001 (SP-3000) - Gravely SnowEx Spreader (SN: 000101 & Above) Control And Harness Diagram Parts Diagram

SnowEx Spreader

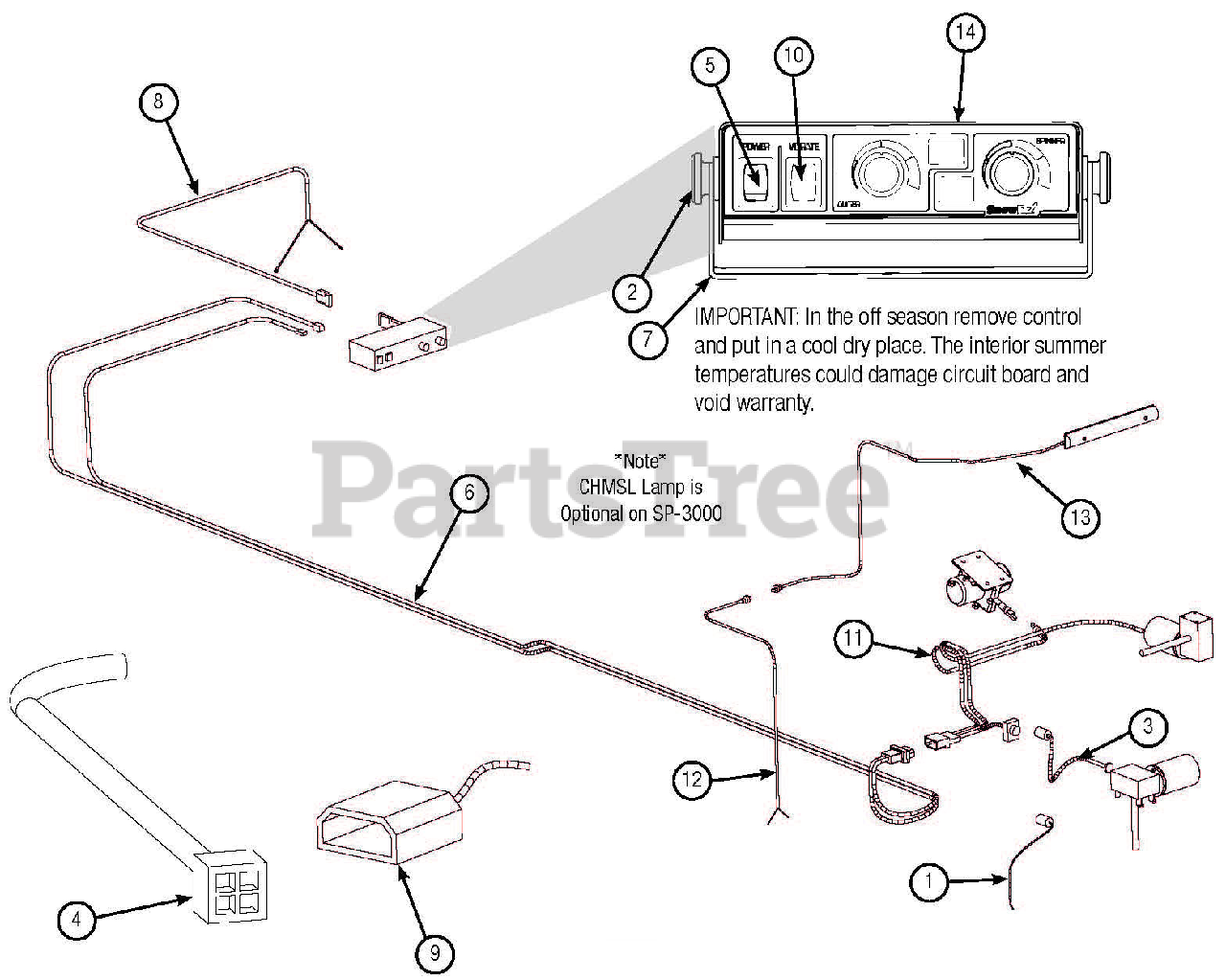

Control And Harness Diagram Parts Diagram

  • Title
1

NA

Dust Cover, Standard

$

$

Not available

2

Gravely 21901763

Bracket Knob

$

$

Not available

3

Gravely 21901627

Power Cable, 26-1/2"

$

$

Not available

4

Gravely 21901764

Connector Adapter, 6" Anderson

$

$

Not available

5

Gravely 21901765

Power Switch , 5 Terminal

$

$

Not available

6

Gravely N/A

Vehicle Harness , 311"

$

$

Currently unavailable

7

Gravely 21901766

Controller Mounting Bracket , Pro

$

$

Not available

8

NA

Control Power Cable , 156" Pro

$

$

Not available

9

Gravely 21901769

Dust Cover , Pro

$

$

Not available

10

Gravely 21901768

Vibrator Switch , 3 Terminal Red

$

$

Not available

11

Gravely 21901652

Spreader Harness , 42"

$

$

Not available

12

NA

Vehicle Harness , CHMSL

$

$

Not available

13

NA

CHMSL Brake Light

$

$

Not available

14

Gravely 21901657

Spreader Control , Pro

$

$

Not available

15

Gravely 21901762

Diagnostic Test Kit

Note: NOT SHOWN

$

$

Not available
