896001 (SP-3000) - Gravely SnowEx Spreader (SN: 000101 & Above) Auger Assembly Parts Diagram

SnowEx Spreader

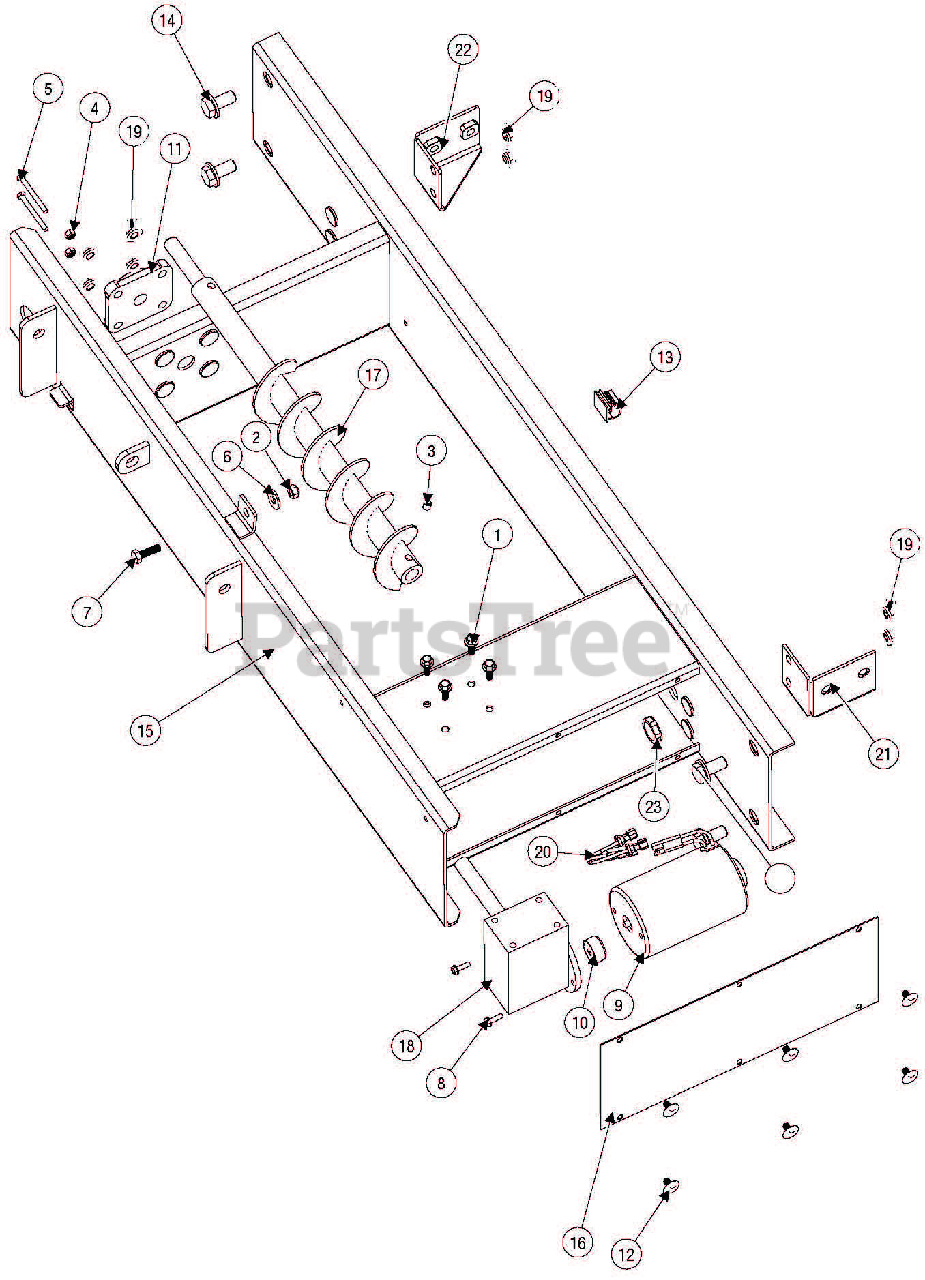

Auger Assembly Parts Diagram

  • Title

$

$

Not available

$

$

Not available

3

Gravely 21901625

SET SCREW

$

$

Not available

$

$

Not available

$

$

Not available

6

$

$

Not available

$

$

Not available

8

Gravely 21901630

BOLT, #10-32 X 5/8 SERRATEDFLANGE, ZINC, W/PATCH (5PK)

$

$

Not available

9

Gravely 21901631

MOTOR 3.0 X 3.8 12 VOLT DC

$

$

Not available

10

Gravely 21901632

MOTOR DRIVE COUPLER

$

$

Not available

11

Gravely 21901634

BEARING 5/8-IN 4 BOLT FLANGE

$

$

Not available

12

Gravely 21901638

RETAINER, 1/4 X 3/4 X 1/2 6 PK

$

$

Not available

13

Gravely 21901639

CLAMP, 3/8 WIRE LOOM

$

$

Not available

$

$

Not available

15

Gravely 21901660

AUGER DRIVE WELDMENT PRO TRUCK

$

$

Not available

16

Gravely 21901661

AUGER MOTOR COVER PRO TRUCK

$

$

Not available

17

Gravely 21901671

AUGER, 2-5/8 X 20 X 2

$

$

Not available

18

Gravely 21901674

TRANSMISSION 30:1 WORM GEAR

$

$

Not available

$

$

Not available

20

Gravely 21901678

MOTOR CONNECTOR ADAPTER D6320

$

$

Not available

21

Gravely 21901680

LOWER RAIL MOUNT BRACKET PS

$

$

Not available

22

Gravely 21901681

LOWER RAIL MOUNT BRACKET DS

$

$

Not available

23

Gravely 21901683

NUT, 5/16-18 BLACK NYLON2PK

$

$

Not available
