895804 - Parker Trailette Sweeper (SN: 000101 & Above) Basket Assembly Parts Diagram

Trailette Sweeper

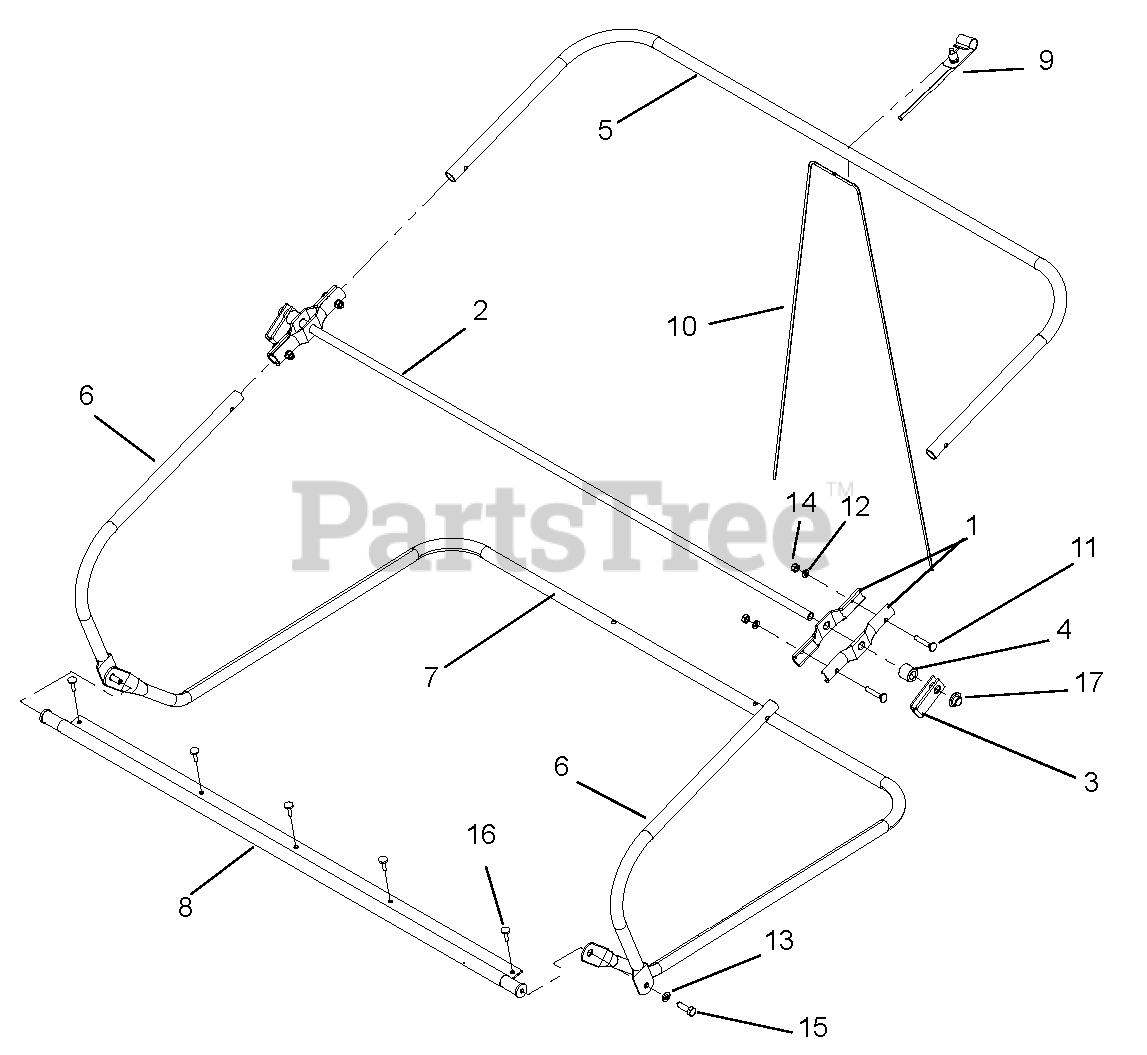

Basket Assembly Parts Diagram

  • Title

1

Gravely P79-112-B

Pivot Bearing

$

$

Not available

2

Gravely P76-275-A

Rod, Pivot 44-3/4

$

$

Not available

3

Gravely P76-242-A

Latch Pivot

$

$

Not available

4

Gravely P73-414-A

Spacer, .513 x .875 x .750

$

$

Not available

5

Gravely P76-326-B

Frame, Basket Front

$

$

Not available

6

Gravely P76-285-B

Frame, Basket Rear

$

$

Not available

7

Gravely P83-82-C

Frame, Basket Lower

$

$

Not available

8

Gravely PSA-1427-P

Basket Clamp Assembly

$

$

Not available

9

Gravely PSA-969-A

Rope and Clip Assembly

$34.99

$

In Stock, only 1 left!

0

10

Gravely P83-33-B

Spring, Basket

$

$

Not available

11

Gravely P69-416-24

Bolt, Contour Head 1/4-20 x 1.50

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 06308400

Washer, Lock .25 x .062 Reg YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06308600

Washer, Lock .31 x .078 Reg YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06533200

Nut, Hex .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

15

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Gr 5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

16

Gravely P92-28

Rivet, Bulb Tite

$

$

Not available

17

Gravely 02232000

Cap, Push On 1/2

$

$

Not available

18

Gravely 04288300

Basket Bottom and Bag (Not shown)

Note: (Not shown)

$

$

Not available

19

Gravely 04295500

Wind Apron Assembly (Not shown)

Note: (Not shown)

$

$

Not available
