895803 - Parker Suburbanite 36" Trailing Lawn Sweeper, Mesh Bottom (SN: 000101 - 000199) Hitch Assembly Parts Diagram

Suburbanite 36" Trailing Lawn Sweeper, Mesh Bottom

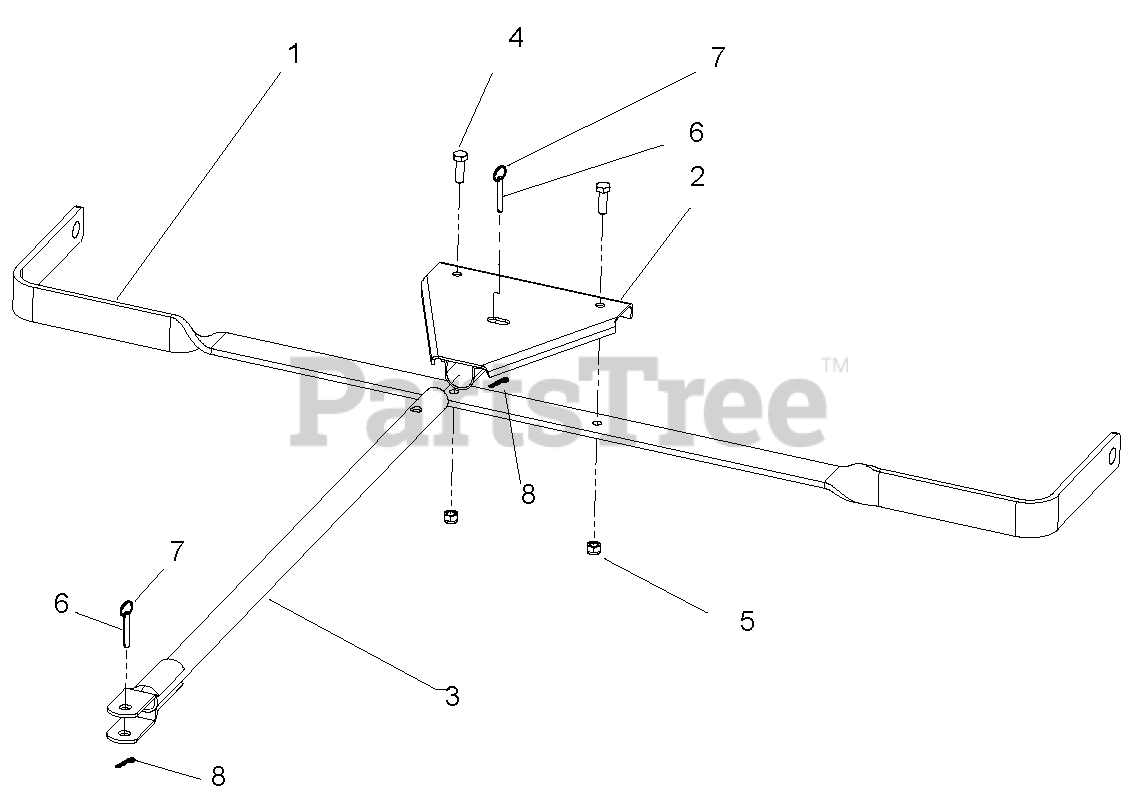

Hitch Assembly Parts Diagram

  • Title

$

$

Not available

2

Gravely P75-40-B

Hitch Plate Weldment

$

$

Not available

3

Gravely P75-32-B

Tongue Weldment

$

$

Not available

4

Gravely 05946900

Bolt, 5/16-18 x 1 Hex 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06530200

Nut, 5/16-18 Nyloc
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 04197868

Pin, Hitch
(Superseded to 04197800)

$28.99

$

Usually ships in 4-12 days

0

7

Gravely M88183

Ring, Retaining

$

$

Not available

8

Gravely 00121080

Pin, Hair, .091 x 1.63
(Superseded to 06700219)

$2.99

$

In Stock, Qty 9

0
