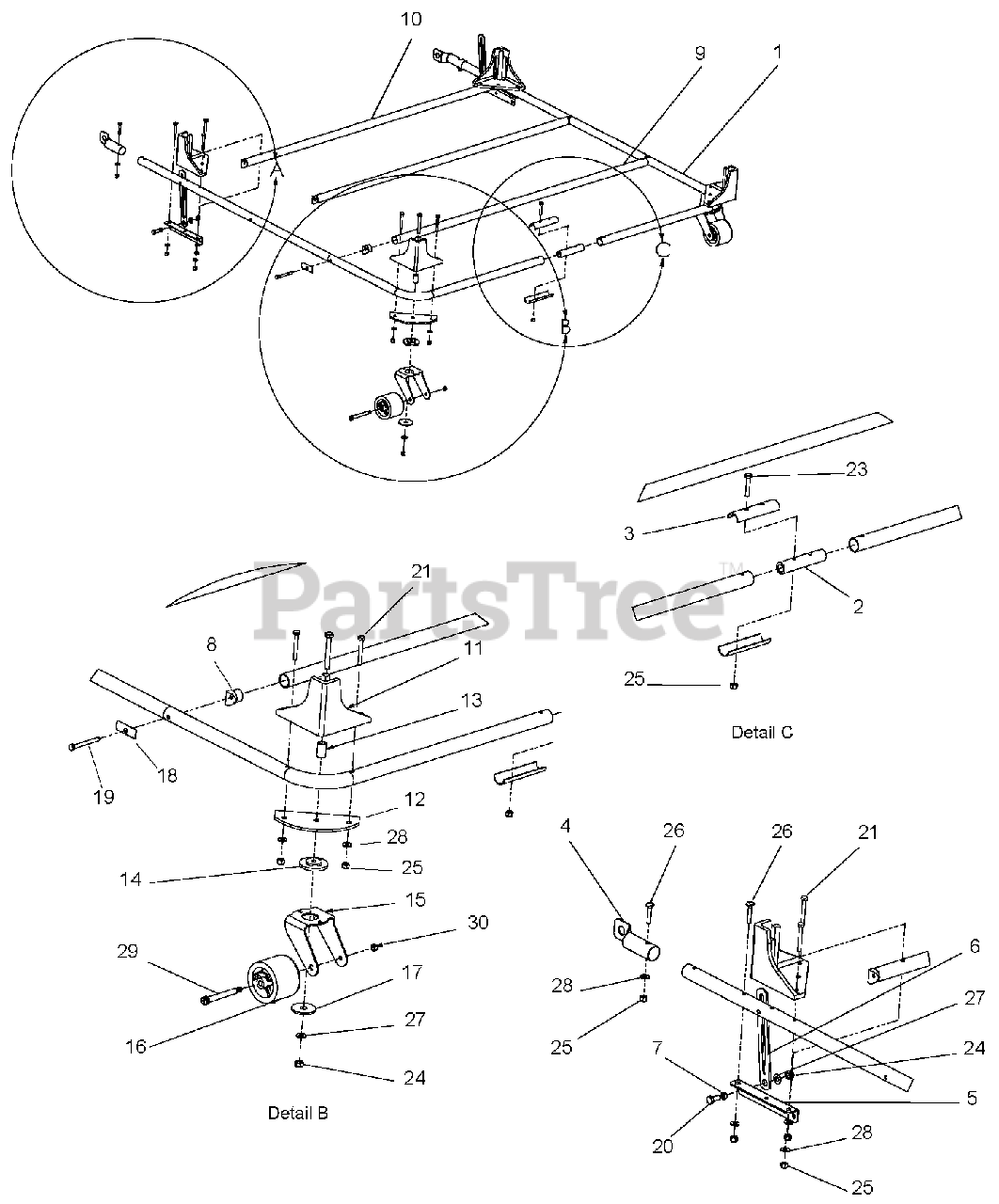

895803 - Parker Suburbanite 36" Trailing Lawn Sweeper, Mesh Bottom (SN: 000101 - 000199) Frame Assembly Parts Diagram

Suburbanite 36" Trailing Lawn Sweeper, Mesh Bottom

Frame Assembly Parts Diagram

  • Title
1

Gravely P80-126-B

Frame Side

$

$

Not available

2

Gravely P80-147-A

Tube Insert

$

$

Not available

3

Gravely P82-12-B

Clamp Half

$

$

Not available

4

Gravely P92-22-D

End Cap, Tube

$

$

Not available

5

Gravely P81-105-B

Angle Bracket

$

$

Not available

6

Gravely P59-59-A

Bracket, Adjust

$

$

Not available

$

$

Not available

8

Gravely P81-172-A

Tube Connector

$

$

Not available

9

Gravely PSA-834-B

Cross Brace, Mid/Back

$

$

Not available

10

Gravely PSA-835-C

Cross Brace, Forward

$

$

Not available

11

Gravely P80-130-C

Corner Support

$

$

Not available

12

Gravely P82-02-B

Caster Plate

$

$

Not available

13

$

$

Not available

14

$

$

Not available

15

Gravely P76-136-B

Caster Fork

$

$

Not available

16

$

$

Not available

$

$

Not available

18

Gravely P80-181-A

Bracket Clamp

$

$

Not available

19

Gravely 05961600

Bolt, 1/4-20 x 2.50 Hex 5

$2.49

$

In Stock, only 1 left!

0

20

Gravely 05947000

Bolt, 5/16-18 x .75 Hex 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 05967100

Bolt, 1/4-20 x 2.00 Hex 5
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 05952600

Bolt, 5/16-18 x 2.50 Hex 5
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 05952500

Bolt, 1/4-20 x 1.50 Hex 5
(Superseded to 05901739)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06530200

Nut, 5/16-18 Nyloc
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06531000

Nut, 1/4-20 Nyloc
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

26

Gravely P69-416-24

Bolt, 1/4-20 x 1.50 Contour Hd.

$5.99

$

Usually ships in 4-12 days

0

27

Gravely 06437200

Washer, .344 x .688 x .065 Flat Steel
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06437300

Washer, .281 x .62 x .065 Flat Steel
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

29

Gravely P76-202-A

Bolt, 3/8 x 2-3/4 Shoulder Socket

$

$

Not available

30

Gravely 06529700

Nut, 1/4-20 Lock
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0
