895802 - Parker 36" Trailing Lawn Sweeper, Hard Bottom (SN: 000101 - 000179) Basket Assembly Parts Diagram

36" Trailing Lawn Sweeper, Hard Bottom

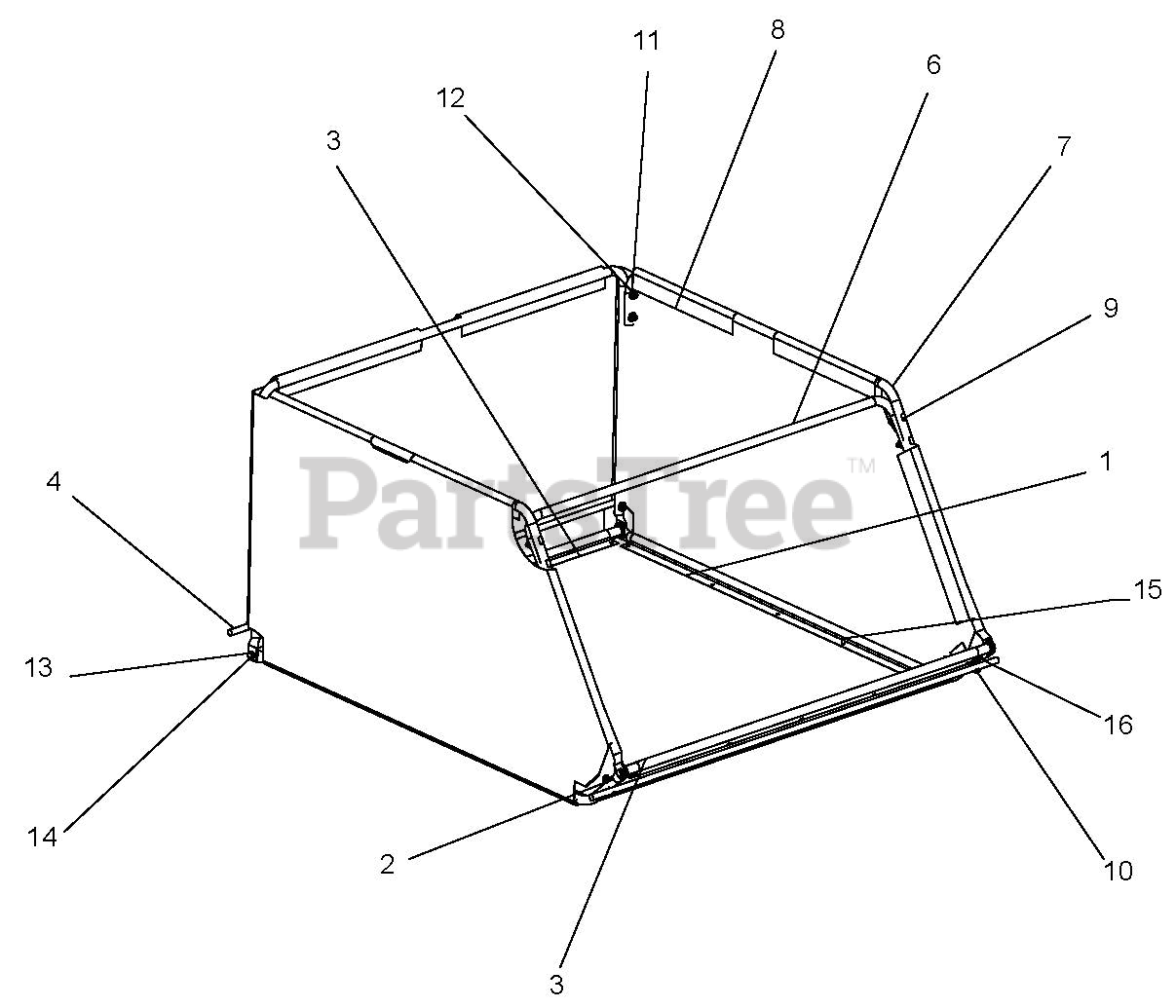

Basket Assembly Parts Diagram

  • Title

1

Gravely PSA-1590-C

Basket Clamp Assembly

$

$

Not available

2

Gravely PSA-1591-C

Basket Clamp Assembly

$

$

Not available

3

Gravely PSA-1427-B

Basket Clamp Assembly

$90.99

$

Usually ships in 4-12 days

0

4

Gravely P86-105-B

Support Rod

$

$

Not available

5

Gravely P82-86-B

Rear Upright

$

$

Not available

6

Gravely P82-87-B

Front Upright

$

$

Not available

7

Gravely P80-137-B

Frame Basket Side Top

$

$

Not available

8

Gravely P89-65-D

Basket Assembly

$

$

Not available

9

Gravely P69-416-32

Bolt, 1/4-20 x 2.0 Contour Head

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 00960004

Bolt, 1/4-20 x 1.5 Hex 5

$

$

Not available

11

Gravely AA960700

Washer, 1/4 Flat
(Superseded to 06435800)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06533200

Nut-Hex, 1/4-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

13

Gravely AA960601

Washer, 5/16 Spring Lock
(Superseded to 06308600)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 00960023

Bolt, 5/16-18 x 1.00 Hex 5

$

$

Not available

15

Gravely P92-28

Rivet, Bulb Tite

$

$

Not available

16

Gravely 04098500

Basket Bottom

$

$

Not available

17

Gravely PSA-1556-D

Wind Apron

Note: (Not Shown)

$

$

Not available
