895800 - Parker Estate Master 100" Sweeper, Mesh Bottom (SN: 001000 & Above) Frame Assembly Parts Diagram

Estate Master 100" Sweeper, Mesh Bottom

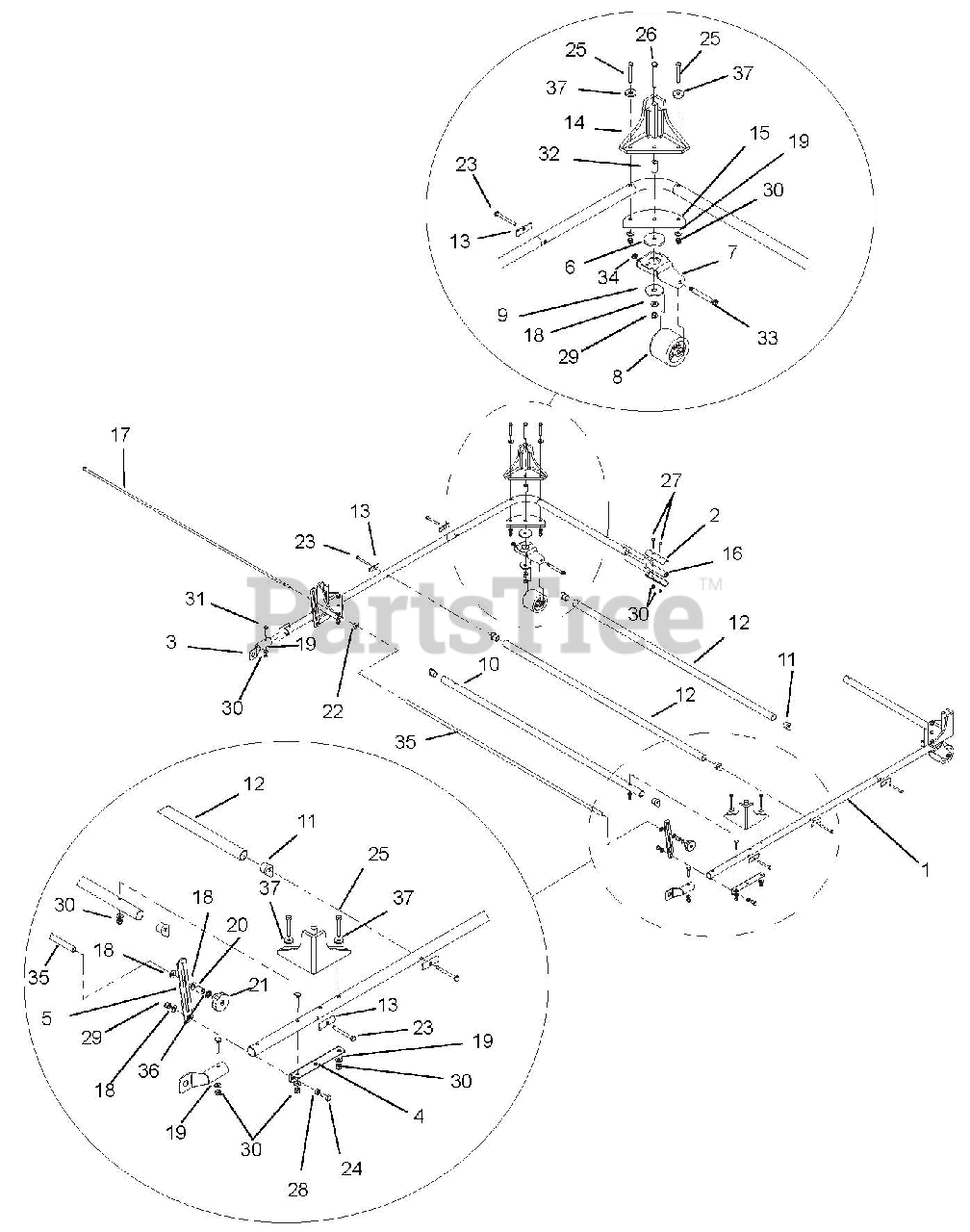

Frame Assembly Parts Diagram

  • Title

1

Gravely P80-126-B

Frame Side

$

$

Not available

2

Gravely P82-12-B

Clamp, Half

$

$

Not available

3

Gravely P92-22-D

End Cap, Tube

$

$

Not available

4

Gravely P81-105-B

Angle Bracket

$

$

Not available

5

Gravely P59-59-A

Bracket, Adjust

$

$

Not available

6

Gravely P78-130-A

Bearing

$

$

Not available

7

Gravely P76-136-B

Caster Fork

$

$

Not available

8

Gravely P76-58-A

Roller

$

$

Not available

9

Gravely P82-138-B-3

Washer, Area Vac 35 29/64 x 1-3/4 x.134

$

$

Not available

10

Gravely PSA-835-C

Cross Brace, Forward

$

$

Not available

11

Gravely P81-172-A

Tube Connector, Round To Round

$

$

Not available

12

SA-834-B

Cross Brace Assembly, Middle

$

$

Not available

13

Gravely P80-181-A

Clamp, Bracket

$

$

Not available

14

Gravely P80-130-C

Support, Corner

$

$

Not available

15

Gravely P82-02-B

Caster Plate

$

$

Not available

16

Gravely P80-147-A

Insert, Tube

$

$

Not available

17

Gravely P69-111-A

Bolt, Adjuster

$

$

Not available

18

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065 YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06437300

Washer, Flat Steel .281 x .62 x .065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

20

Gravely P55-160-A

Spacer, .500 OD x .625 L

$

$

Not available

21

Gravely P79-94-A

Knob, Fluted

$

$

Not available

22

Gravely 06435900

Washer, Flat Steel .438 x 1.00 x .083 YWZC
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 05961600

Bolt, Hex .25-20 x 2.50 Grade 5 YWZC

$2.49

$

In Stock, only 1 left!

0

24

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 05967100

Bolt, Hex .25-20 x 2.00 Grade 5 YWZC
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

26

Gravely 05952600

Bolt, Hex .31-18 x 2.50 Grade 5 YWZC
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 05952500

Bolt, Hex .25-20 1.50 Grade 5 YWZC
(Superseded to 05901739)

$1.49

$

In Stock, Qty 20+

0

28

Gravely P54-227-A

Spacer

$

$

Not available

29

Gravely 06530200

Nut, Nylock .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 06531000

Nut, Nylock .250-20 YWZC
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

31

Gravely P69-416-24

Bolt, Contour Head 1/4-20 x 1.50

$5.99

$

Usually ships in 4-12 days

0

32

Gravely P57-105-A

Spacer

$

$

Not available

33

Gravely 07070115

Bolt, Shoulder Socket 3/8 x 2-3/4

$10.99

$

Usually ships in 4-12 days

0

34

Gravely 06529700

Nut, Lock Center, .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

35

Gravely P80-141PLT

Tube, Plated 1/2 x .065

$28.99

$

Usually ships in 4-12 days

0

36

Gravely 06319000

Washer, Lock .38 Internal Star YWZC

$

$

Not available

37

Gravely 06439100

Washer, Flat Steel .328 x .87 x .179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0
