895436 (TRM-7192) - Gravely Tow-Behind Reel Mower Attachment (SN: 000101 & Above) Front Jackshaft Parts Diagram

Tow-Behind Reel Mower Attachment

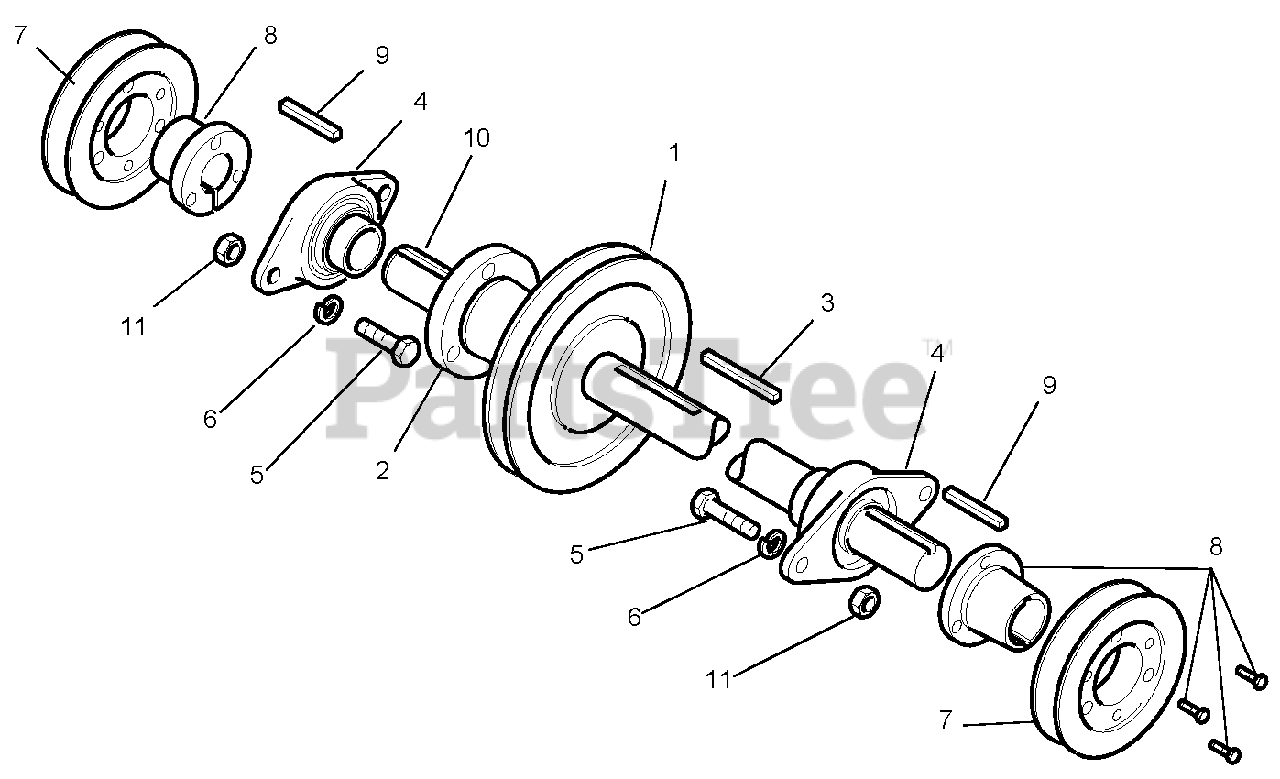

Front Jackshaft Parts Diagram

  • Title
1

Gravely 07333351

Pulley, 1-Belt 6.6 PD

$

$

Not available

2

Gravely 05563051

Bushing, Split Tapered

$

$

Not available

3

Gravely 06600138

Key, Pulley

$

$

Not available

4

Gravely 05400424

Bearing Flange, 2-Bolt

$

$

Not available

5

Gravely 05901022

Cap Screw, Hex Head .437-14 x 1.25

$

$

Not available

6

Gravely 06300031

Washer, Lock .437

$

$

Not available

7

Gravely 07332951

Pulley, 1-Belt 4.4 PD

$

$

Not available

8

Gravely 05562951

Bushing, Split Tapered

$

$

Not available

9

Gravely 06600207

Key, Square .25 x .25 x 1

$

$

Not available

10

Gravely 02366700

Jackshaft, Front

$

$

Not available

11

Gravely 06500611

Nut, Hex .437

$

$

Not available
