895435 (TRM-5138) - Gravely Tow-Behind Reel Mower Attachment (SN: 000101 & Above) PTO Driveline Assembly_02542500 Parts Diagram

Tow-Behind Reel Mower Attachment

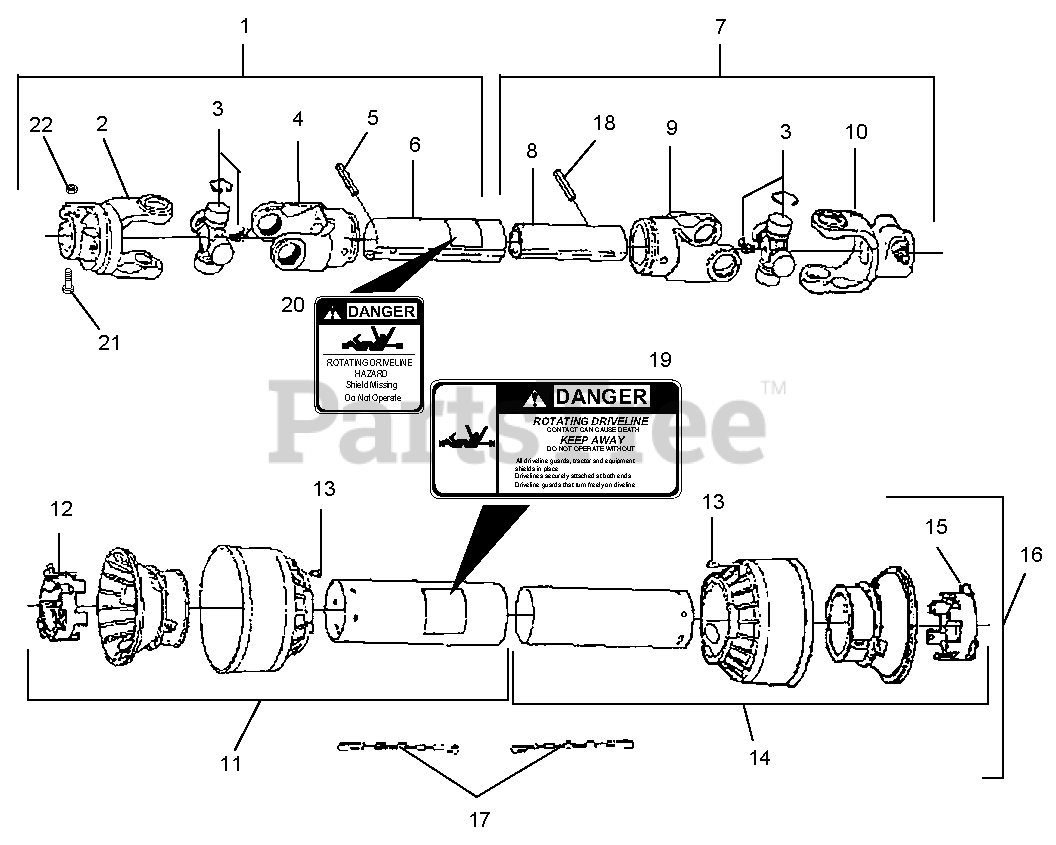

PTO Driveline Assembly_02542500 Parts Diagram

  • Title

1

Gravely 02578900

Half Shaft, Outer

$

$

Not available

2

Gravely 02579000

Assembly, Yoke

$

$

Not available

3

Gravely 02838900

Cross Assembly

$

$

Not available

4

Gravely 02579200

Outer Tube Yoke

$

$

Not available

5

Gravely N/A

Roll Pin 8 mm x 50 mm

$

$

Currently unavailable

6

Gravely 02579300

Outer Tube

$

$

Not available

7

Gravely 02579400

Half Shaft, Inner

$

$

Not available

8

Gravely 07100604

Inner Tube

$

$

Not available

9

Gravely 07100605

Inner Tube Yoke

$

$

Not available

10

Gravely 02579500

Yoke w/Clamp Bolt

$

$

Not available

11

Gravely N/A

Half, Outer Shielding

$

$

Currently unavailable

12

Gravely N/A

Tube Bearing

$

$

Currently unavailable

13

Gravely 02579600

Lock Pin

$

$

Not available

14

Gravely N/A

Half, Inner Shielding

$

$

Currently unavailable

15

Gravely N/A

Tube Bearing

$

$

Currently unavailable

16

Gravely 02579700

Safety Shield (Includes 11, 12, 14 & 15)

Note: (Includes 11, 12, 14 & 15)

$

$

Not available

17

Gravely N/A

$

$

Currently unavailable

18

Gravely N/A

Roll Pin 8 mm x 45 mm

$

$

Currently unavailable

19

Gravely 02868600

Decal, Danger

$

$

Not available

20

Gravely 02868800

Decal, Danger

$

$

Not available

21

Gravely 06110500

Screw, Machine M6-1.0 x 40 mm HHCS

$

$

Not available

22

Gravely 06500024

Locknut, Flat, ISO7043, M6-1.0
(Superseded to 06500729)

$2.99

$

Usually ships in 4-12 days
