895435 (TRM-5138) - Gravely Tow-Behind Reel Mower Attachment (SN: 000101 & Above) Belt Idler Assembly Parts Diagram

Tow-Behind Reel Mower Attachment

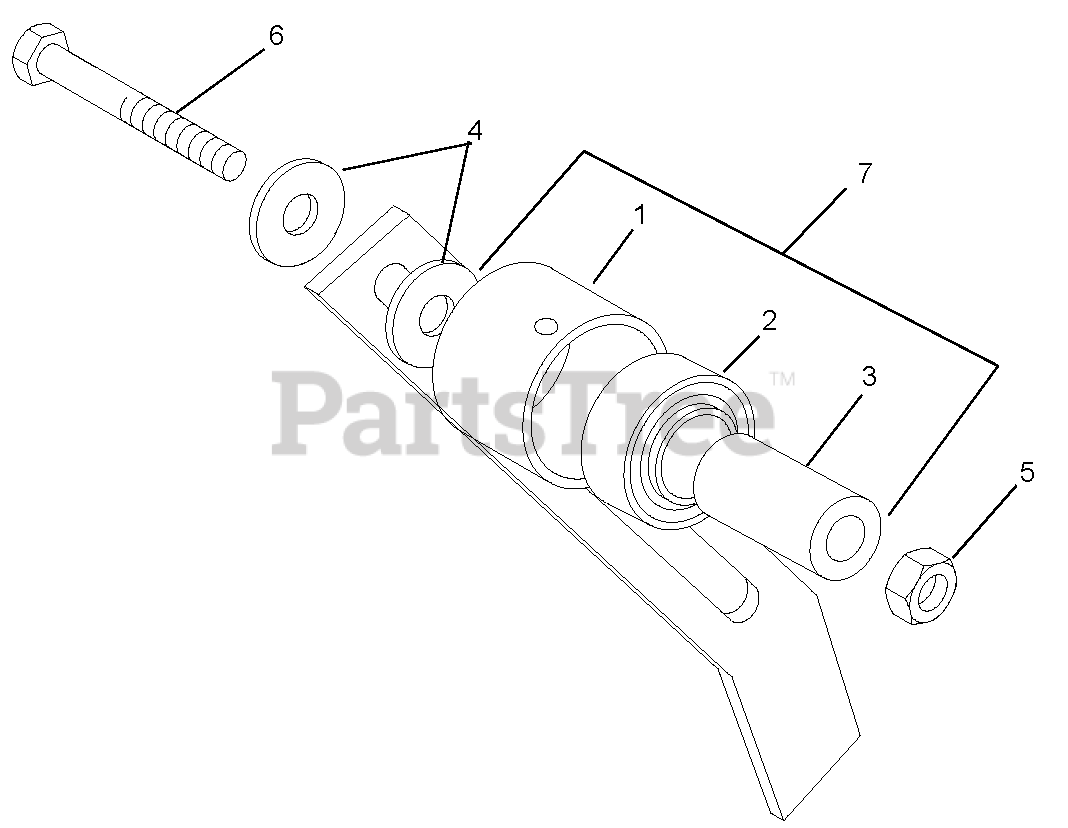

Belt Idler Assembly Parts Diagram

  • Title
1

Gravely 02367600

Shell, Idler 2.50"

$

$

Not available

2

Gravely 05400411

Bearing 1.000 ID x 2.0472 OD

$

$

Not available

3

Gravely 05500612

Bushing, Idler

$

$

Not available

4

Gravely 06400416

Washer, Flat .50 SAE

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 06500510

Nut, Hex .50-13 Nylock

$

$

Not available

6

Gravely 05900822

Cap Screw, Hex Head .50-13 x 3.50

$

$

Not available

7

Gravely 02367700

Idler Assembly 2.50"

$

$

Not available
