895434 (TRM-3083) - Gravely Tow-Behind Reel Mower Attachment (SN: 000101 & Above) Lift Arms Parts Diagram

Tow-Behind Reel Mower Attachment

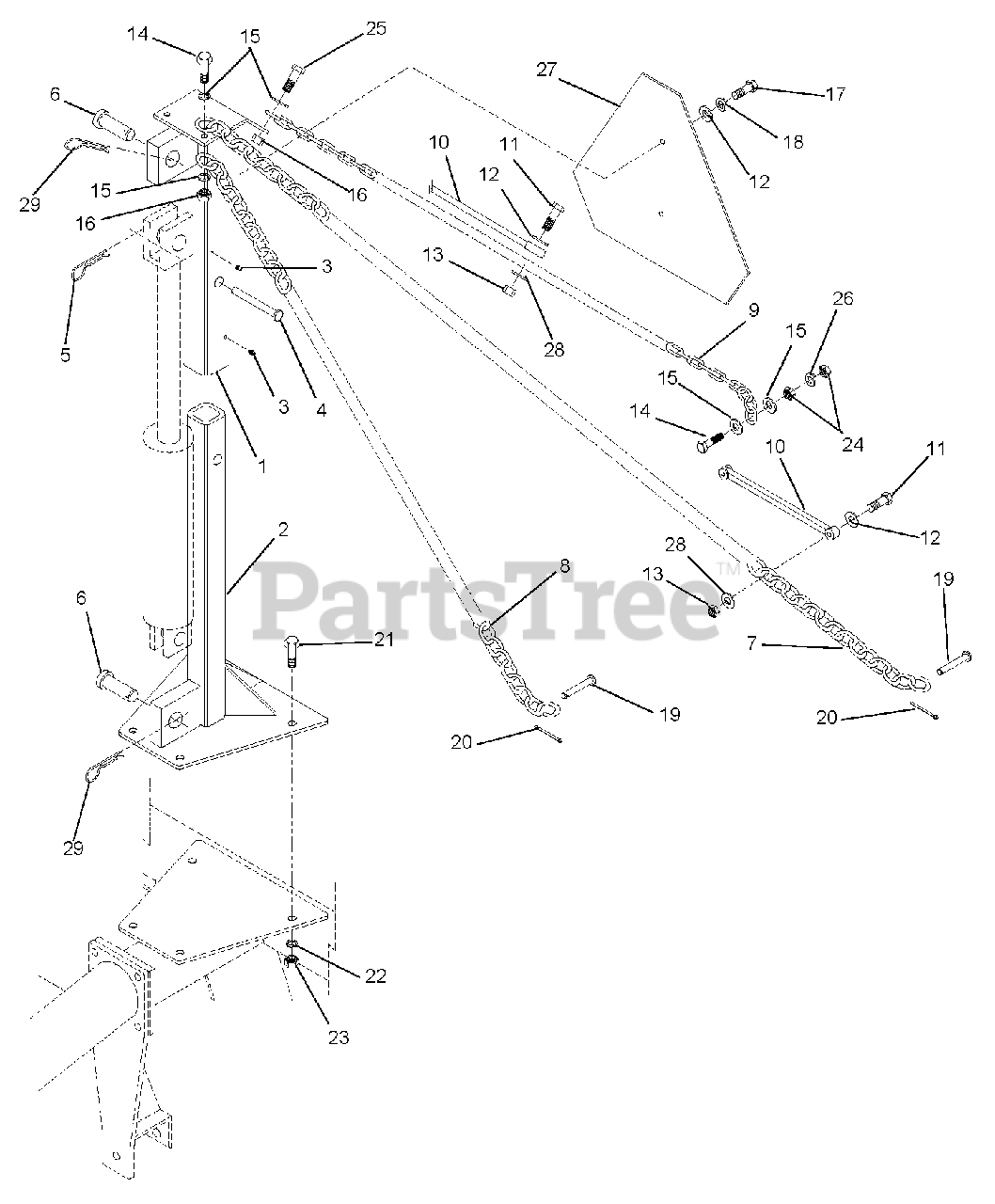

Lift Arms Parts Diagram

  • Title

1

Gravely 02569953

Weldment, Outer Lift Tube

$

$

Not available

2

Gravely 02570153

Weldment, Inner Lift Post

$

$

Not available

3

Gravely 07000934

Fitting, Grease .187 Drive

$3.49

$

Usually ships in 4-12 days

0

4

Gravely 02570300

Pin, Clevis .625 x 4

$

$

Not available

5

Gravely 02106400

Pin, Presto Spring Clip

$

$

Not available

6

Gravely 02289800

Pin, Clevis 1 x 2.25

$

$

Not available

7

Gravely 02559600

Chain, Outer Front Lift

$

$

Not available

8

Gravely 02559500

Chain, Inner Front Lift

$

$

Not available

9

Gravely 02559400

Chain, Rear Lift

$

$

Not available

10

Gravely 02542100

Strap, Tarp 8.25-Inch No Hook

$

$

Not available

11

Gravely 05952500

Bolt, Hex .25-20 x 1.50
(Superseded to 05901739)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06400423

Washer, Flat .25

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 06500513

Nut, Hex .25-20 CP Nylock

$

$

Not available

14

Gravely 05900824

Cap Screw, Hex Head .375-16 x 1.5

$

$

Not available

15

Gravely 06400421

Washer, Flat .375

$

$

Not available

16

Gravely 06500517

Nut, Nyloc .375-16 CP

$

$

Not available

17

Gravely 05900618

Cap Screw, Hex Head .25-20 x .75

$

$

Not available

18

Gravely 06300034

Washer, Lock .25 CP

$

$

Not available

19

Gravely 02157600

Pin, Clevis .375 x 1.5

$

$

Not available

20

Gravely 06700119

Pin, Cotter .156 x 1

$

$

Not available

21

Gravely 05900703

Cap Screw, Hex Head .50-13 x 1.5

$

$

Not available

22

Gravely 06300028

Washer, Lock .50 CP

$3.49

$

Usually ships in 4-12 days

0

23

Gravely 06500612

Nut, Hex .50 CP

$3.49

$

Usually ships in 4-12 days

0

24

Gravely 02091800

Nut, Jam .375-16

$

$

Not available

25

Gravely 05900801

Cap Screw, Hex Head .375-16 x 1.0
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06300030

Washer, Lock .375 CP

$

$

Not available

27

Gravely 02897200

Sign, Slow-Moving Vehicle

$

$

Not available

28

Gravely 02290200

Washer, Flat .25 x 1

$

$

Not available

29

Gravely 06700128

Pin, Cotter .125

$

$

Not available
