895434 (TRM-3083) - Gravely Tow-Behind Reel Mower Attachment (SN: 000101 & Above) Hydraulic System Parts Diagram

Tow-Behind Reel Mower Attachment

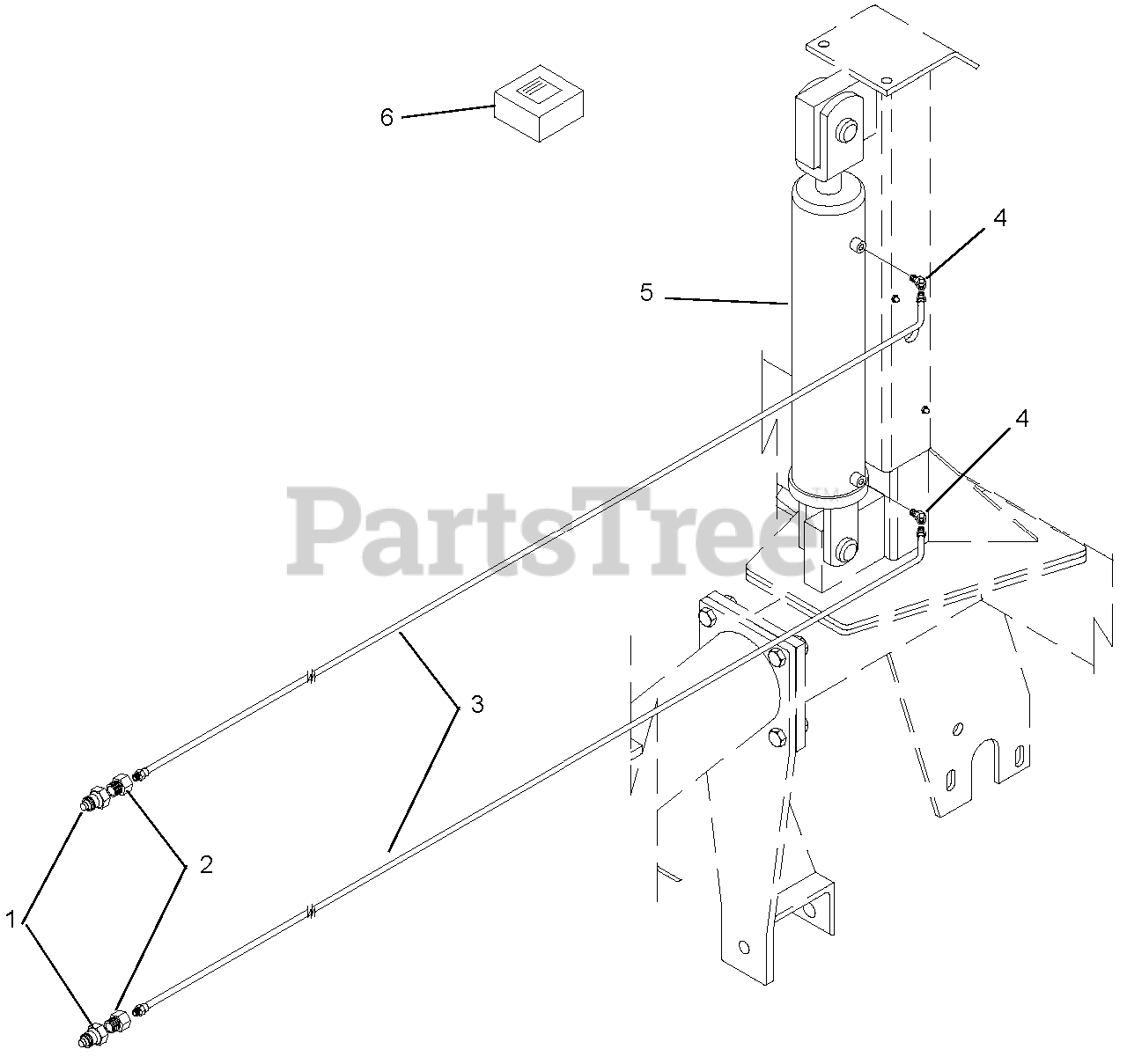

Hydraulic System Parts Diagram

  • Title
1

Gravely 02542000

Coupler, .50 FNPT QD Male

$

$

Not available

2

Gravely 07001003

Adapter, .50 MNPT x .25 FNPT

$

$

Not available

3

Gravely 07001004

Hose Assembly 120-Inch

$

$

Not available

4

Gravely 07001006

Adapter .25 FNPT x .25 MNPT

$

$

Not available

5

Gravely 02541900

Cylinder, Hydraulic

$

$

Not available

6

Gravely 05600310

Seal Kit

$

$

Not available
