895434 (TRM-3083) - Gravely Tow-Behind Reel Mower Attachment (SN: 000101 & Above) Cutting Units Parts Diagram

Tow-Behind Reel Mower Attachment

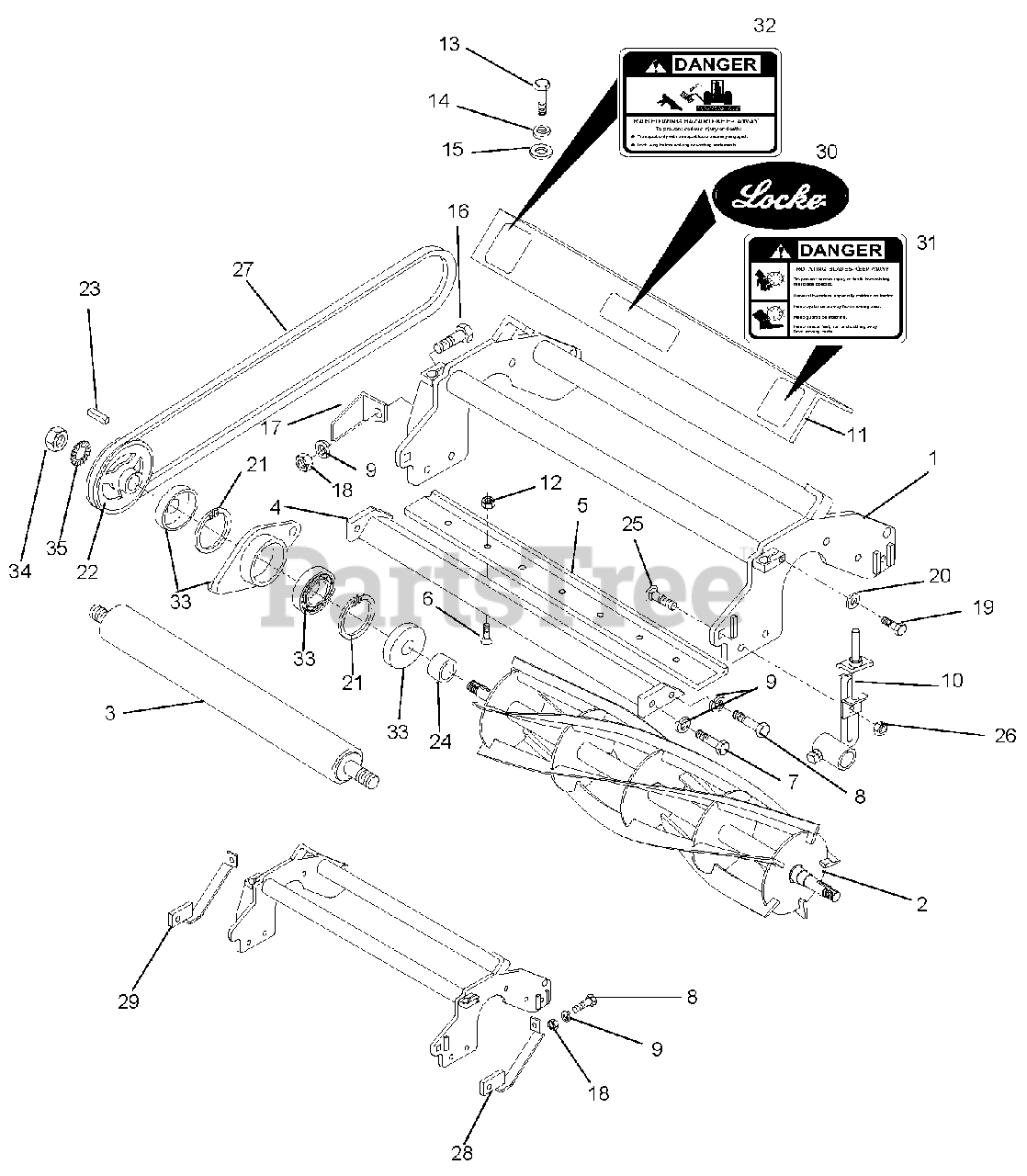

Cutting Units Parts Diagram

  • Title

1

Gravely 02548851

Weldment, Reel Frame Unit 1

$

$

Not available

Gravely 02550251

Weldment, Reel Frame Unit 2

$

$

Not available

Gravely 02550451

Weldment, Reel Frame Unit 3

$

$

Not available

2

Gravely 79516900

Reel, 4 Blade

$

$

Not available

Gravely 79517000

Reel, 5 Blade

$

$

Not available

Gravely 79517100

Reel, 6 Blade

$

$

Not available

Gravely 79517200

Reel, 7 Blade

$

$

Not available

Gravely 79517300

Reel, 8 Blade

$

$

Not available

Gravely 79517400

Reel, 9 Blade

$

$

Not available

3

Gravely 02690300

Roller Assembly, Smooth Aluminum 3-Inch

$

$

Not available

Gravely 02687000

Roller Assembly, Grooved Aluminum 3-Inch

$

$

Not available

4

Gravely 02544951

Weldment, Bed Bar

$

$

Not available

5

Gravely 02544500

Bedknife

$

$

Not available

6

Gravely 02221600

Cap Screw, Hex Socket Flat Head .312 x 1

$3.99

$

In Stock, only 1 left!

0

7

Gravely 05901021

Cap Screw, Hex Head .437-14 x 1

$

$

Not available

8

Gravely 05901022

Cap Screw, Hex Head .437-14 x 1.25

$

$

Not available

9

Gravely 06300031

Washer, Lock .437

$

$

Not available

10

Gravely 02546500

Bracket Assembly, Roller Left Hand

$

$

Not available

Gravely 02546700

Bracket Assembly, Roller Right Hand

$

$

Not available

11

Gravely 02559100

Shield Assembly Unit 1

$

$

Not available

Gravely 02555900

Shield Assembly Units 2 & 3

$

$

Not available

12

Gravely 06500512

Nut, Hex Nylock .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 05900620

Cap Screw, Hex Head .312 x .75

$

$

Not available

14

Gravely 06300029

Washer, Lock .312

$

$

Not available

15

Gravely 06400419

Washer, Flat .312

$

$

Not available

16

Gravely 05901022

Cap Screw, Hex Head .437-14 x 1.25

$

$

Not available

17

Gravely 07333451

Scraper, Pulley Right Hand, Units 1 & 2

$

$

Not available

Gravely 07333551

Scraper, Pulley Left Hand, Unit 3

$

$

Not available

18

Gravely 06500611

Nut, Hex .437

$

$

Not available

19

Gravely 05900801

Cap Screw, Hex Head .375-16 x 1
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06300030

Washer, Lock .375

$

$

Not available

21

Gravely 05700038

Ring, Retaining 2.50

$

$

Not available

22

Gravely 02375951

SHEAVE, 7/8 BORE X 4.40 PD

$

$

Not available

23

Gravely 06600113

Key, Square .25 x .25 x 1

$

$

Not available

24

Gravely 06400625

Spacer, Drive Side

$

$

Not available

25

Gravely 06200107

Bolt, Carriage .50-13 x 1.50

$3.49

$

Usually ships in 4-12 days

0

26

Gravely 06500510

Nut, Hex Nylock .50-13

$

$

Not available

27

Gravely 07200340

V-Belt B64

$

$

Not available

28

Gravely 02543451

Weldment, Skid Shoe Right Hand

$

$

Not available

29

Gravely 02543551

Weldment, Skid Shoe Left Hand

$

$

Not available

30

Gravely 04299300

Decal, Legendary Locke Reels

$

$

Not available

31

Gravely 02541200

Decal, Danger

$

$

Not available

32

Gravely 02500000

Decal, Danger

$

$

Not available

33

Gravely N/A

See Reel Housing Bearing Flange – Non-Drive Side on page 35.

$

$

Currently unavailable

34

Gravely 02223800

Nut, Jam .750 CP NF

$

$

Not available

35

Gravely 06300104

Washer, Star .75 External Tooth

$

$

Not available
