895412 - Gravely Walker Sprayer (SN: 000101 & Above) Walking Spray Attachment Parts Diagram

Walker Sprayer

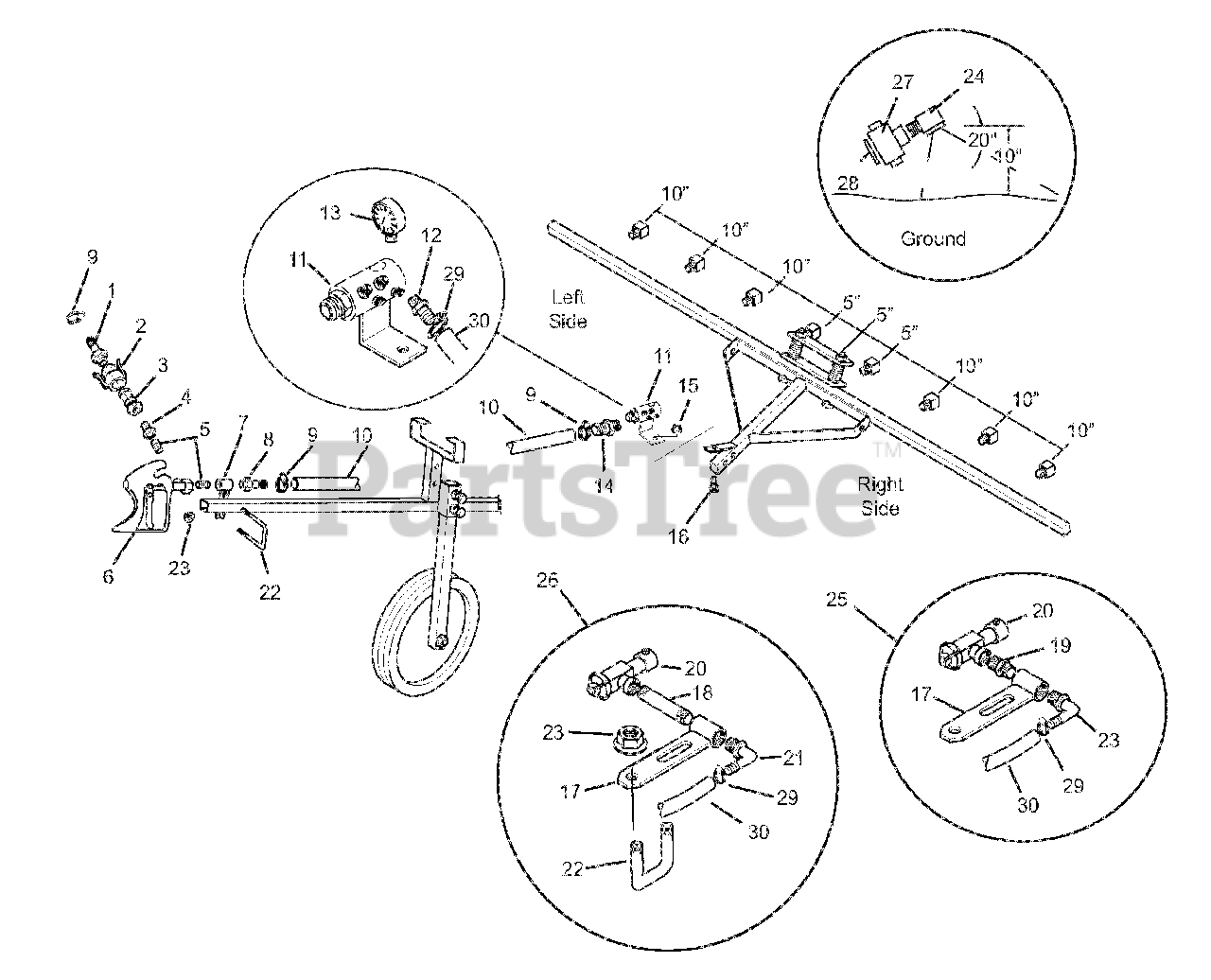

Walking Spray Attachment Parts Diagram

  • Title

1

Gravely 07001235

Adapter, 3/4" MNPT to 1/2" HB

$

$

Not available

2

Gravely 02621500

Adapter, 3/4" FNPT to 3/4" Q.C. Female

$

$

Not available

3

Gravely 02621400

Adapter, 3/4" FNPT to 3/4" Q.C. Male

$

$

Not available

4

Gravely 07001130

Adapter, 3/4" MNPT to 1/2" FNPT

$

$

Not available

5

Gravely 07001129

Nipple, 1/2" MNPT x 1/1/8"

$

$

Not available

6

Gravely 02618900

Spray Gun Assembly

$

$

Not available

7

Gravely 02621300

Coupler Weldment

$

$

Not available

8

Gravely 07001036

Adapter, 1/2" MNPT to 3/4" HB

$

$

Not available

9

Gravely 02581900

Clamp, Hose

$

$

Not available

10

Gravely 07001131

Hose, 3/4" x 42"

$

$

Not available

11

Gravely 02620300

Manifold Assembly

$

$

Not available

12

Gravely 07001127

Adapter, 1/4" MNPT to 3/8" HB

$

$

Not available

13

Gravely 02616300

Pressure Gauge, Oil Filled

$

$

Not available

14

Gravely 07001038

Adapter, 3/4" MNPT to 3/8" HB

$

$

Not available

15

Gravely 06500517

Nut, 3/8-16 Nyloc

$

$

Not available

16

Gravely 05900801

Bolt, 3/8-16 x 1 Hex
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 02620600

Bracket, Nozzle Mount

$

$

Not available

18

Gravely 02620800

Nipple, 1/4 x 3", MNPT

$

$

Not available

19

Gravely 07001218

Nipple, 1/4 Close MNPT

$

$

Not available

20

Gravely 02620700

Diaphragm Check Valve

$

$

Not available

21

Gravely 07001128

Fitting, 90° 1/4" MNPT x 3/8" HB

$

$

Not available

22

Gravely 07001027

U-Bolt, 5/16-18 x 1-3/8 x 2 UNC

$

$

Not available

23

Gravely 06500533

Nut, 5/16-18 Lock Serrated Flange

$

$

Not available

24

Gravely 02651500

Nozzle, MC 2.5 SS

$

$

Not available

25

Gravely 02621000

Nozzle Bracket Assembly

$

$

Not available

26

Gravely 02621100

Nozzle Bracket Assembly, Center

$

$

Not available

27

Gravely 02620900

Adapter Cap

$

$

Not available

28

Gravely 05600321

Seat Gasket

$

$

Not available

29

Gravely 02581800

Clamp, .31-38 Worm Drive #6206SS

$

$

Not available

30

Gravely 07001122

Hose, 3/8 x 24"

$

$

Not available

Gravely 07001123

Hose, 3/8 x 26"

$

$

Not available

Gravely 07001124

Hose, 3/8 x 36"

$

$

Not available

Gravely 07001125

Hose, 3/8 x 46"

$

$

Not available
