895412 - Gravely Walker Sprayer (SN: 000101 & Above) Frame And Mast Walking Boom Parts Diagram

Walker Sprayer

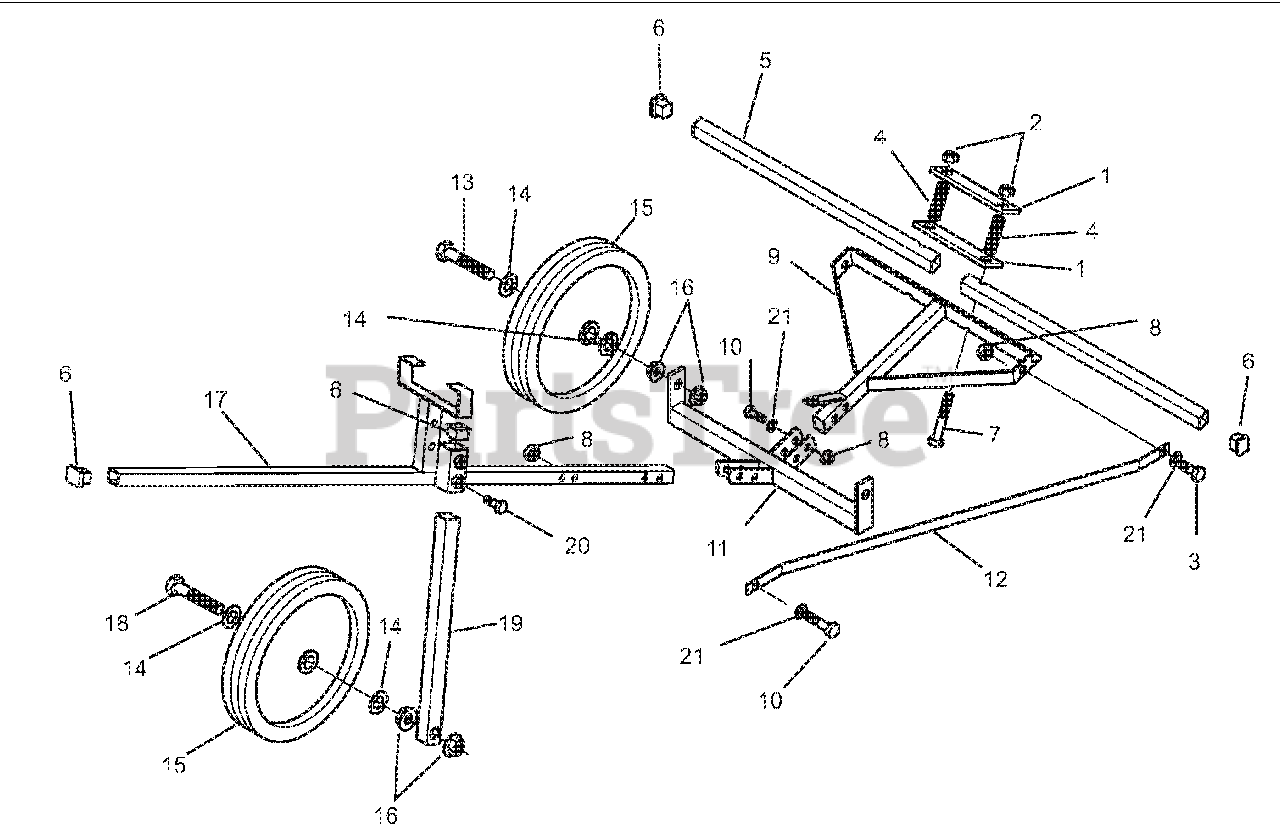

Frame And Mast Walking Boom Parts Diagram

  • Title

1

Gravely 02620000

Spring Strap

$

$

Not available

2

Gravely 06500517

Nut, 3/8-16, Nyloc

$

$

Not available

3

Gravely 05900618

Capscrew, 1/4-20 x 3/4, Hex

$

$

Not available

4

Gravely 08300413

Spring

$

$

Not available

5

Gravely 02621600

Boom Tube

$

$

Not available

6

Gravely 02587800

Cap, 1" Square

$

$

Not available

7

Gravely 05901030

Capscrew, 3/8-18 x 6, Hex G5

$

$

Not available

8

Gravely 06500523

Nut, 1/4-20 Hex, Serrated Flanged CP

$

$

Not available

9

Gravely 02619500

Boom Arm Tube Weldment

$

$

Not available

10

Gravely 05900808

Capscrew, 1/4-20 x 1-3/4, Hex G5

$

$

Not available

11

Gravely 02619900

Axle Weldment

$

$

Not available

12

Gravely 02621700

Brace

$

$

Not available

13

Gravely 05900822

Capscrew, 1/2-13 x 3-1/2 Hex

$

$

Not available

14

Gravely 06400422

Washer, 1/2 Flat USS ZP

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 07100613

Wheel and Tire Assembly

$

$

Not available

16

Gravely 15554

Nut, 1/2-13, Serrated Flanged Hex

$

$

Not available

17

50023864

Center Handle

$

$

Not available

18

Gravely 05901110

Capscrew, 1/2-13 x 4, Hex

$

$

Not available

19

Gravely 02621800

Leg Tube

$

$

Not available

20

5900801

Bolt, 3/8-16 x 1, Hex

$

$

Not available

21

Gravely 06400423

Washer, 1/4, Flat USS ZP

$2.49

$

Usually ships in 4-12 days

0
