895409 (MP-3132) - Gravely Tow-Behind Mulching Mower Attachment (SN: 000101 & Above) Main Frame & Wing Assembly Parts Diagram

Tow-Behind Mulching Mower Attachment

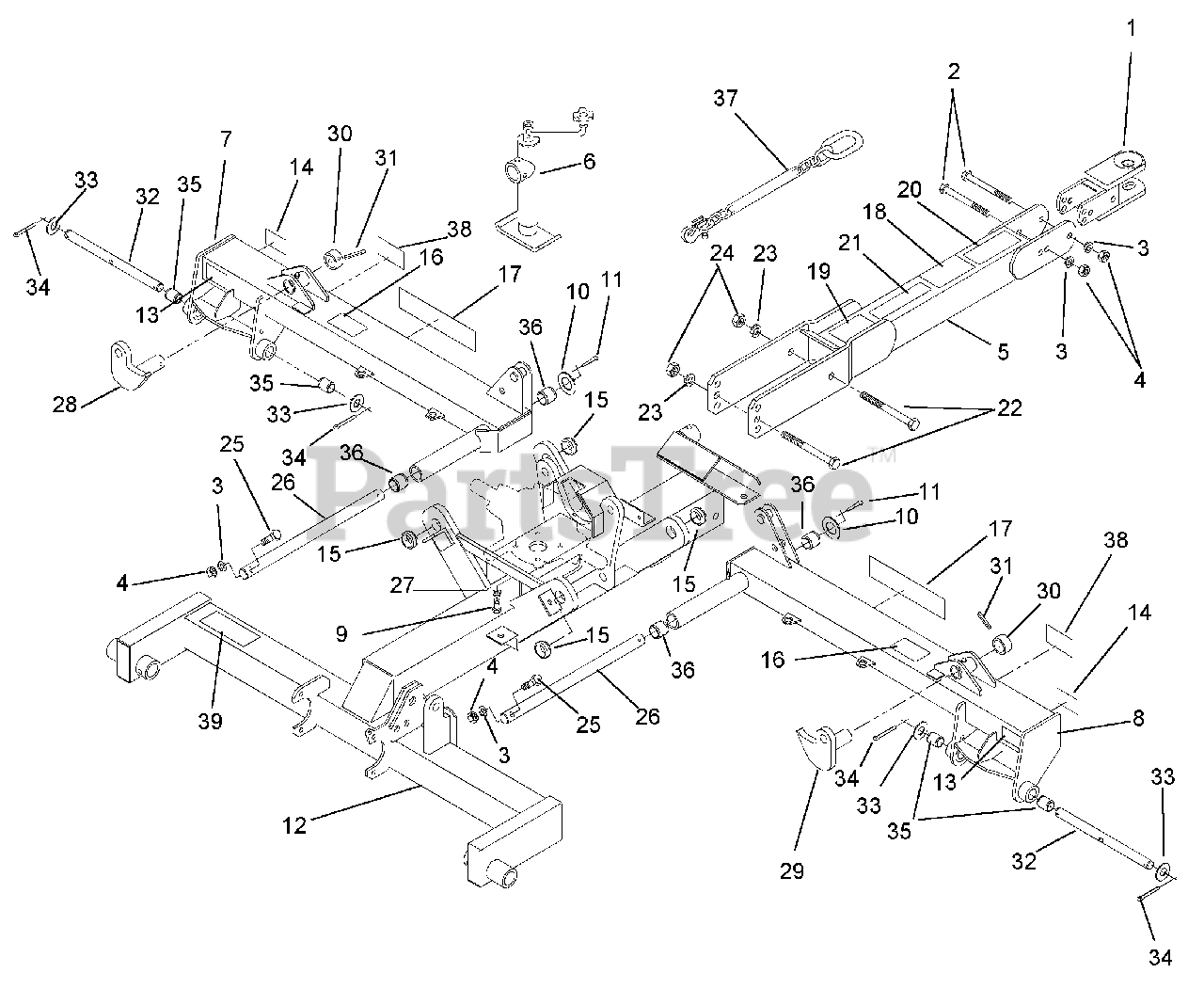

Main Frame & Wing Assembly Parts Diagram

  • Title

1

Gravely 02938653

Weldment, Hitch

$

$

Not available

2

Gravely 05900825

Cap Screw, Hex Head .625 x 6

$

$

Not available

3

Gravely 06300038

Washer, Lock .625

$

$

Not available

4

Gravely 06500431

Nut, Hex .625

$

$

Not available

5

Gravely 03288900

Tongue With Decals

$

$

Not available

6

Gravely 02155900

Jack Assembly

$

$

Not available

7

Gravely 02626500

Assembly, Wing With Decals LH

$

$

Not available

8

Gravely 03289300

Assembly, Wing With Decals, RH

$

$

Not available

9

Gravely 07001408

Cap Screw, Hex Head M12 x 1.75

$

$

Not available

10

Gravely 06400508

Washer, Flat 1.25

$

$

Not available

11

Gravely 06700104

Cotter Pin .25 x 1.75

$

$

Not available

12

Gravely 02250253

Weldment, Frame

$1899.99

$

Usually ships in 4-12 days

0

13

Gravely 02823500

Reflector, Red

$26.99

$

Usually ships in 4-12 days

0

14

Gravely 02823400

Reflector, Amber

$35.99

$

Usually ships in 4-12 days

0

15

Gravely 05500620

Bushing, Spring 1.50 x 1.25

$

$

Not available

16

Gravely 02881700

Decal, Warning

$

$

Not available

17

Gravely 05239900

Decal, 9.5-Inch Gravely Logo

$9.99

$

Usually ships in 4-12 days

0

18

Gravely 02880900

Decal, Warning

$

$

Not available

19

Gravely 02884400

Decal, Drawbar

$

$

Not available

20

Gravely 02884500

Decal, Important

$

$

Not available

21

Gravely 02831900

Decal, Caution 540 RPM

$25.99

$

Usually ships in 4-12 days

0

22

Gravely 05900924

Cap Screw, Hex Head .75-10 x 7

$

$

Not available

23

Gravely 06300026

Washer, Lock .75

$

$

Not available

24

Gravely 06500529

Nut, Hex .75-16

$

$

Not available

25

Gravely 05900919

Cap Screw, Hex Head .625-11 x 2.5

$

$

Not available

26

Gravely 02381600

Pin, Pivot

$

$

Not available

27

Gravely 05900805

Washer, Lock .50

$

$

Not available

28

Gravely 02237051

Weldment, Swivel LH

$

$

Not available

29

Gravely 02236451

Weldment, Swivel RH

$

$

Not available

30

Gravely 02236951

Collar

$

$

Not available

31

Gravely 05800108

Pin, Roll 3/8 x 2-1/2

$

$

Not available

32

Gravely 02386500

Pin

$

$

Not available

33

Gravely 06400507

Washer, Flat 1.00

$

$

Not available

34

Gravely 06700104

Pin, Cotter .25 x 1.75

$

$

Not available

35

Gravely 05500625

Bushing, Spring 1.25 x 1 x 1.50

$

$

Not available

36

Gravely 05500621

Bushing, Spring 1.50 x 1.25

$

$

Not available

37

Gravely 02892100

Chain, Safety Toe

$

$

Not available

38

Gravely 02670300

Decal, Float Information

$

$

Not available

39

Gravely 02673300

Decal, Lubrication Chart

$

$

Not available
