895409 (MP-3132) - Gravely Tow-Behind Mulching Mower Attachment (SN: 000101 & Above) Deck-Lift Cylinders Parts Diagram

Tow-Behind Mulching Mower Attachment

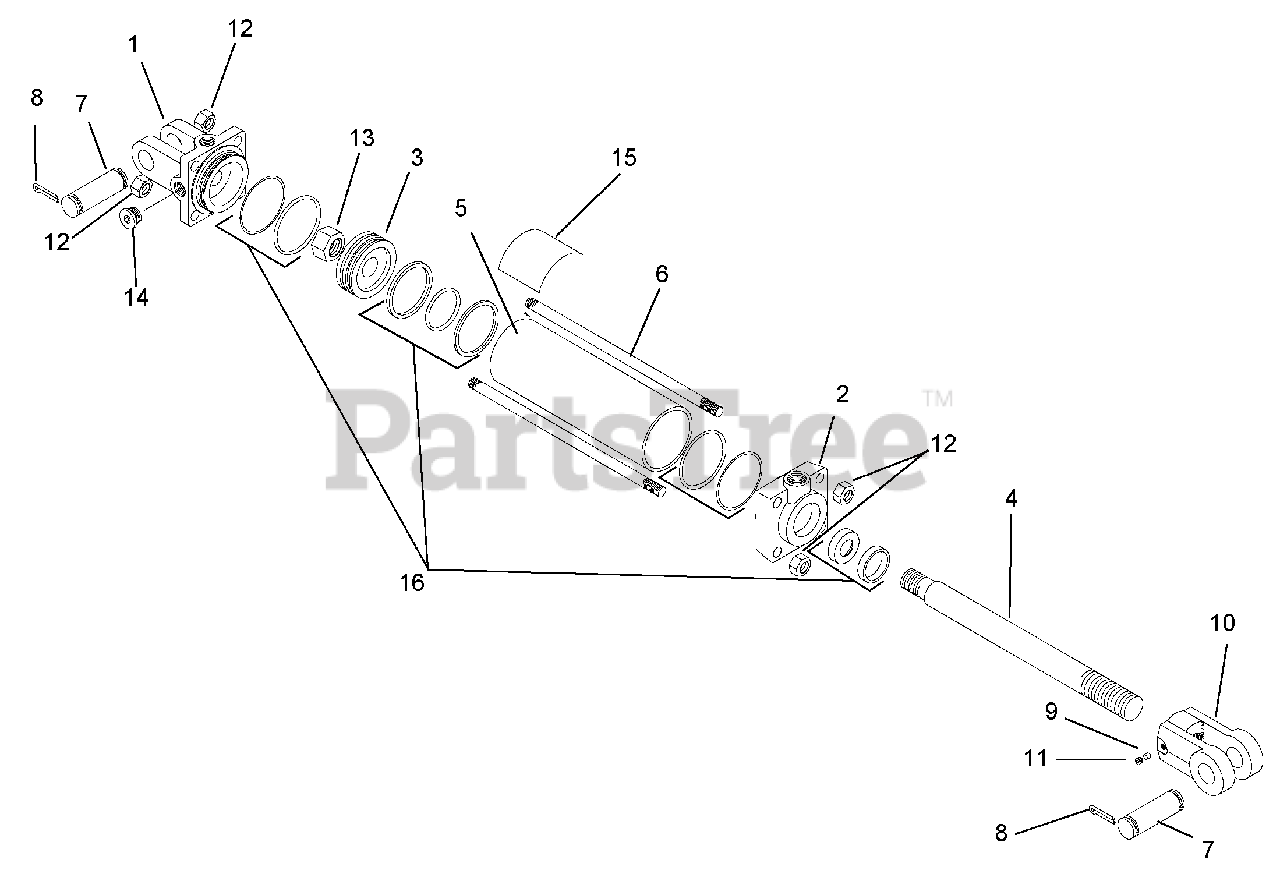

Deck-Lift Cylinders Parts Diagram

  • Title

1

Gravely 02929900

Cap, Clevis 3.0

$

$

Not available

2

Gravely 02929800

Cap, Rod 3.0 x 1.125 ORB

$

$

Not available

3

Gravely 02242400

Piston 3.00 PSP 2, With Rings

$

$

Not available

4

Gravely 02929500

Rod 1.25 x 12 (Side Units)

Note: (Side Units)

$

$

Not available

Gravely 02929300

Rod 1.25 x 8 (Rear Unit)

Note: (Rear Unit)

$

$

Not available

5

Gravely 02929600

Tube, Cylinder 3.0 x 12 (Side Units)

Note: (Side Units)

$

$

Not available

Gravely 02930700

Tube, Cylinder 3.0 x 8 (Rear Unit)

Note: (Rear Unit)

$

$

Not available

6

Gravely 02929700

Rod, Tie .50 x 12 (Side Units)

Note: (Side Units)

$

$

Not available

Gravely 02930800

Rod, Tie .50 x 8 (Rear Unit)

Note: (Rear Unit)

$

$

Not available

7

Gravely 02929200

Pin, 1-Inch Diameter

$

$

Not available

8

Gravely 06700120

Pin, Cotter .187 x 1.50

$

$

Not available

9

Gravely 06500614

Lock, Nylon Thread

$

$

Not available

10

Gravely 06800034

Clevis, Rod 1.25 x 1-14 (1 Pin)

Note: (1 Pin)

$

$

Not available

11

Gravely 02929000

Set Screw .38 x .50

$

$

Not available

12

Gravely 06500612

Nut, Hex .50-13

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 02928900

Nut, Hex 1-14 UNF

$

$

Not available

14

Gravely 02929400

Plug .75-16

$

$

Not available

15

Gravely 02929100

Decal, Caution

$

$

Not available

16

Gravely 05600238

Kit, Seal

$

$

Not available
