895408 (TVM-5130) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) V-Cut Head Parts Diagram

Tow-Behind Vertical Mower Attachment

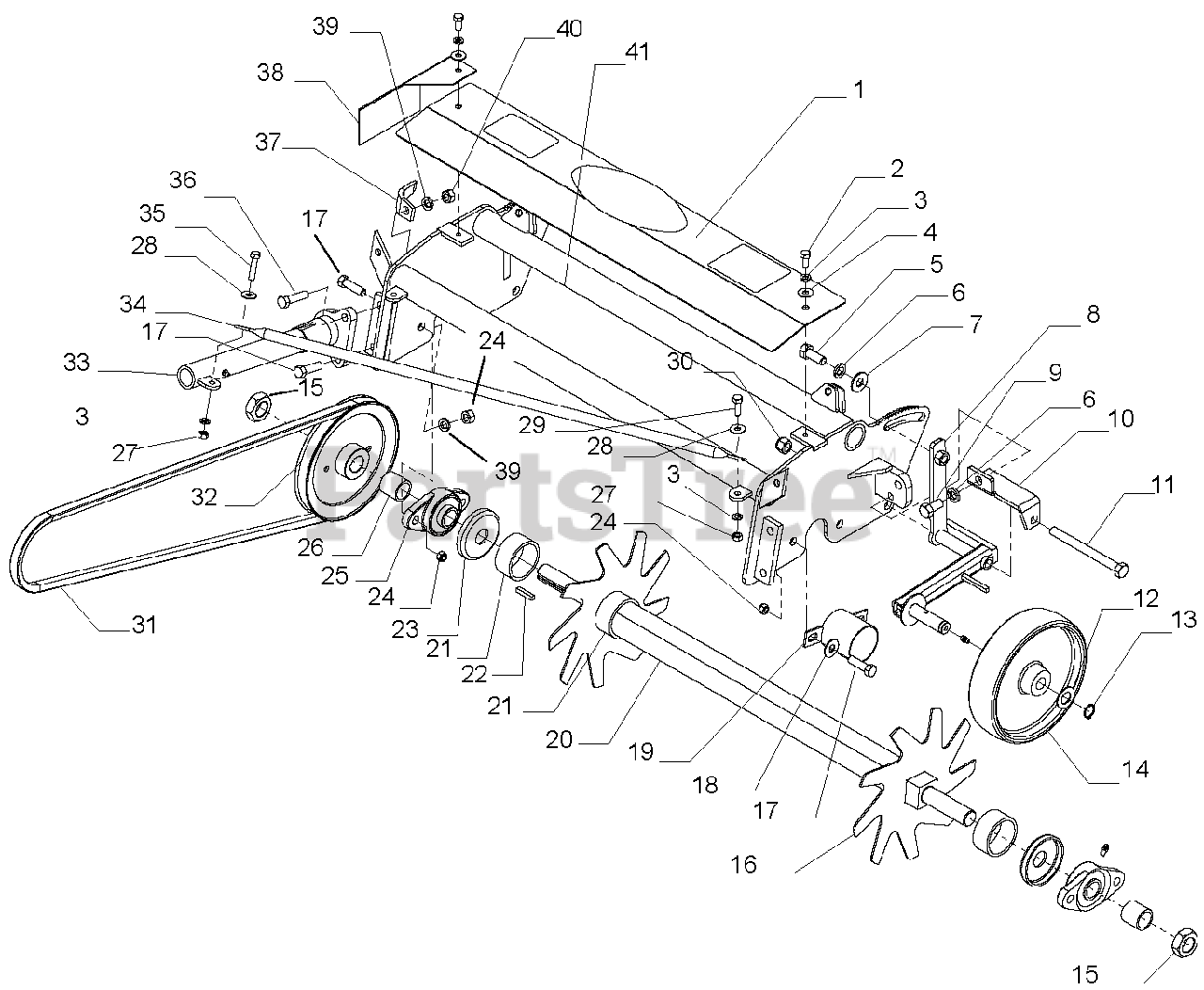

V-Cut Head Parts Diagram

  • Title

1

Gravely 02684000

Top Shield, #1, #2 & #3

$

$

Not available

Gravely 02684100

Top Shield, #4

$

$

Not available

Gravely 02684200

Top Shield, #5

$

$

Not available

2

Gravely 05900620

Cap Screw, Hex Head 5/16-18 x 3/4

$

$

Not available

3

Gravely 06300029

Washer, Lock 5/16 CP

$

$

Not available

4

Gravely 06400419

Washer, Flat 5/16 USS CP

$

$

Not available

5

Gravely 05900925

Cap Screw, Hex Head 1/2-13 x 1-1/4 CP

$

$

Not available

6

Gravely 06300028

Washer, Lock 1/2 CP

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 06400416

Washer, Flat 1/2 SAE ZP

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 02691900

Wheel Pivot Arm Weldment, LH

$

$

Not available

Gravely 02691400

Wheel Pivot Arm Weldment, RH

$

$

Not available

9

Gravely 05900805

Cap Screw, Hex Head 1/2-13 x 1

$

$

Not available

10

Gravely 02691000

Wheel Brace, LH

$

$

Not available

Gravely 02690900

Wheel Brace, RH

$

$

Not available

11

Gravely 05900815

Cap Screw, Hex Head 1/2-13 x 5-1/2 CP

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 06400633

Special Washer, Wheel

$

$

Not available

13

Gravely 05700117

Snap Ring, External 3/4

$

$

Not available

14

Gravely 07100534

Wheel, 8.00" OD x 2"

$

$

Not available

15

Gravely 02117200

Jam nut, 1-14 NF

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 02095700

Dynablade, 9T 10" 12 Gauge

$

$

Not available

17

Gravely 05900638

Cap Screw, Hex Head 7/16-14 x 1-1/2 CP

$

$

Not available

18

Gravely 06400533

Washer, Flat 7/16 SAE ZP

$

$

Not available

19

Gravely 02563900

Shaft Shield Weldment

$

$

Not available

20

Gravely 02690800

Blade Shaft

$

$

Not available

21

Gravely 02562300

Spacer, Blade

$

$

Not available

22

Gravely 06600112

Key, 1/4 x 1/4 x 1-1/4

$

$

Not available

23

Gravely 06400632

Washer, Shaft

$

$

Not available

24

Gravely 06500520

Nut, Hex 7/16-14 Nyloc CP

$

$

Not available

25

Gravely 05400433

Bearing, 2 Bolt Flange

$

$

Not available

26

Gravely 07300411

Spacer, Pulley

$

$

Not available

27

Gravely 06500428

Nut, Hex 5/16-18 CP

$

$

Not available

28

Gravely 06400509

Washer, Flat 5/16 SAE Hard YZ
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 05900621

Cap Screw, Hex Head 5/16-18 x 1

$

$

Not available

30

Gravely 06500510

Nut, Hex 1/2-13 Nyloc CP

$

$

Not available

31

Gravely 07200402

V-Belt, BX 68

$

$

Not available

32

Gravely 07300410

Pulley, Verticutter Reel

$

$

Not available

33

Gravely 02690000

Telescoping Arm

$

$

Not available

34

Gravely 02549800

Stay Rod Stabilizer

$

$

Not available

35

Gravely 05900738

Cap Screw, Hex Head 5/16-18 x 1-1/2

$

$

Not available

36

Gravely 05900626

Cap Screw, Hex Head 7/16-14 x 1-3/4

$

$

Not available

37

Gravely 07300336

Pulley Scraper, RH

$

$

Not available

Gravely 07300337

Pulley Scraper, LH

$

$

Not available

38

Gravely 07300412

Pulley Guard, RH

$

$

Not available

Gravely 07300413

Pulley Guard, LH

$

$

Not available

39

Gravely 06300031

Lockwasher, 7/16 CP

$

$

Not available

40

Gravely 06500611

Nut, Hex 7/16 CP

$

$

Not available

41

Gravely 02692300

Frame Weldment, #1, #2 & #3

$

$

Not available
