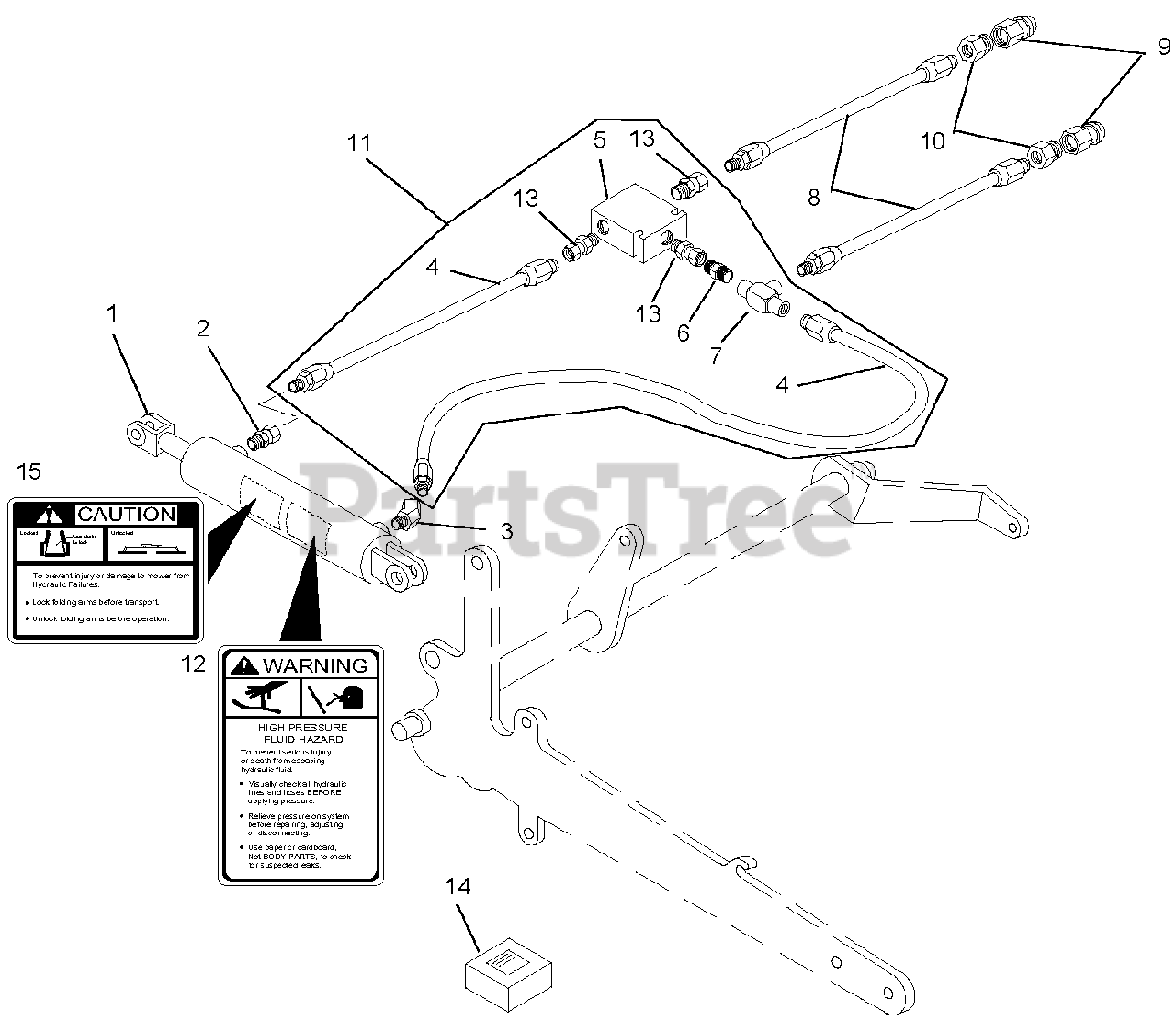

895408 (TVM-5130) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) Hydraulic System Parts Diagram

Tow-Behind Vertical Mower Attachment

Hydraulic System Parts Diagram

  • Title
1

Gravely 07001007

Cylinder, Hydraulic

$

$

Not available

2

Gravely 07001005

Adapter .25 FNPT x .25 MNPT

$

$

Not available

3

Gravely 07001006

Adapter .25 FNPT x .25 MNPT

$

$

Not available

4

Gravely 07001002

Adapter .25 FNPT x .25 MNPT 45-Degree

$

$

Not available

5

Gravely 02370500

Check Valve

$

$

Not available

6

Gravely 02370900

Nipple .25 MNPT

$

$

Not available

7

Gravely 02370800

Tee .25 FNPT

$

$

Not available

8

Gravely 07001004

Hose Assembly, 120-Inch

$

$

Not available

9

Gravely 02542000

Coupler, .50 FNPT QD Male

$

$

Not available

10

Gravely 07001003

Adapter, .50 MNPT x .25 FNPT

$

$

Not available

11

Gravely 02371000

Check Valve Assembly (Includes Items 4, 5, 6, 7, and 13)

Note: (Includes Items 4, 5, 6, 7, and 13)

$

$

Not available

12

Gravely 02541400

Decal, Caution

$

$

Not available

13

Gravely 07001416

Adapter .25 FNPT x 6 ORB

$

$

Not available

14

Gravely 05600310

Seal Kit (for 07001007 Hydraulic Cylinder)

Note: (for 07001007 Hydraulic Cylinder)

$

$

Not available

15

Gravely 02499600

Decal, Warning

$

$

Not available
