895407 (TVM-3077) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) Wheel, Axle And Hub Assembly Parts Diagram

Tow-Behind Vertical Mower Attachment

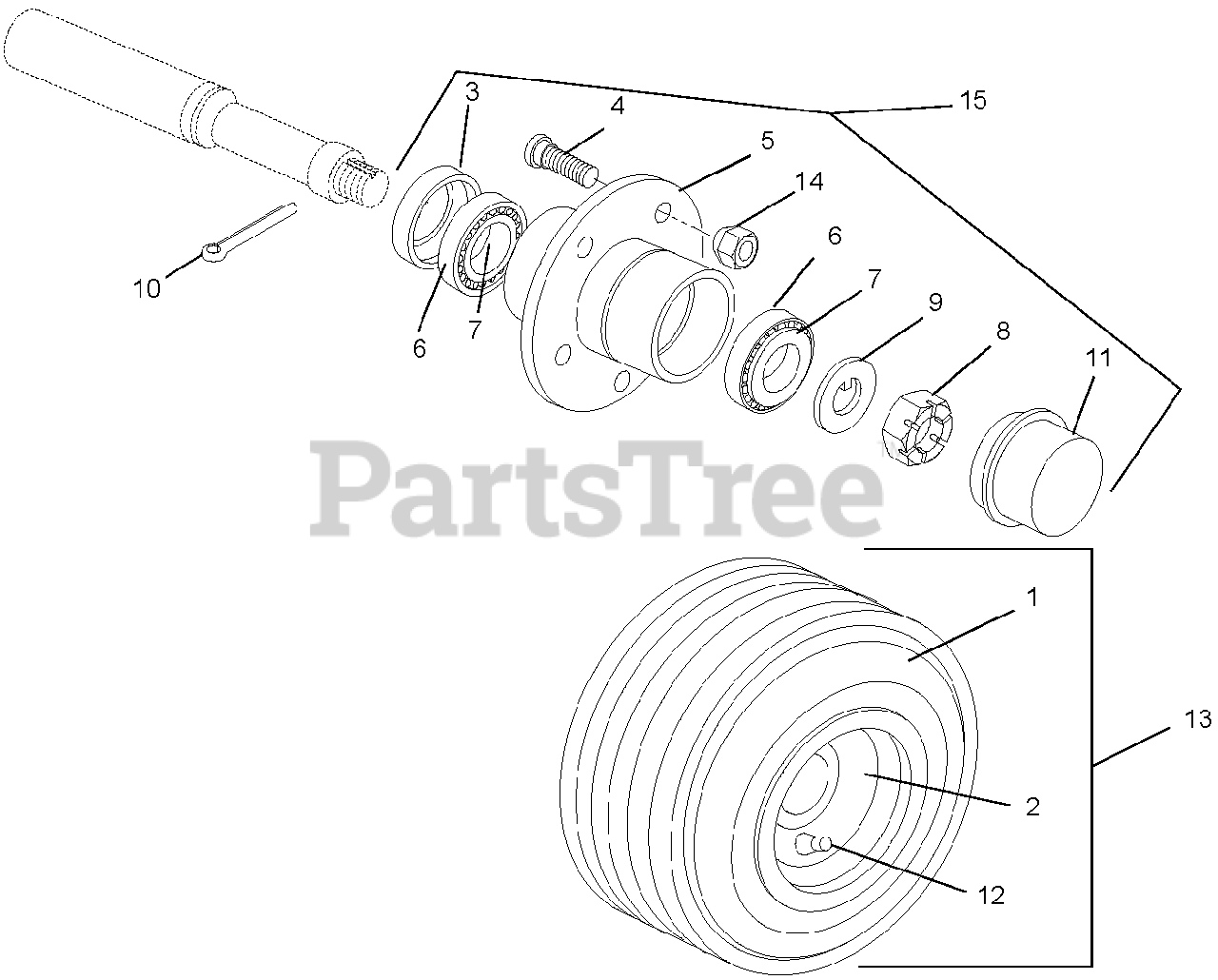

Wheel, Axle And Hub Assembly Parts Diagram

  • Title
1

Gravely 07100601

Tire 18 x 8.5 x 8

$

$

Not available

2

Gravely 07100540

Wheel, 8 x 7, 5-Hole

$

$

Not available

$

$

Not available

4

Gravely 07100631

Bolt, Lug .50-20 x 1.875

$

$

Not available

5

Gravely 07100602

Hub, Includes Bolts and Bearing Cup

$

$

Not available

6

Gravely 05400318

Cup, Bearing 1.9687 O.D. x .420

$

$

Not available

7

Gravely 05400320

Cone, Bearing 1.000 Bore x .5

$

$

Not available

8

Gravely 06500420

Nut, Hex .75-16 CP Castellated

$6.49

$

Usually ships in 4-12 days

0

9

Gravely 06400614

Washer, Axle Left

$

$

Not available

10

Gravely 06700115

Pin, Cotter .125 x 1.25

$

$

Not available

11

Gravely 07100603

Cap, Hub

$

$

Not available

12

Gravely 07100729

Valve Stem, TR-412

$

$

Not available

13

Gravely 07100531

Tire And Wheel Assembly 18 x 8.5 x 8

$

$

Not available

14

Gravely 06500427

Nut, Hex Hub .50-20 UNF

$

$

Not available

15

Gravely 07100529

Hub Assembly, 5-Bolt

$122.99

$

Usually ships in 4-12 days

0
