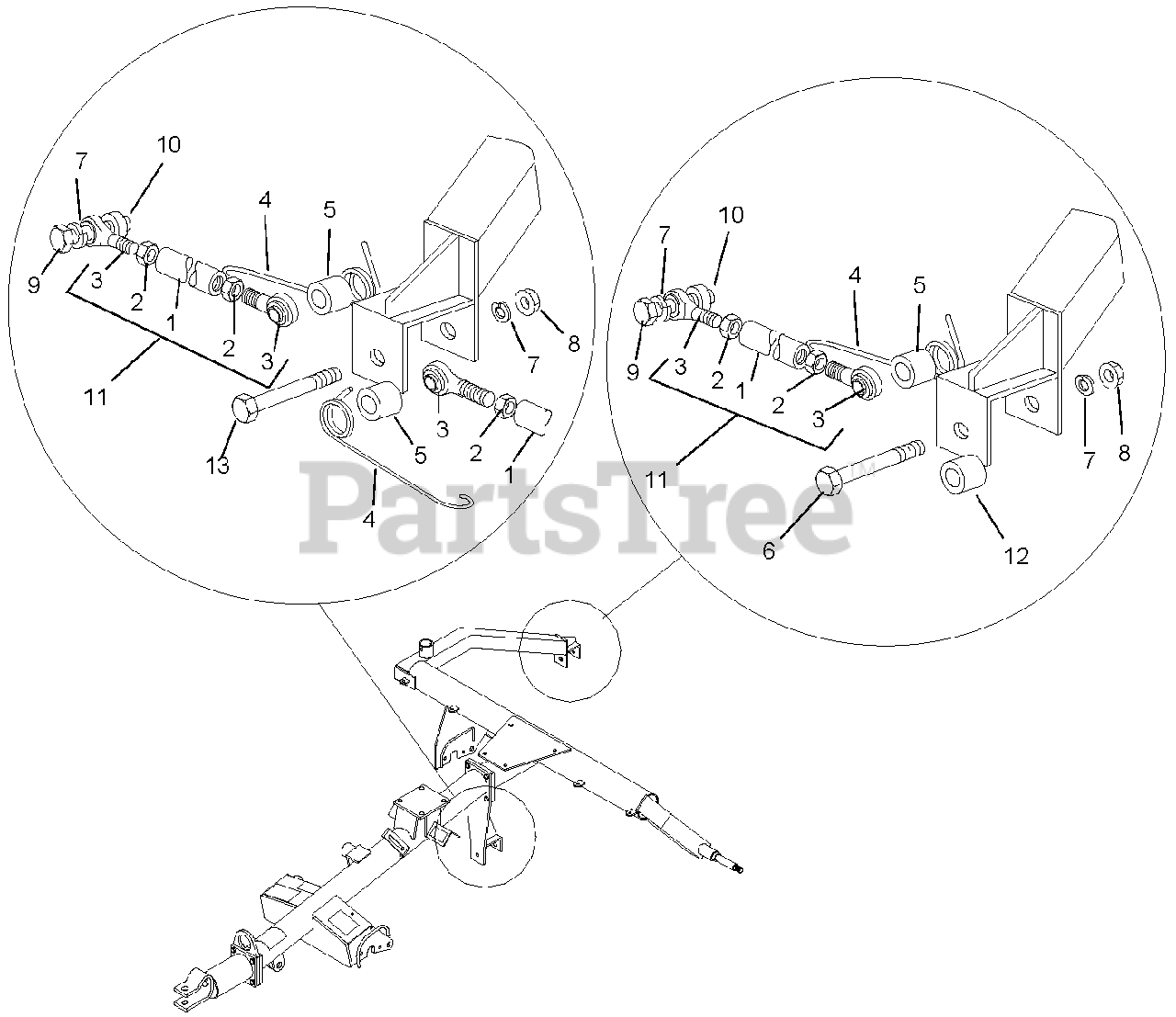

895407 (TVM-3077) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) Single/Dual Compensator And Tie Rod Assemblies Parts Diagram

Tow-Behind Vertical Mower Attachment

Single/Dual Compensator And Tie Rod Assemblies Parts Diagram

  • Title
1

Gravely 02369200

Tie Rod, Rear

$

$

Not available

2

Gravely 06500532

Nut, Hex .625-18 Right-Hand Thread

$

$

Not available

Gravely 06500531

Nut, Hex .625-18 Left-Hand Thread

$

$

Not available

3

Gravely 07000936

Rod End, .625 Bore, Left-Hand Thread

$59.99

$

Usually ships in 4-12 days

0

Gravely 07000935

Rod End, .625 Bore, Right-Hand Thread

$

$

Not available

4

Gravely 02541800

Spring, Compensator .25

$

$

Not available

5

Gravely 02374400

Spacer, Compensator Long

$

$

Not available

6

Gravely 05900930

Cap Screw, Hex Head .625-11 x 3.75

$

$

Not available

7

Gravely 06300038

Washer, Lock .625

$

$

Not available

8

Gravely 06500431

Nut, Hex .625-11

$

$

Not available

9

Gravely 05900826

Cap Screw, Hex Head .625-11 x 2

$

$

Not available

10

$

$

Not available

11

Gravely 02369300

Tie Rod Assembly, Short

$

$

Not available

12

Gravely 02374500

Spacer, Compensator Short

$

$

Not available

13

Gravely 05901025

Cap Screw, Hex Head .625-11 x 4.75

$

$

Not available
