895407 (TVM-3077) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) Gearbox & V-Belts Parts Diagram

Tow-Behind Vertical Mower Attachment

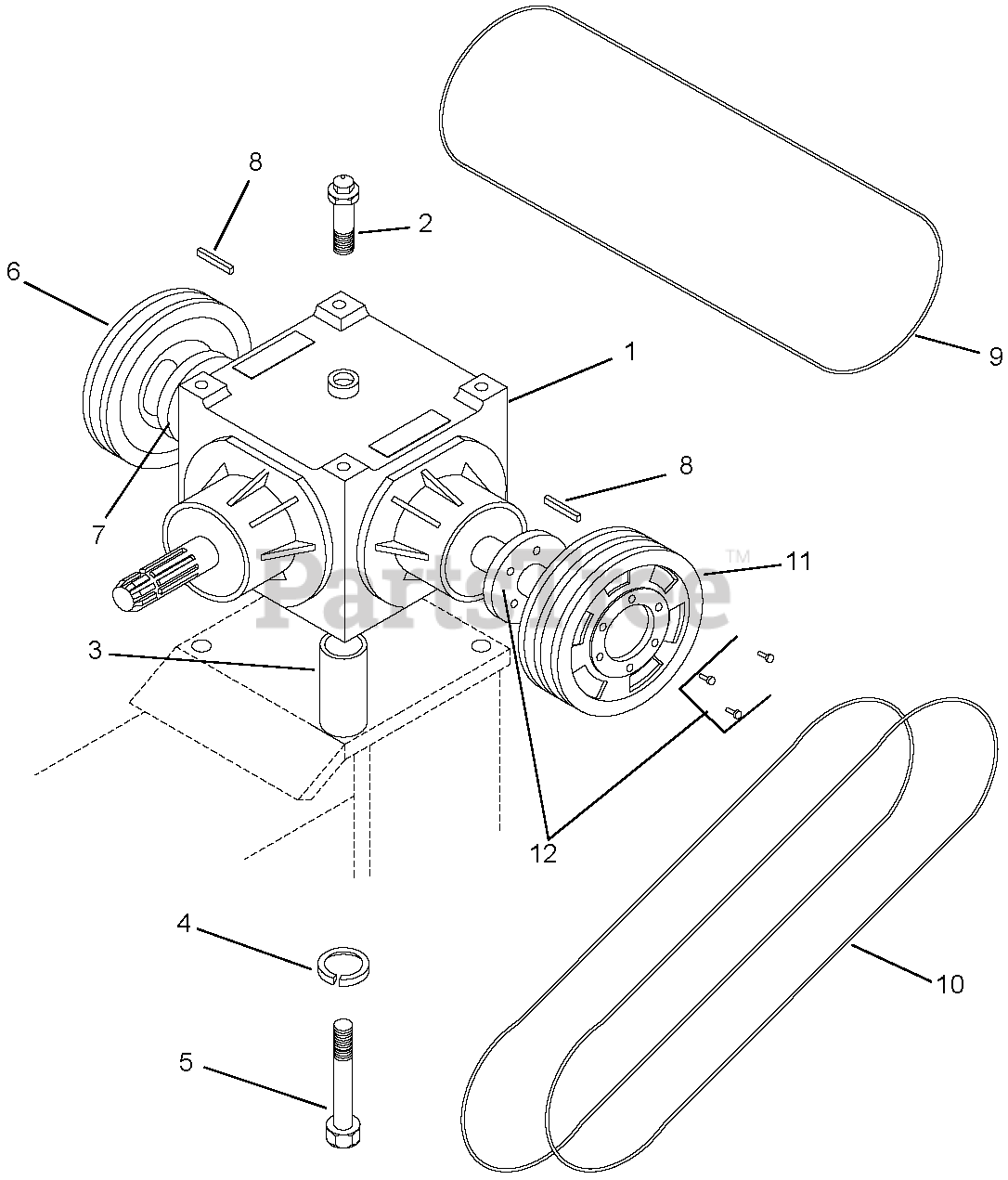

Gearbox & V-Belts Parts Diagram

  • Title

1

Gravely 02295000

Gearbox Assembly

$

$

Not available

2

Gravely 02875000

Plug, Valve Vent

$

$

Not available

3

Gravely 02374600

Spacer, Gearbox Mounting

$

$

Not available

4

Gravely 06300028

Washer, Lock .50

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 05900823

Cap Screw, Hex Head .50-13 x 3

$

$

Not available

6

Gravely 07300331

Pulley, 1-Belt 7.0 PD

$

$

Not available

7

Gravely 05500632

Bushing 1.125

$

$

Not available

8

Gravely 06600139

Key .25 x .25 x 2.00

$

$

Not available

9

Gravely 07200403

V-Belt BX78

$

$

Not available

10

Gravely 07200404

V-Belt BX70

$

$

Not available

11

Gravely 07300330

Pulley, 2 Belt 7" Dia.

$

$

Not available

12

Gravely 0550631

Bushing, 1-1/8 SK

$

$

Not available
