895406 (TRM-719) - Gravely Tow-Behind Reel Mower Attachment (SN: 000101 & Above) V-Belt Guards Parts Diagram

Tow-Behind Reel Mower Attachment

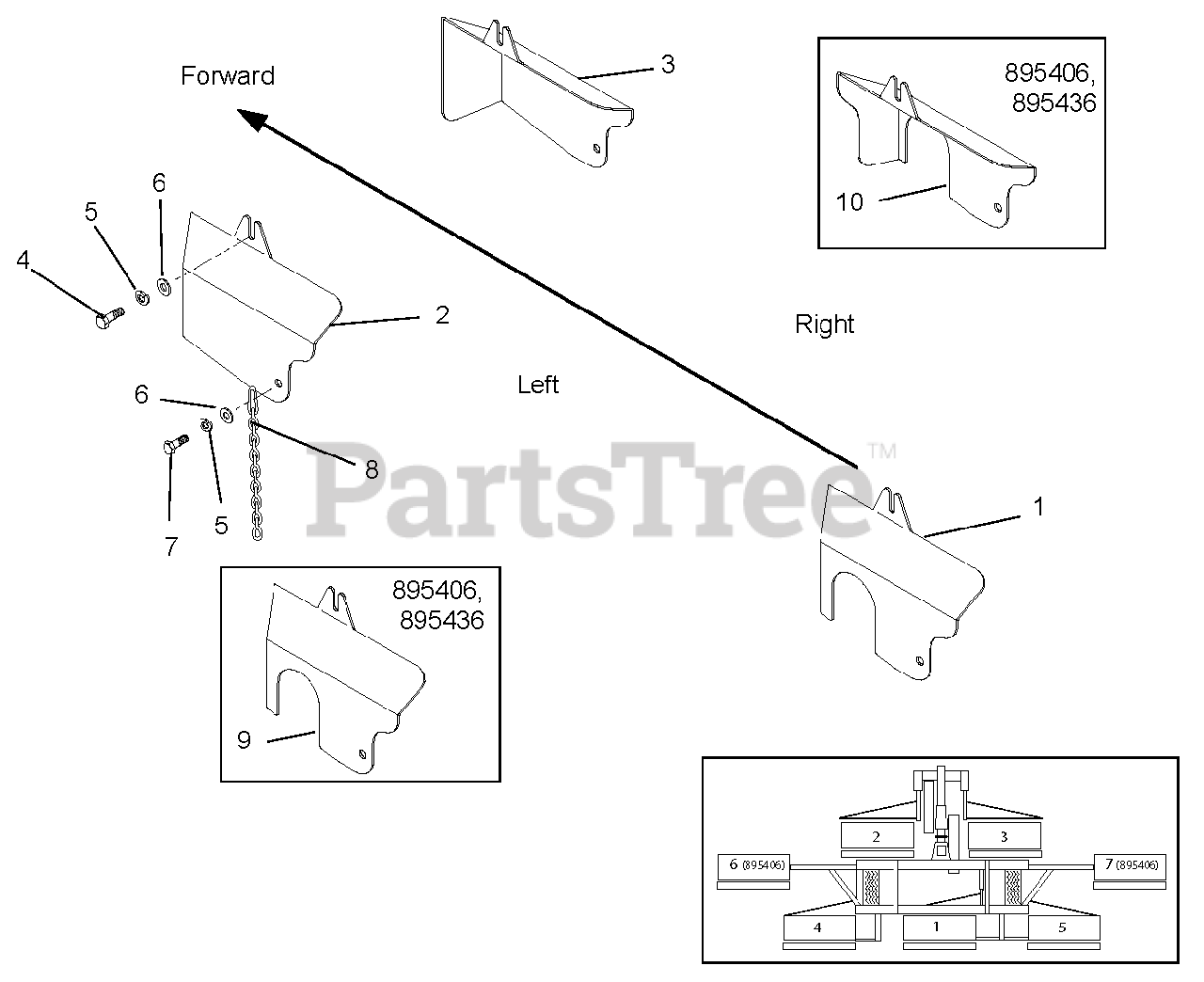

V-Belt Guards Parts Diagram

  • Title
1

Gravely 02371651

Weldment, Belt Guard Center Rear – Unit 1

$

$

Not available

2

Gravely 02371851

Weldment, Belt Guard Outside Left – Units 2 & 4 (895405, 435), Unit 2 (895406, 436)

Note: (895405, 435), Unit 2 (895406, 436)

$

$

Not available

3

Gravely 02371951

Weldment, Belt Guard Outside Right – Units 3 & 5 (895435), Unit 3 (895436)

Note: (895435), Unit 3 (895436)

$

$

Not available

4

Gravely 05900620

Cap Screw, Hex Head .312 x .75

$

$

Not available

5

Gravely 06300029

Washer, Lock .312

$

$

Not available

6

Gravely 06400419

Washer, Flat .312

$

$

Not available

7

Gravely 05900702

Cap Screw .312-18 x 1.25

$

$

Not available

8

Gravely 02545100

Chain, 8-LInk

$

$

Not available

9

02373751

Weldment, Belt Guard Outside Left – Unit 4 (895406, 436 Only)

Note: (895406, 436 Only)

$

$

Not available

10

02373851

Weldment, Belt Guard Outside Right – Unit 5 (895406, 436 Only)

Note: (895406, 436 Only)

$

$

Not available
