895406 (TRM-719) - Gravely Tow-Behind Reel Mower Attachment (SN: 000101 & Above) Rollers and Roller Brackets Parts Diagram

Tow-Behind Reel Mower Attachment

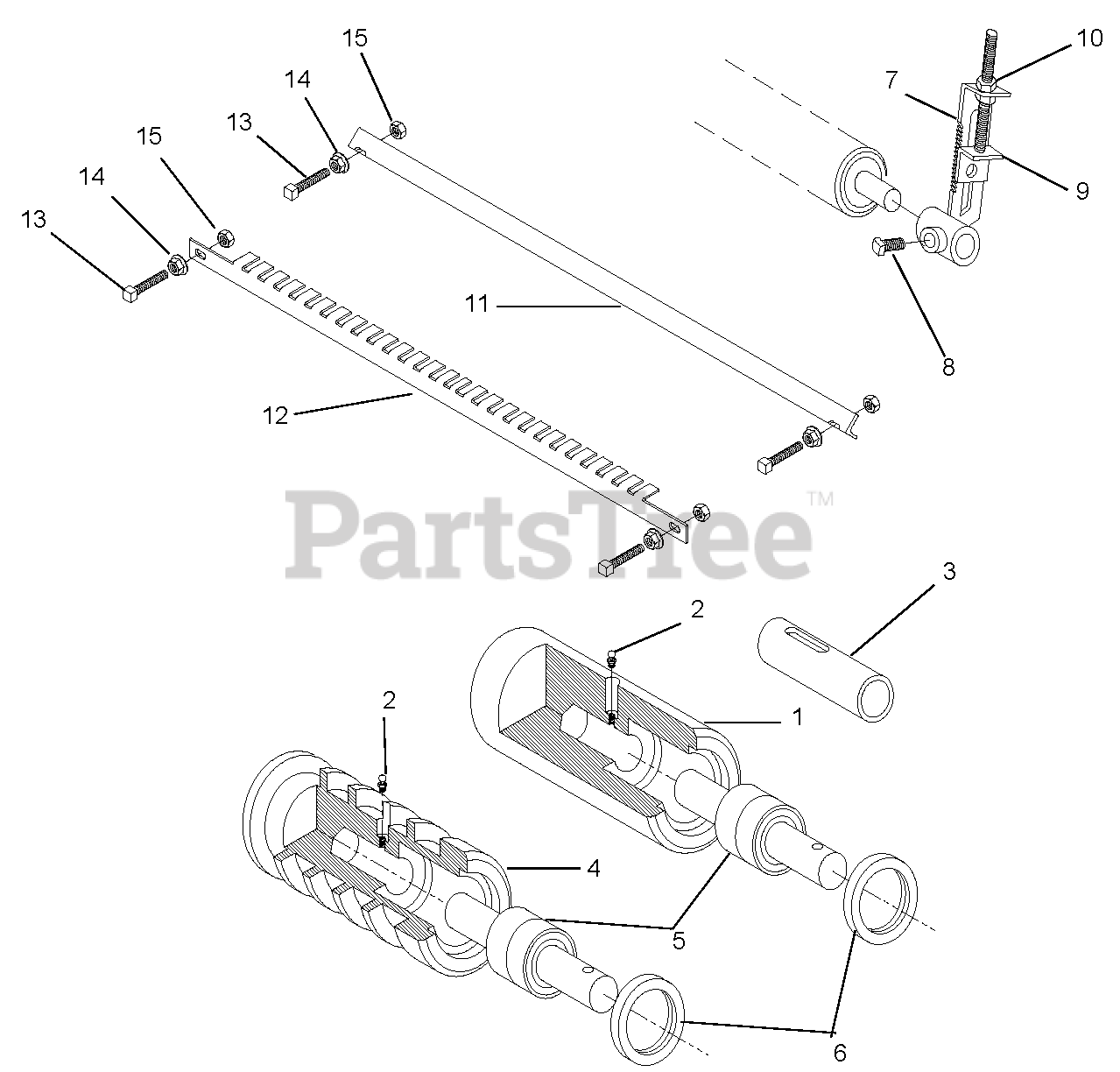

Rollers and Roller Brackets Parts Diagram

  • Title

1

Gravely 02690200

Roller (Only), Smooth Aluminum 3-Inch

Note: (Only), Smooth Aluminum 3-Inch

$

$

Not available

2

Gravely 07000916

Fitting, Grease

$

$

Not available

3

Gravely 05500633

Bushing, Adapter

$

$

Not available

4

Gravely 02687300

Roller (Only), Grooved Aluminum 3-Inch

Note: (Only), Grooved Aluminum 3-Inch

$

$

Not available

5

Gravely 05400603

Bearing Assembly, Integral Bearing

$

$

Not available

6

Gravely 05600416

Seal, Oil

$

$

Not available

7

Gravely 02546651

Weldment, Roller Bracket Right Hand

$

$

Not available

Gravely 02546051

Weldment, Roller Bracket Left Hand

$

$

Not available

8

Gravely 06000104

Set Screw, Square Head .375 x .75 SAE 8

$

$

Not available

9

Gravely 02546400

Weldment, Adjuster Roller

$

$

Not available

10

Gravely 06500610

Nut, Hex .375-165 CP

$

$

Not available

11

Gravely 02582851

Scraper, Smooth Roller

$

$

Not available

12

Gravely 02109751

Scraper, Grooved Roller

$

$

Not available

13

Gravely 06000122

Set Screw, Square Head Cup Point .375 x 2.25

$

$

Not available

14

Gravely 06500521

Nut, Hex Lock Serrated Flange .375-16

$

$

Not available

15

Gravely 06500432

Nut, Hex .375-24 NF

$

$

Not available
