895406 (TRM-719) - Gravely Tow-Behind Reel Mower Attachment (SN: 000101 & Above) Main Frame_TRM-7192 Parts Diagram

Tow-Behind Reel Mower Attachment

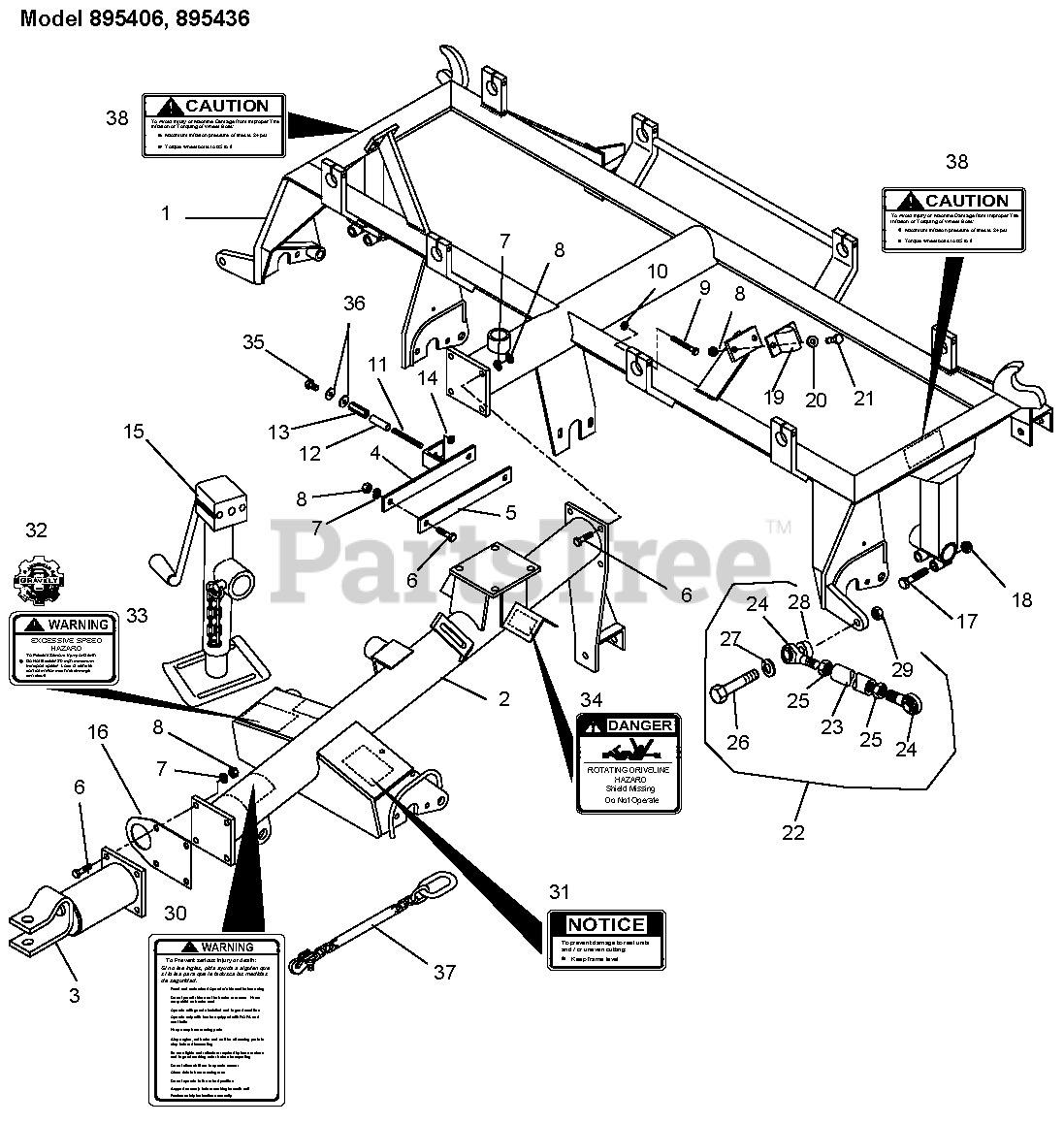

Main Frame_TRM-7192 Parts Diagram

  • Title

1

Gravely 02394553

Weldment, Mainframe

$

$

Not available

2

Gravely 02548300

Tongue Assembly

$

$

Not available

3

Gravely 02284153

Weldment, Clevis Hitch

$

$

Not available

4

Gravely 02367553

Weldment, Tongue Brace

$

$

Not available

5

Gravely 02373953

Brace, Tongue Left Hand

$

$

Not available

6

Gravely 05900703

Cap Screw, Hex Head .50-13 x 1.5

$

$

Not available

7

Gravely 06300028

Washer, Lock .50

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 06500612

Nut, Hex .50

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 05900727

Cap Screw, Hex Head .375-16 x 3

$

$

Not available

10

Gravely 06500517

Nut, Hex .375-16 CP Nylock

$

$

Not available

11

Gravely 06000136

Stud, Belt Guard

$

$

Not available

12

Gravely 06400634

Spacer

$

$

Not available

13

Gravely 06500516

Nut, Hex Coupler .375-16

$

$

Not available

14

Gravely 02091800

Nut, Jam .375-16

$

$

Not available

15

Gravely 05901115

Jack, Screw 5000 lb.

$

$

Not available

16

Gravely 07093853

Holder, Hydraulic Hose

$

$

Not available

17

Gravely 05900728

Cap Screw, Hex Head .50-13 x 2.5

$

$

Not available

18

Gravely 06500510

Nut, Hex .50-13 Nylock

$

$

Not available

19

Gravely 02389600

Bumper, Rubber

$

$

Not available

20

Gravely 06400422

Washer, Flat .50

$3.49

$

Usually ships in 4-12 days

0

21

Gravely 05900805

Cap Screw, Hex Head .50-13 x 1

$

$

Not available

22

Gravely 02366300

Tie Rod Assembly, Outer

$

$

Not available

23

Gravely 02366200

Tie Rod, Outer

$

$

Not available

24

Gravely 07000936

Rod End, .625 Bore, Right Hand Thread

$59.99

$

Usually ships in 4-12 days

0

Gravely 07000935

Rod End, .625 Bore, Left Hand Thread

$

$

Not available

25

Gravely 06500532

Nut, Hex .625-18

$

$

Not available

Gravely 06500531

Nut, Hex .625-18 Left Hand

$

$

Not available

26

Gravely 05900919

Cap Screw, Hex Head .625-11 x 2.5

$

$

Not available

27

Gravely 06300038

Washer, Lock .625

$

$

Not available

28

Gravely 06400618

Spacer

$

$

Not available

29

Gravely 06500431

Nut, Hex .625-11

$

$

Not available

30

Gravely 02499800

Decal, Warning

$

$

Not available

31

Gravely 02541600

Decal, Notice

$

$

Not available

32

Gravely 08000507

Decal, Gravely Heritage Small

$28.99

$

Usually ships in 4-12 days

0

33

Gravely 02400000

Decal, Warning

$

$

Not available

34

Gravely 02394800

Decal, Danger

$

$

Not available

35

Gravely 05900731

Cap Screw, Hex Head .375-16 x .75

$3.99

$

Usually ships in 4-12 days

0

36

Gravely 06400421

Washer, Flat .375

$

$

Not available

37

Gravely 02892100

Chain, Safety Tow

$

$

Not available

38

Gravely 02541100

Decal, Caution

$

$

Not available
