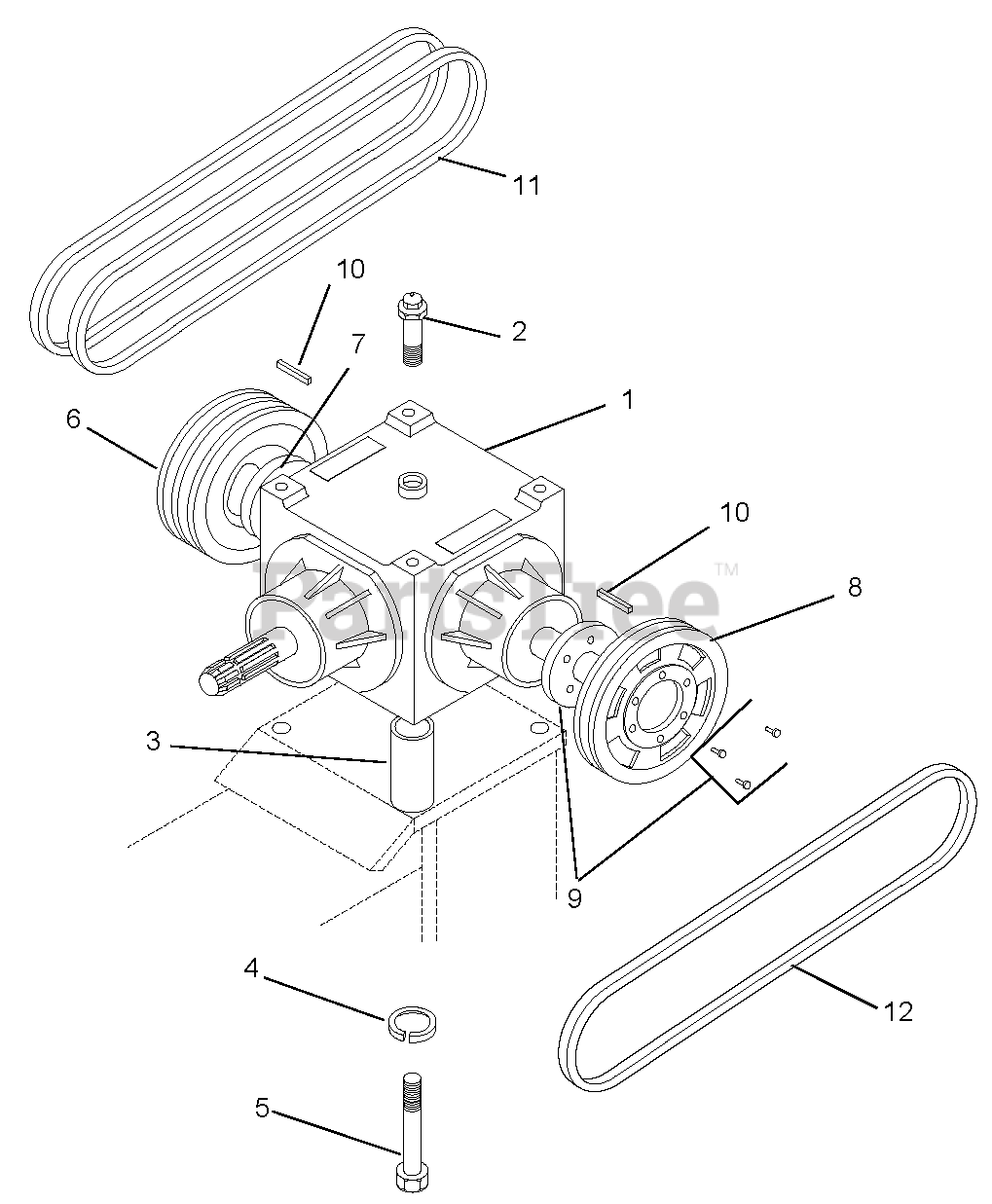

895406 (TRM-719) - Gravely Tow-Behind Reel Mower Attachment (SN: 000101 & Above) Gearbox & V-Belts_Units 6-7 Parts Diagram

Tow-Behind Reel Mower Attachment

Gearbox & V-Belts_Units 6-7 Parts Diagram

  • Title
1

Gravely 02542451

Gearbox Assembly

$

$

Not available

2

Gravely 02559000

Plug, Oil Level

$

$

Not available

3

Gravely 02374651

Spacer, Gearbox Mounting

$

$

Not available

4

Gravely 06300028

Washer, Lock .50

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 05900823

Cap Screw, Hex Head .50-13 x 3

$

$

Not available

6

Gravely 07333051

Pulley, 2-Belt

$

$

Not available

7

Gravely 05563151

Bushing 1.125 (SK)

Note: (SK)

$

$

Not available

8

Gravely 07333151

Pulley, 1-Belt

$

$

Not available

9

Gravely 05563251

Bushing 1.125 (SDS)

Note: (SDS)

$

$

Not available

10

Gravely 06600139

Key .25 x .25 x 2.00

$

$

Not available

11

Gravely 07200339

V-Belt, B78

$

$

Not available

12

Gravely 07200401

V-Belt, B70

$

$

Not available
